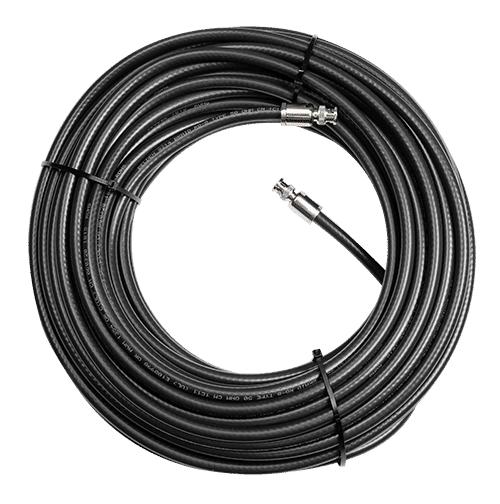

RG-8 50 Ohm Preassembled Coaxial Cable (Per ft.)
LA-390
Highlights
- Ordered in custom lengths
Overview
The LA-390 gives the right amount of cable for your FM/IR predesigned system. The cable comes with both BNC connectors attached to the desired length of RG-8 cable. 50 ft. (15.2 m) minimum order. Cable and connectors may be ordered separately with parts LA-113 and LA-128.Configurations
Architectural Specs
Line Drawing
Specifications
| Specifications | LA-390 | |
| Physical | Number of Coax | 1 |
| Number of conductors | 1 | |
| RG Type | 8/U | |
| AWG | 11 | |
| Stranding | 7 x 19 | |
| Conductor diameter | 0.12 in. (3 mm) | |
| Conductor material | Twisted bare copper | |
| Insulation diameter | 0.28 in. (7 mm) | |
| Shield material | braided bare copper | |
| Overall diameter | 0.39 in. (10 mm) | |
| Weight (per ft.) | 4 oz. (113 g) | |
| Specifications are subject to change without notification | ||
None
Used With
-
LA-82 6-Way RF Antenna Combiner
A passive device (no power supply needed) that takes six (6) incoming RF signals and combines them into one (1) outgoing antenna source.
-
LA-81 4-Way RF Antenna Combiner
A passive device (no power supply needed) that takes four (4) incoming RF signals and combines them into one (1) outgoing antenna source.
-
LA-80 2-Way RF Antenna Combiner
A passive device (no power supply needed) that takes two (2) incoming RF signals and combines them into one (1) outgoing antenna source.
-
LA-107 Ground Plane Remote Antenna (216 MHz)
Totally weatherproof ground plane antenna (216 MHz).
-
LA-122 Universal Antenna Kit (72 and 216 MHz)
A single solution for all your remote antenna needs.
-
LA-140 Stationary IR Radiator
The IR radiator/emitter packs high infrared power in a small and attractive design, with your choice of grey or white packaging.
None
None
FAQ
What is the warranty of the LA-390?
All accessories have a 90-day warranty.
