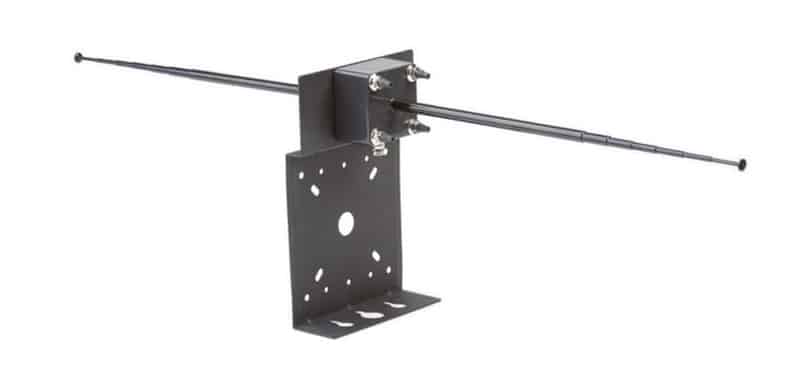

Universal Antenna Kit (72 and 216 MHz)
LA-122

Highlights

  • Includes both 72 MHz and 216 MHz antennas
  • Monopole and dipole antenna options included
  • Rigid and flexible radials are included
  • All hardware to mount on a wall, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling is included

Overview

A single solution for all your remote antenna needs. The kit contains antennas for both 72 MHz and 216 MHz systems. Monopole and dipole antenna options included. Mounting hardware enables you to attach the antenna to walls, on electrical boxes, on a horizontal surface (flat and inverse), inside a wall or ceiling. Kit contains components to configure several versions of an antenna and with 25 feet of coaxial cable.

Includes

LA-122 Universal Antenna Kit (72 and 216 MHz)
   (1) Grounding Base
   (1) Mounting Bracket
   (1) Wall/Electrical Box Mounting Plate
   (1) Shorting Plate
   (1) Antenna Module
   (1) 25 ft. (7.6 m) Coaxial Cable (terminated with BNC connectors on both ends)
   (2) Telescoping Antennae (72 MHz)
   (2) Telescoping Antennae (216 MHz)
   (2) Flexible Antenna (72 MHz)
   (2) Flexible Antenna (216 MHz)
   (4) Machine Screw (#8-32x3/4”)
   (2) Hex Kep Nuts
   (2) Fiber Washer
   (4) Machine Screw (#6-32x3/4”)
   (4) Tapping Screw (#8-1/2”)
   (4) Dry Anchors
Owner’s manual

Specifications

 SpecificationsLA-122 (72 MHz)LA-122 (216 MHz)
RFNumber of Capable Channels57 (17 wide band, 40 narrow band) 72 MHz57 (19 wide band, 38 narrow band) 216 MHz
Center Frequency73.500 MHz216.500 MHz
RF Frequency Range72.025 MHz - 75.975 MHz216.0125 MHz - 216.9875 MHz
Antenna GainUnity

PhysicalAntenna TypesMonopole and dipole
Dipole Verticle Clearance80 in. (203.2 cm)27 in. (68.6 cm)
Termination Connector TypeBNC
Mounting OptionsWall mount, dual and single electrical box, ceiling electrical box, horizontal surface mount (such as on top of a rack), ceiling/inverse mounting, flexible mounting in-wall or in ceiling and mast or conduit mount.
Mounting HardwareIncludes self-tapping sheet metal screws, drywall anchors, and all hardware required to mount to electrical boxes. Does not provide hardware required to mount to a mast (available at most hardware stores).
Mounting Bracket Dimensions4.5 in x 7.0 in x 2.5 in, (11cm x 18cm x 6.4cm), W x D x H
Mounting Plate Dimensions4.48 in x 4.55 in, (11.4cm x 11.6cm)
Weight4.4 lbs. (2.0 kg)
Shipping weight5.0 lbs. (2.27 kg)

Specifications are subject to change without notification
