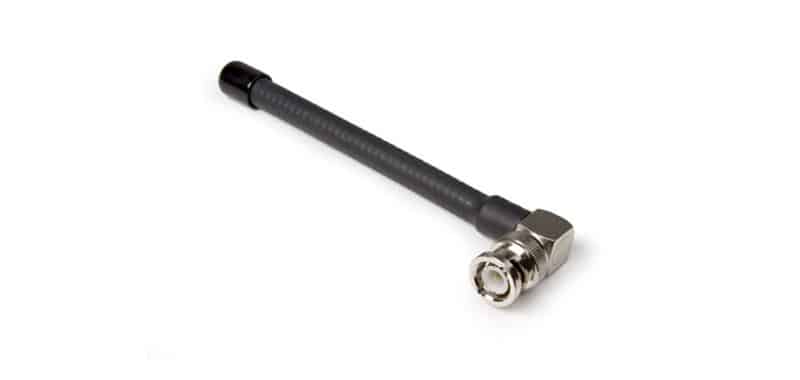

90 Degree Helical Antenna (216 MHz)

Item:LA-124 Price:$43.00MSRP

Designed to mount to the rear BNC antenna connector, the LA-124 antenna offers and outstanding coverage range up to 198m (650 ft.). The 90-degree antenna is compatible with the 216 MHz versions of our LT-800 transmitter, LR-100 receiver/amplifier, and the LR-600 receiver/speaker. The LA-124 can also be used to create a custom, remote antenna, such as a wall plate-mounted antenna.

This product is available through authorized resellers.

Request Quote

Includes

One (1) LA-124 90° Helical Antenna (216 MHz)

Highlights

  • Mounts with a BNC connector
  • Compatible with 216 MHz equipment including our LT-800 transmitter and LR-100 receiver
  • Range up to 183 m / 600 ft.

Specs

+Interconnections

Connector/sBNC

+RF

Frequency Range216.025 - 216.950 MHz
Number of Channels57 (19 wide, 38 narrow)
Typical RangeRange up to 183 m / 600 ft.

+Physical

Length4.5 in. (11.4 cm)
ColorDark Gray
Shipping Weight1 lb. (0.5 kg)
Diameter0.44 in. (1.10 cm)
Weight1 oz. (28 g)

Accessories

How-To's

FAQs

+What is the warranty on the LA-124?

All accessories have a 90-day warranty
