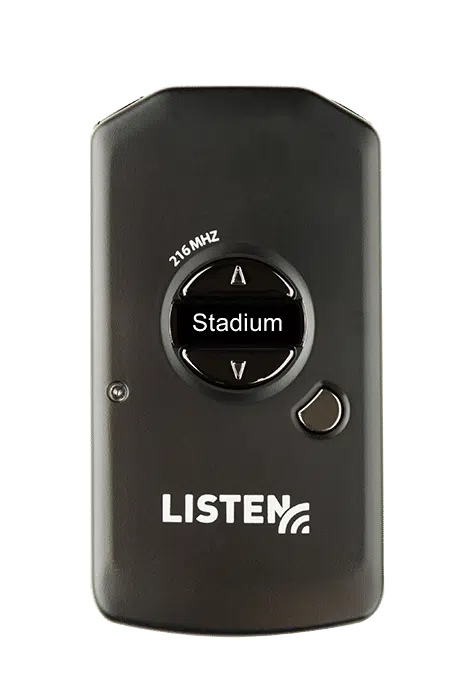

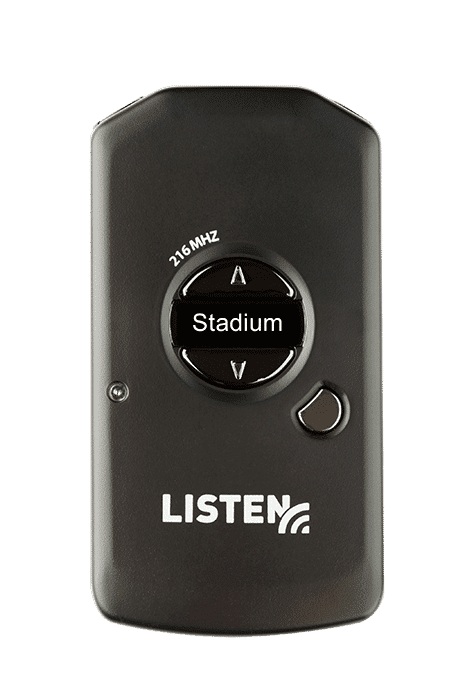

Advanced Intelligent DSP RF Receiver (216 MHz)

Item:LR-5200-216

The LR-5200-216 RF receiver from Listen Technologies is an outstanding choice for any venue that needs to provide assistive listening users with high-performance audio in a compact device. Featuring best-in-class pickup and reduced noise, the LR-5200-216 gives theaters, lecture halls, houses of worship, and other venues an affordable, simple solution when adding or expanding an assistive listening system.

The built-in rechargeable battery technology makes the LR-5200-216 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple with free iDSP software firmware updates, setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-216 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From classrooms to conferences, businesses to banquet halls, and more, the LR-5200-216 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) LR-5200-216 Advanced Intelligent DSP RF Receiver (216 MHz)*



*The LR-5200-216 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • High-performance, ultra-sensitive RF personal listening receiver offering the best reception and lowest noise in its class
  • Compact design—the smallest of its kind—makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more

Also Needed

Specs

+Audio

System Distortion< 2% total harmonic distortion (THD) at 80% deviation
Output/sTwo (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
System Frequency Response50 Hz - 15 kHz (±3 dB)
System Signal to Noise RatioSQ enabled 70 dB, SQ disabled 50 dB

+Controls

User ControlsPower, up/down volume, Listen button for end user channel selection
ProgrammingVia software and USB port
Set-up ControlsPress and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

+Indicators

LEDsWhite, illuminated when unit is on, flashes when batteries are low or to indicate charging, solid when fully charged
DisplayChannel designation, battery level, unit number, charging status

+RF

Frequency Range216.0125 - 216.9875MHz
Number of Channels19 wide band, 38 narrow band
Sensitivity.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy± .005% stability 32 to 122 ºF (0 to 50 ºC)
SquelchProgrammable in 20 steps, automatic on loss of RF signal
Antenna TypeUses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

+Power

Power SupplyMicro USB connector, 5 V, 500 mA
Battery TypeLithium-ion
Battery Life8 Hours of continuous use
Battery Charging TimeFully charged in 2 Hours

+Physical

ColorDark Grey
Unit Weight with Batteries2.4 oz (68.1 g)
Shipping Weight3.2 oz (90.8 g) with 16 oz (454 g) minimum
Dimensions (H x W x D)3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
Unit Weight1.6 oz (45.4 g)
Dimensions with Belt Clip3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

+Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage(-)4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC Part 15, Part 90, Industry Canada, RoHS

FAQs

+What is the difference between the LR-4200 and the LR-5200?

The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+How many LR-5200 receivers can I use in a system?

As many as you need, the number is endless.

+How long does it take to fully charge the LR-5200?

It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.

+What type of battery technology does the LR-5200 use?

The LR-5200 uses a non-proprietary Lithium Ion battery.

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+How long will the LR-5200 run on a fully charged battery?

The LR-5200 will run continuously for 8 hours on a fully charged battery.

+What is the warranty on the Lithium-ion battery?

The Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty
