This product is discontinued and the information here is only for reference. It has been replaced by the LS-31-072

Listen Essentials Level III Stationary RF System (72 MHz) (Discontinued)

Item:LS-43-072
Discontinued

The Listen Essentials Level III Stationary RF System has everything you need for an easy system to specify, install, operate, and meet legislative requirements for assistive listening. Includes NiMH batteries and a charging/carrying case ideal for managing the storage and dispensing of receivers to listeners. Great for larger venues to deliver an optimum range of up to 305 m (1,000 ft.) is needed. Universal inputs on the transmitter ensure venues can use the LS-43 with their preferred audio source; mixer, microphone, iPod or CD. Installation is quick and easy, and with features like three (3) frequencies and one step digital tuning, the receivers won’t drift off-channel. Available in 72 MHz only.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

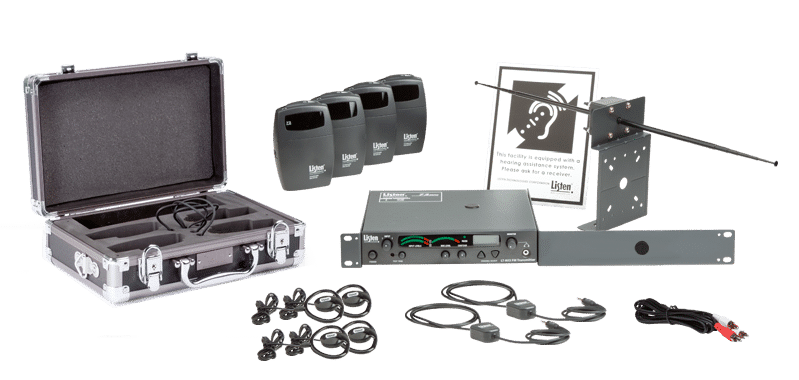

Includes

One (1) LT-803-072-01 3-Channel RF Transmitter (72 MHz)
One (1) LA-122 Universal Antenna Kit (72 MHz and 216 MHz)
One (1) LA-326 Universal Rack Mounting Kit
Four (4) LR-200-072 Standard 3-Channel RF Receiver (72 MHz)
Four (4) LA-164 Ear Speaker
Two (2) LA-166 Neck Loop
One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)
Four (4) LA-362 Rechargeable AA NiMH Batteries (2)
One (1) LA-317-01 4-Unit Portable RF Product Charging/Carrying Case
One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Cost-effective solution for meeting your installed assistive listening needs
  • Three (3) frequencies make it simple to install, manage and use
  • NiMH batteries and a charging/carrying case make it ideal for managing the storage and dispensing of receivers
  • 100 % Digital – Listen receivers are digitally-tuned so the transmission won’t drift
  • Long transmission range ensures coverage for the entire venue

Also Needed

Specs

+Physical

Shipping Weight29.0 (12.6)

Accessories

How-To's

FAQs

+Can I purchase additional LR-200-072 receivers for my LS-43-072 system?

Yes! Order as many as needed. The additional receivers will need an earphone (LA-164) or any other Listen earphones and batteries before being used.

+Can Listen's other 72 MHz receivers (LR-500-072, LR-400-072, and LR-300-072) be used with the LS-43-072 system?

Yes. For best results, be sure the SQ function (Super Quiet) is turned off on any of the other receivers. Also, be sure to tune the receiver to the correct channel being used. All of Listen's receivers (aside from the LR-200-072) can SEEK to find the best local 72-75 MHz transmission.

+What are the differences between the LR-200-072 and other Listen receivers?

The LR-200-072 offers three (3) frequencies and can be changed inside the door of the receiver via a switch. The LR-200-072 does not have an LCD screen, the ability to SEEK for open frequencies, SQ (Super Quiet), squelch or programmability. Also, the Signal to Noise is 62 dB compared to 80 dB on Listen's other receivers.

+What is the transmission range of the LS-43-072 system?

Up to 305 m (1,000 ft.) using other remote antenna options.

+What is the battery life of the LR-200-072?

120 hours alkaline. 75 hours NiMH

+What are the ADA changes related to assistive listening systems?

Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.
