Listen iDSP Prime Level II Stationary RF System (216 MHz)

Item:LS-54-216

Configured with permanent installations in mind, the LS-54 Stationary RF System comes with everything needed to immediately integrate and offer high-quality assistive listening while meeting compliance requirements.

Beginning with the LT-800-216 Stationary RF Transmitter and LA-122 Universal Antenna Kit, the system allows you to configure and rack mount the antenna ideal for your system and setup.

Four of our intelligent LR-4200-216 iDSP Receivers are included as well, along with four universal ear speakers, two intelligent neck loops/lanyards, a four-port USB charger, RCA cable, and a notification signage kit. The result is a complete assistive listening system that provides outstanding audio performance and immediate compliance for your business or venue.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

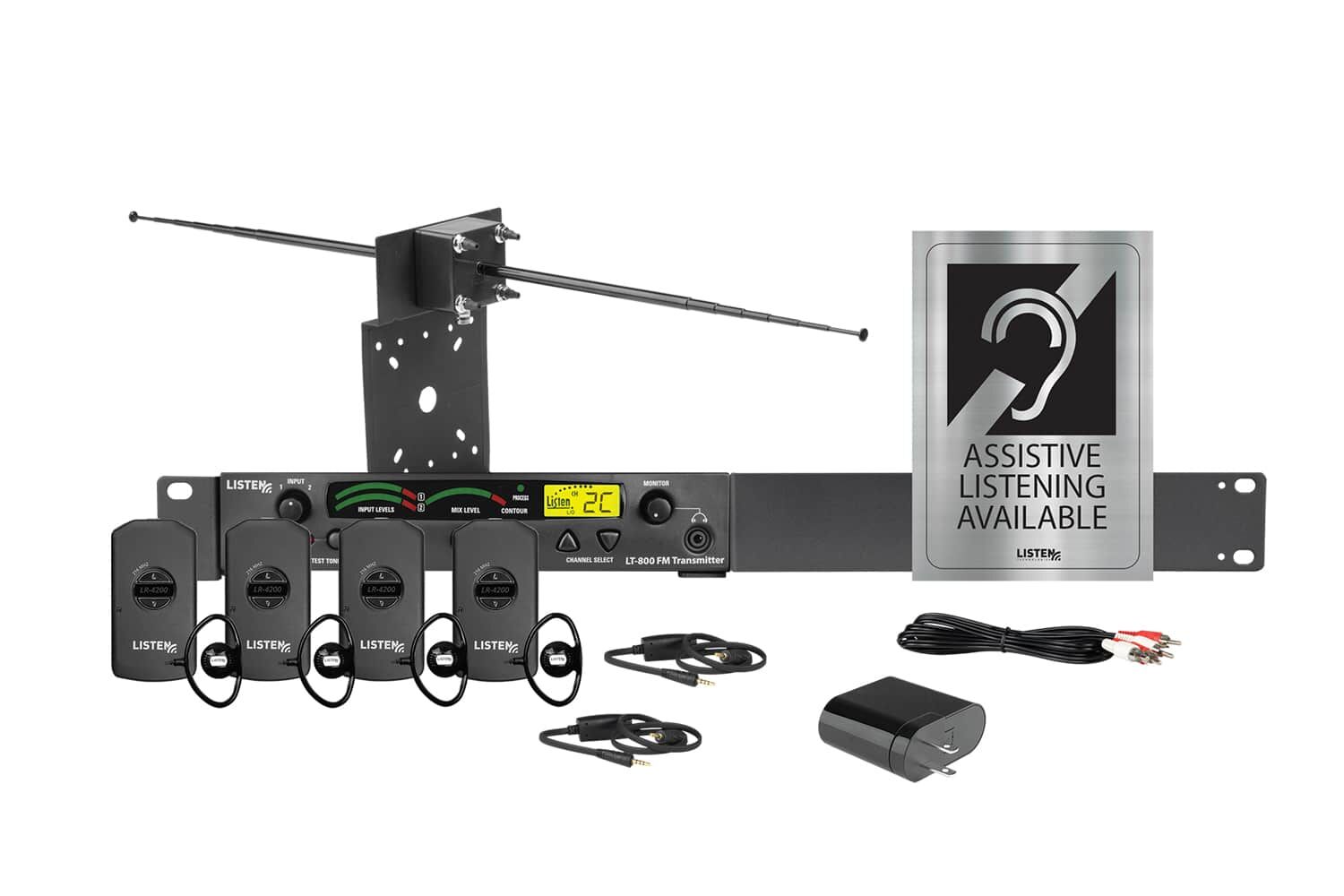

Includes

  • One (1) LT-800-216-01 Stationary RF Transmitter (216 MHz)
  • One (1) LA-122 Universal Antenna Kit (72 MHz and 216 MHz)
  • One (1) LA-326 Universal Rack Mounting Kit
  • Four (4) LR-4200-216 Intelligent DSP RF Receiver (216 MHz)
  • Four (4) LA-401 Universal Ear Speaker
  • Two (2) LA-430 Intelligent Earphone/Neck Loop Lanyard
  • One (1) LA-423 4-Port USB Charger
  • One (1) LPT-A107-B Dual RCA to Dual RCA Cable 2 m (6.6 ft.)
  • One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Complete 216 MHz RF system with transmitter and four iDSP receivers
  • LT-800-216 transmitter, universal antenna kit, and rack mount kit include everything needed for permanent installation and custom configuration
  • Includes four universal ear speakers and two integrated neck loops/lanyards
  • Four-port USB charger, compliance signage, and RCA cable also included for immediate set up

Also Needed

Specs

+Physical

Shipping Weight19.0 lbs. (8.55 kg)

Accessories

FAQs

+What is the difference between the LR-4200 and the LR-5200?

The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+Can the LR-4200 be used with multiple transmitters?

Yes, but unlike the LR-5200, it cannot be programmed to lock out channels.

+What is the transmission range of the LS-54-216 system?

Up to 3,000 ft. (914.4 m).

+What is the warranty on the Lithium-ion battery?

The Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty

+What are the ADA changes related to assistive listening systems?

Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.

+What type of battery technology does the LR-4200 use?

The LR-4200 uses a non-proprietary field replaceable Lithium Ion battery.

+How long does it take to fully charge the LR-4200?

It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.

+How many LR-4200 receivers can I use in a system?

As many as you need, the number is endless.

+How long will the LR-4200 run on a fully charged battery?

The LR-4200 will run continuously for 8 hours on a fully charged battery
