This product is available while supply lasts.

Listen Ultimate Level I Stationary RF System (72 MHz) (Limited Quantities)

Item:LS-50-072
Limited Quantities

The LS-50-072 Premiere Level I system comes equipped with our LR-500 digital display receivers, which make it easier to program, monitor channel selection, battery level, and signal strength. Ideal for applications when multi-language interpretation or a variety of audio sources need to be heard by a variety of listeners. Venues will benefit from managing the LR-500 when one receiver is used with multiple transmitters (audio sources) and users need the convenience of changing the channels themselves and programming of multiple channels is desired, so that users select only from the active channels. The included neck loops and signage ensures the system meets the minimum legislative requirements for veunes with a capacity up to 100. Telescoping antenna gives smaller venues the option for using the transmitter within a 198 m (650 ft.) range.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

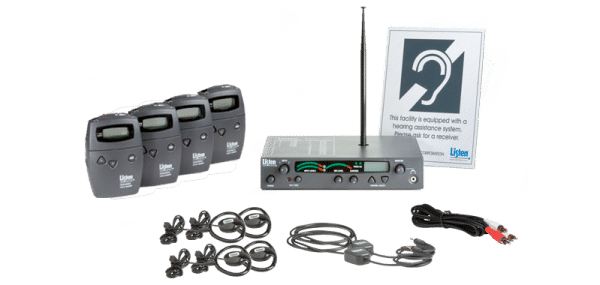

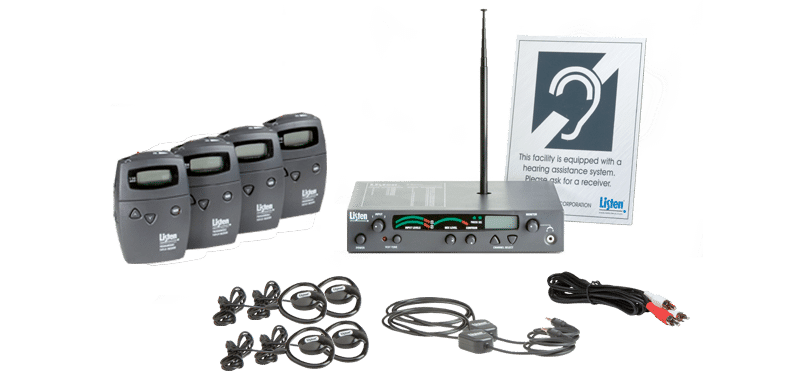

Includes

One (1) LT-800-072-01 RF Transmitter (72 MHz)
One (1) LA-106 Telescoping Top Mounted Antenna (72 MHz)
Four (4) LR-500-072 Portable Programmable Display RF Receiver (72 MHz)
Four (4) LA-164 Ear Speaker
Two (2) LA-438 Advanced Neck Loops (Adult)
One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)
Four (4) LA-361 High Capacity AA Alkaline Batteries (2)
One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Ensures public venues deliver an enriched listening experience while meeting new legislative requirements for assistive listening
  • Superior audio quality – 80 dB signal-to-noise ratio (SNR), setting the industry’s sound quality standard
  • Offers 57digital channels – Listen receivers are digitally-tuned so the transmission won’t drift

Also Needed

Specs

+Physical

Shipping Weight10.0 (4.5)

Accessories

FAQs

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What is the transmission range of the LS-50-072 system?

Up to 198 m (650 ft.) with the included telescoping antenna (LA-106). For greater range up to 305 m (1,000 ft.) the universal antenna kit options found in the Level II and II Premiere systems.

+Can the LR-500 be used with multiple transmitters?

Yes. We recommend the LR-500 for use with multiple transmitters. The LR-500 is programmable and can be set to just those channels you need.

+How many receivers can I have in a system?

As many as you need, the number is endless.

+How many channels can I program into the LR-500?

One to 57. The receiver has 57 channels and you can program it to have just the channels you want to access. It can be a two channel receiver, a 12 channel receiver, or keep all channels.

+How long do the batteries last on the LR-500 receiver?

Alkaline batteries last 30 hours. NiMH rechargeable batteries last 15 hours (72 MHz and 216 MHz). With 863 MHz, Alkaline batteries last 20 hours and NiMH rechargeable batteries last 10 hours.

+What are the ADA changes related to assistive listening systems?

Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.
