Overview

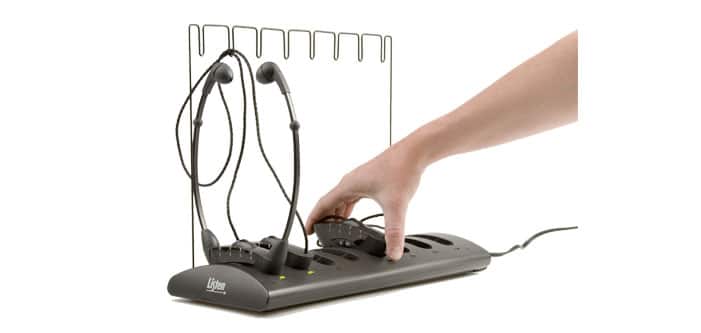

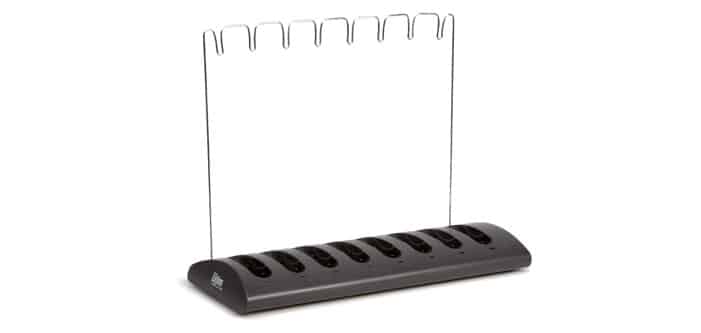

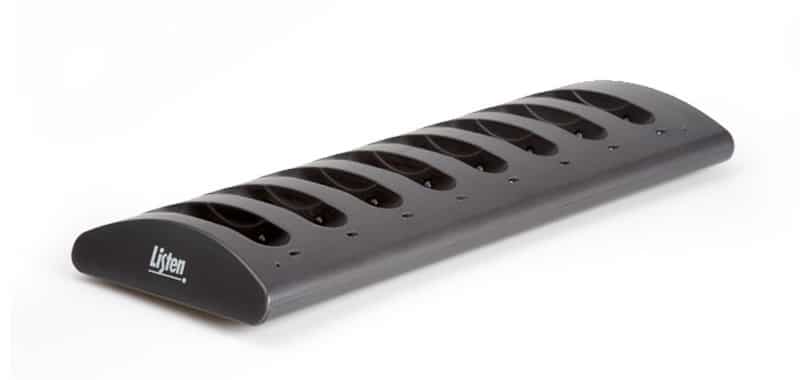

The LA-350 8-unit charging tray from Listen Technologies provides a convenient and compact option for storing, charging, and distributing up to eight (8) LR-42 Stethoscope and/or LR-44 Lanyard Receivers in any combination. Additionally, the LA-350 can separately charge as many as eight (8) NiMH battery packs, giving you an easy way to have additional batteries charged and ready for customers and clients. Red and green LEDs indicate the charge status of each slot, and the tray can be mounted on a desk or wall to fit the needs of your venue and installation.

Includes

One (1) LA-350 8-Unit IR Charging/Storage Station
Eight (8) NiMH Battery Pack Charging Inserts (Batteries not included)
One (1) Tidy rack
One (1) Universal power supply
One (1) Manual

Highlights

  • Convenient option for storing and charging receivers or battery packs
  • Compatible with LR-42 and LR-44 receivers in any combination
  • Also charges up to eight (8) LA-364 NiMH battery packs
  • Permanently mountable to desks or walls depending on your needs
  • Automatic charging turns off power to each unit as it reaches full power
Configurations & Architectural Specs

Configurations

LA-350-01 8-Unit IR Charging/Storage Station (North America)*
LA-350-02 8-Unit IR Charging/Storage Station (Asia, UK)*
LA-350-03 8-Unit IR Charging/Storage Station (Euro)*
LA-350-04 8-Unit IR Charging/Storage Station (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.

Architectural Specs

The charging and storage platform shall accommodate eight (8) receivers and eight (8) rechargeable battery packs. The platform shall independently charge each receiver. A bicolor LED shall be provided to show the status of the charging process. The platform shall be capable of being mounted on a flat or vertical surface. The unit shall employ a universal power supply that shall be UL/CSA, FCC, IC and CE, RoHS certified. The LA-350 is specified.

Product Specifications
SpecificationLA-350

Indicators

Bicolor LEDRed when charging, Green when charging is complete

Power

Power Supply Input100-240 VAC, 47-63 Hz
Power Supply Output7.5 VDC, 4.0 A
Power Supply Connector5.0mm x 2.1mm Barrel

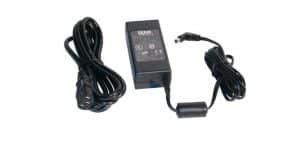

Power Supply TypeIn-line switching mode power supply, Listen part number LA-204
ComplianceUL, CE Listed

Physical

Width13.6 in. (34.5 cm)
Height1.5 in. (3.8 cm)
Depth5.4 in. (13.7 cm)
ColorDark Grey with White Silk Screening
Shipping Weight4.0 lbs. (1.8 kg)
MountingDesk of wall mount
Weight1.2 lbs. (544 g)

Environmental

Temperature - Operation14 ?F(-10 ?C) to 104 ?F(+40 ?C)
Temperature - Storage-4 ?F (-20 ?C) to 122 ?F (+50 ?C)
Relative Humidity0 to 95% relative humidity, non-condensing

Compliance

StandardsFCC, Industry Canada, CE, RoHS
Used With
Accessories
FAQ
QWhat is Listen Technologies product warranty?
AClick for Listen's product warranty.
QHow many receivers can I store/charge?
AUp to eight.
QCan I charge LA-364 IR NiMH Rechargeable Battery Packs in this unit?
AYes, place the LA-364 units into the supplied inserts and place them in the charger.
QIs each receiver or battery pack charged separately?
AYes, the LA-350 monitors each battery pack/receiver separately and shuts down the charge to that battery when the charge is complete.
QCan I charge alkaline batteries in the LA-350?
ANo, alkaline batteries are not rechargeable. Do not attempt to charge these as damage may occur.
QWhere can I use the LA-350?
AMany places around the world. It has a universal power supply.
