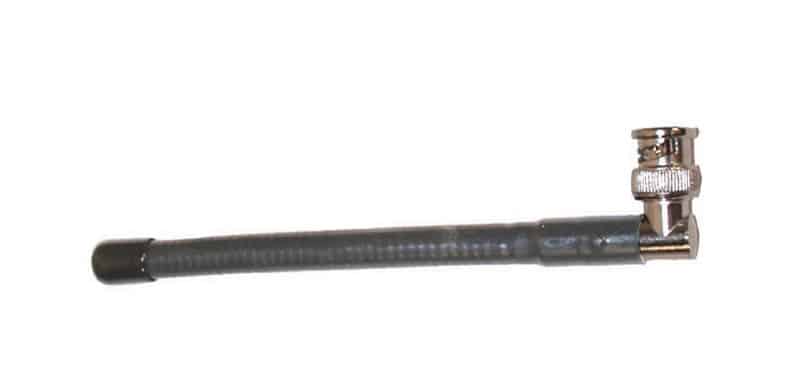

90 Degree Helical Antenna (72 MHz)

Item:LA-123b Price: $25.60B-STOCK

Designed to mount to the rear BNC antenna connector, the LA-123 antenna offers and outstanding coverage range up to 600 ft (182.88 m). The 90-degree antenna is compatible with the 72 MHz versions of our LT-800 transmitter, LR-100 receiver/amplifier, and the LR-600 receiver/speaker. The LA-123 is also included with the LA-125, allowing the antenna to be placed in front of the equipment rack for specific application and installation needs.

This product is available through authorized resellers.

Request Quote

Out of stock

Includes

One (1) LA-123 90° Helical Antenna (72MHz)

Highlights

  • Outstanding coverage up to 122 m (400 ft.)
  • Mounts with a BNC connector
  • Compatible with 72 MHz equipment including our LT-800 transmitter and LR-100 receiver

Specs

+Interconnections

Connector/sBNC

+RF

Frequency Range72.0250 - 75.9750 MHz
Number of Channels57 (17 wide, 40 narrow)
Typical RangeRange up to 122 m / 400 ft.

+Physical

Length21.0 cm (8.25 in.)
ColorDark Grey
Shipping Weight0.5 kg (1 lb.)
Diameter1.10 cm (0.44 in.)
Weight45 g (1.60 oz.)
