This product is discontinued and the information here is only for reference. It has been replaced by the LS-54-072

ADA Value Stationary RF System (72 MHz) (Discontinued)

Item:LS-17-072-01
Discontinued
The LS-17-072 system is an affordable solution to meet the needs of the 2010 Americans with Disabilities Act (ADA) standards for accessible design. In addition to ensuring that public facilities are compliant; the system helps solve frustrating but common sound problems caused by distance, background noise, or poor room acoustics. The system can be ordered only on 72 MHz frequency band, and can be customized if you need additional parts. Backed by Listen, this cost-effective solution will enrich your customers’ listening experience in lecture halls, public hearing rooms, playhouses, centers for the performing arts, and more.
See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

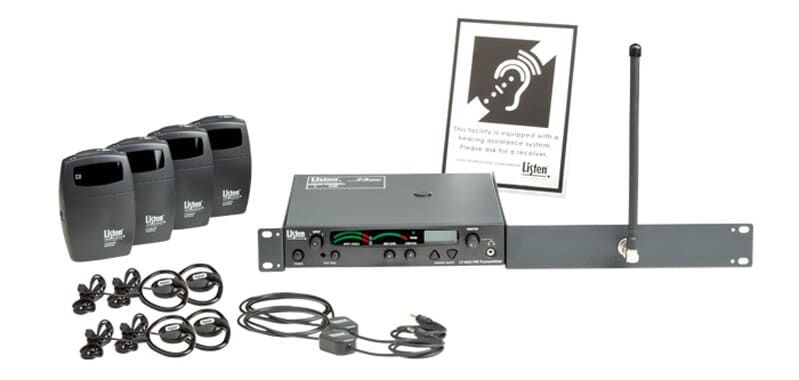

Includes

One (1) LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz)
One (1) LA-125 Antenna Kit for Rack Mount (72 MHz)
One (1) LA-326 Universal Rack Mount Kit
Four (4) LR-200-072 Standard 3-Channel RF Receiver (72 MHz)
Four (4) LA-164 Ear Speaker
Two  (2) LA-166 Neck Loop
Four (4) LA-361 High Capacity AA Alkaline Batteries (2)
One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Ensures public venues meet new 2010 ADA requirements and deliver an enriched listening experience
  • A simple choice between three different channels
  • Economical price – backed by Listen’s exceptional service and support
  • Reliable clear sound quality – 62 dB SNR
  • 30-day no obligation demonstrations available
  • Limited Lifetime Warranty – buy with confidence

Also Needed

Specs

+Physical

Shipping Weight20.0 lbs (9.1 kg)

Accessories

Downloads

FAQs

+Can I purchase additional LR-200-072 receivers for my LS-17-072 system?

Yes! Order as many as needed. The additional receivers will need an ear speaker (LA-164) or any other Listen earphones and batteries before being used.

+What is the transmission range of the LS-17-072 system?

Line of site up to 600 ft. (182.88 m) using the 90° Helical Antenna (72 MHz) which comes with the LA-125 Antenna Rack Mount Kit. Up to 1,500 ft. using other remote antenna options.

+Can Listen's other 72 MHz receivers (LR-500-072, LR-400-072, and LR-300-072) be used with the LP-3CV-072 system?

Yes. For best results, be sure the SQ function (Super Quiet) is turned off on any of the other receivers. Also, be sure to tune the receiver to the correct channel being used. All of Listen's receivers (aside from the LR-200-072) can SEEK to find the best local 72-75 MHz transmission.

+What is the battery life of the LR-200-072?

120 hours alkaline. 75 hours NiMH

+What are the ADA changes related to assistive listening systems?

Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.
