Overview

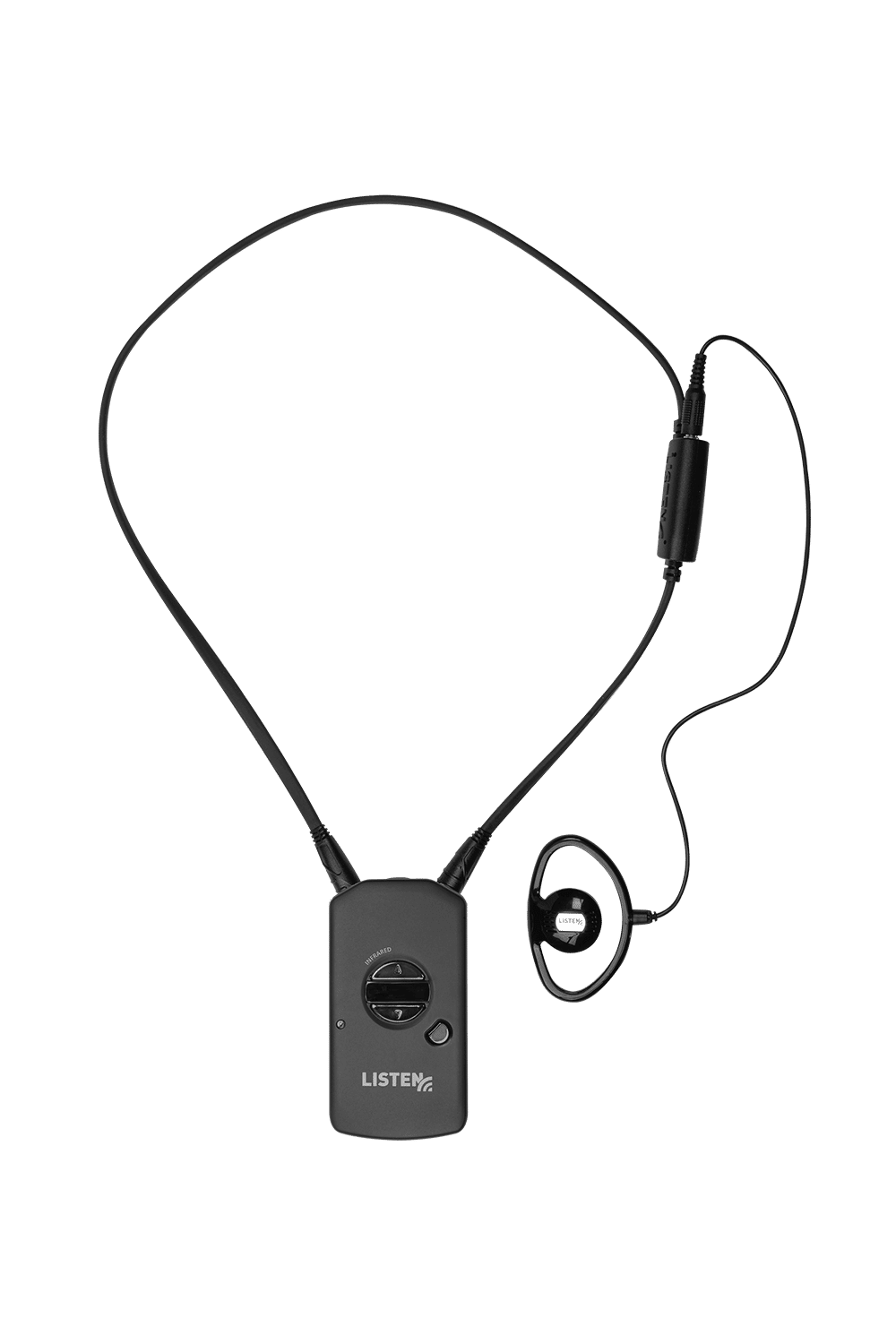

Complete with IR receiver, integrated neck loop/lanyard, and a universal ear speaker, the LR-5200-IR-P1 package offers a quick and convenient way to order the equipment you need to expand your IR assistive listening system.

The LR-5200-IR iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.

The integrated neck loop/lanyard gives listeners with T-coil-equipped hearing aids an improved listening experience, while the included universal ear speaker allows anyone to take advantage of the clarity and signal range that the LR-5200-IR offers.

Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.

For an unmatched listening experience in small and mid-size spaces, including boardrooms, classrooms, houses of worship and more, the LR-5200-IR-P1 receiver package offers the best way to start or expand your IR assistive listening system.

Includes

One (1) LR-5200-IR Advanced Intelligent DSP IR Receiver*
One (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
One (1) LA-401 Universal Ear Speaker



*The LR-5200-IR comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • Complete Intelligent DSP (iDSP) receiver package includes the equipment needed to begin or expand your IR assistive listening system quickly
  • High-performance ListenIR receiver provides the best signal pickup and range of any IR system on the market
  • Ideal for adding or expanding to venues and businesses with an existing IR assistive listening system
  • Includes one (1) LR-5200-IR receiver, integrated neck loop/lanyard, and a universal ear speaker
  • Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Ideal for multi-channel applications where users need the convenience of selecting channels themselves
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
  • Advanced green battery technology reduces costs of ownership and eliminates the hassle of purchasing, changing, and disposing of alkaline batteries
Configurations & Architectural Specs

Configurations

LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1

Architectural Specs

LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1 shall include (1) LR-5200-IR Advanced Intelligent DSP IR Receiver, (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard and (1) LA-401 Intelligent Ear Speaker.  The IR receiver shall be capable of receiving on four (4) wide band channels (carriers), Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz) and Channel 4 (3.8 MHz).  The device shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels. The receiver shall have the option of being lanyard or belt clip worn and the lanyard shall incorporate an integrated neck loop for compatibility with T-coil hearing aids. The receiver shall be intelligent and provide customized audio to either earphones or the integrated neck loop based upon which is connected. The receiver shall have two (2) 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two (2) mono or stereo earphones. The receiver shall incorporate a multi-functional display (OLED) that indicates battery status, inventory number, volume level and a customizable channel name. The receiver shall employ a unique iDSPTM noise reduction technology. The receiver shall be fully programmable via PC software.  The receiver shall have a micro USB connector used for programming/setup, inventory control, charging and firmware upgrades. The receiver shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The receiver shall automatically turn on when removed from the charging device and automatically turn off when returned to the charging device.  The receiver shall have additional charging contacts to allow for multiply charging options. The receiver shall have a signal-to-noise ratio of 60 dB or greater, THD less than 2% and shall have an audio frequency response of 63 Hz – 15 kHz (±3 dB). The Listen LR-5200-IR-P1 is specified.

CAD file(s)

Requirements
Used With
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat is the warranty on the Lithium Ion battery?
AAll accessories have a 90-day warranty.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QHow long will the LR-5200 run on a fully charged battery?
AThe LR-5200 will run continuously for 8 hours on a fully charged battery.
