Overview

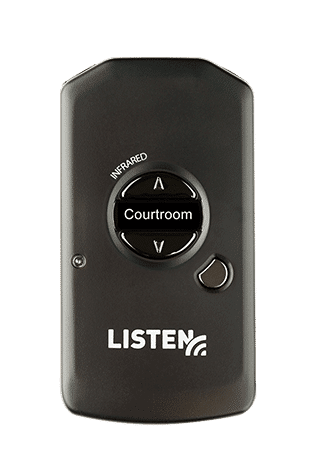

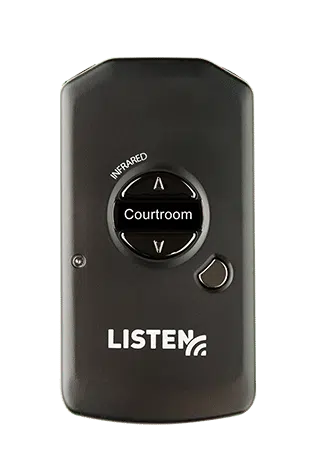

Listen Technologies’ LR-5200-IR receiver—one of the receivers in the next-gen Intelligent Digital Signal Processing (iDSP) line—gives assistive listening users an option for high-performance audio in a compact device that offers best-in-class pickup and range. The LR-5200-IR also provides houses of worship, theaters, lecture halls, and other venues with an affordable and easy-to-manage solution when adding or expanding their assistive listening options.

The built-in rechargeable battery technology makes the LR-5200-IR an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering a strong, reliable receiver. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-IR easy to wear and simple to use for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From businesses to banquet halls, theaters, and more, the LR-5200-IR makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

Includes

One (1) LR-5200-IR Advanced Intelligent DSP IR Receiver*



*The LR-5200-IR comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • High-performance, ultra-sensitive infrared personal listening receiver offering the best reception, sensitivity, and range in its class
  • Compact design—the smallest of its kind—makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more
Configurations & Architectural Specs

Configurations

LR-5200-IR Advanced Intelligent DSP IR Receiver

Architectural Specs

The IR receiver shall be capable of receiving on four (4) wide band channels (carriers), Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz) and Channel 4 (3.8 MHz).  The device shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels. The receiver shall have the option of being lanyard or belt clip worn and the lanyard shall incorporate an integrated neck loop for compatibility with T-coil hearing aids. The receiver shall be intelligent and provide customized audio to either earphones or the integrated neck loop based upon which is connected. The receiver shall have two (2) 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two (2) mono or stereo earphones. The receiver shall incorporate a multi-functional display (OLED) that indicates battery status, inventory number, volume level and a customizable channel name. The receiver shall employ a unique iDSPTM noise reduction technology. The receiver shall be fully programmable via PC software.  The receiver shall have a micro USB connector used for programming/setup, inventory control, charging and firmware upgrades. The receiver shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The receiver shall automatically turn on when removed from the charging device and automatically turn off when returned to the charging device.  The receiver shall have additional charging contacts to allow for multiply charging options. The receiver shall have a signal-to-noise ratio of 60 dB or greater, THD less than 2% and shall have an audio frequency response of 63 Hz – 15 kHz (±3 dB). The Listen LR-5200-IR is specified.

CAD file(s)

Product Specifications
SpecificationLR-5200-IR

Audio

System Distortion< 2% total harmonic distortion (THD) at 80% deviation
Audio Output JacksTwo (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm, accepts mono or stereo phone plug or LA-430 Intelligent Ear Phone/Neck Loop Lanyard
System Frequency Response63 Hz - 15 kHz (±3 dB)
System Signal to Noise Ratio> 60 dB

Controls

User ControlsPower on/off, volume up/down, Listen button for end user channel selection
ProgrammingVia software and USB port, Auto Seek, Jack Sense, Squelch, Auto Power, Auto Off, Stereo, Brightness, Channel Name, Channel button, Channel Lock
Set-up ControlsPress and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

Indicators

DisplayOLED - Channel designation, battery level, unit number, charging status, volume status
LEDFlashes when batteries are low or to indicate charging, solid when fully charged

RF

Carrier Frequencies2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
Number of ChannelsFour (4) selectable channels
Frequency Accuracy± .005% stability 32 to 122 ºF (0 to 50 ºC)
ModulationFM Wideband, ±50 kHz deviation max, 50 uS de-emphasis

IR

Coverage Area30,000 ft² (2787 m²) single channel with LT-84/LA-141 or 40,000 ft² (3716 m²) single channel with LT-82/LA-140
SquelchProgrammable in 20 steps, automatic on loss of IR signal
Power Save ModeTurns unit off after a specified time of no IR signal, default is 30 minutes
SensitivityBetter than one (1) nW/cm2 @40 dB SNR

Power

Power SupplyMicro USB connector, 5 V, 500 mA
Battery TypeLithium Ion
Battery Life8 Hours of typical use
Battery Charging TimeFully charged in 2.5 Hours

Physical

ColorFlat Black
Unit Weight with Batteries2.8 oz. (79.4 g)
Shipping Weight3.5 oz. (99.2 g) with a 1 lbs. (0.45 kg) minimum
Dimensions (H x W x D)3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
Unit Weight1.9 oz. (53.9 g)
Dimensions with Belt Clip3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage(-)4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

Compliance

StandardsFCC Part 15, ICS-03, CE, RoHS, WEEE, ADA 706, CBC 11B-706
Requirements
Used With
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat is the warranty on the Lithium Ion battery?
AAll accessories have a 90-day warranty.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QHow long will the LR-5200 run on a fully charged battery?
AThe LR-5200 will run continuously for 8 hours on a fully charged battery.
