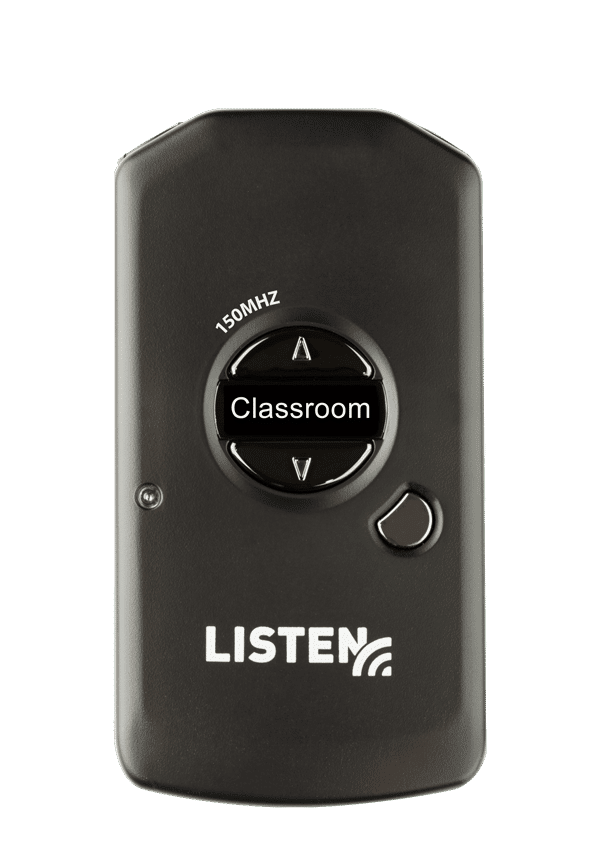

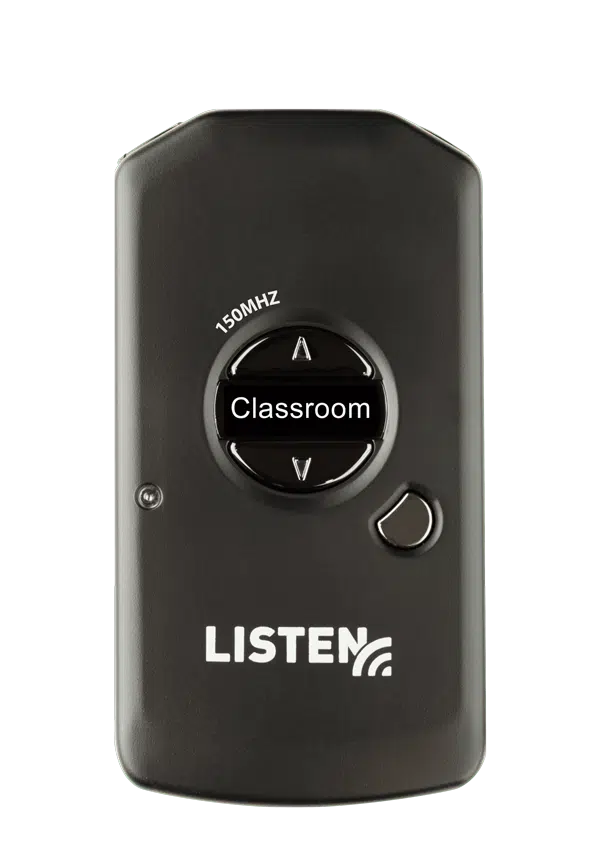

Advanced Intelligent DSP RF Receiver (150 MHz)

Item:LR-5200-150

Listen Technologies’ LR-5200-150 RF receiver offers assistive listening users an option for high-performance audio in a compact device that offers best-in-class pickup and reduced noise. The LR-5200-150 also provides houses of worship, theaters, lecture halls, and other venues with an affordable and easy-to-manage solution when adding or expanding their assistive listening options.

The built-in rechargeable battery technology makes the LR-5200-150 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-150 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

From classrooms to conferences, businesses to banquet halls, and more, the LR-5200-150 makes an outstanding choice for a comfortable, clear, and reliable personal listening receiver.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) LR-5200-150 Advanced Intelligent DSP RF Receiver (150 MHz)*



*The LR-5200-150 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • High-performance, ultra-sensitive 150 MHz RF personal listening receiver offering the lowest noise in its class
  • Most compact design of any device of its kind makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • At-a-glance information including channel status, battery level, volume, and more from the OLED display
  • Backed by Listen Technologies’ limited lifetime warranty and hassle-free support

Also Needed

Specs

+Audio

Frequency Response50 Hz - 15 kHz (±3 dB)
System Distortion< 2% total harmonic distortion (THD) at 80% deviation
Output/sTwo (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
System Signal to Noise RatioSQ enabled 80 dB, SQ disabled 60 dB

+Controls

User ControlsPower, up/down volume, Listen button for end user channel selection
ProgrammingVia software and USB port
Set-up ControlsPress and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

+Indicators

LEDsFlashes when batteries are low or to indicate charging, solid when fully charged
DisplayChannel designation,battery level, unit number, charging status

+RF

Frequency Range150.850 - 152.350 MHz
Number of Channels6 wide band, 26 narrow band
Sensitivity.6uV typical, 1 uV maximum for 12 dB sinad
SquelchProgrammable in 20 steps, automatic on loss of RF signal
Antenna TypeUses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

+Power

Power SupplyMicro USB connector, 5 V, 500 mA
Battery TypeLithium Ion 3.7 Vdc, 1200 mAh
Battery Life8 Hours of continuous use
Battery Charging TimeFully charged in 2.5 Hours

+Physical

ColorBlack
Unit Weight with Batteries2.40 oz. (68 g)
Shipping Weight3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum
Dimensions (H x W x D)3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
Unit Weight1.60 oz. (45 g)
Dimensions with Belt Clip3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

+Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage(-)4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

Marks and ApprovalsRCM, RoHS

FAQs

+What is the difference between the LR-4200 and the LR-5200?

The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+How many LR-5200 receivers can I use in a system?

As many as you need, the number is endless.

+How long does it take to fully charge the LR-5200?

It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.

+What type of battery technology does the LR-5200 use?

The LR-5200 uses a non-proprietary Lithium Ion battery.

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+How long will the LR-5200 run on a fully charged battery?

The LR-5200 will run continuously for 8 hours on a fully charged battery.
