Overview

The LR-5200-072KR is Listen Technologies’ advanced new generation of personal listening products, iDSP or Intelligent Digital Signal Processing.

With Listen’s unique DSP SQTM noise reduction technology, users experience 20 dB less noise and hiss than any other listening device. Advanced green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in landfills. A field replaceable Lithium-ion battery is included with the unit. The integrated neck loop / lanyard with DSP loop driver, improves the listening experience for T-coil users. iDSP is the smallest device of its kind, making it easier to wear and easier for venues to dispense, store and maintain.

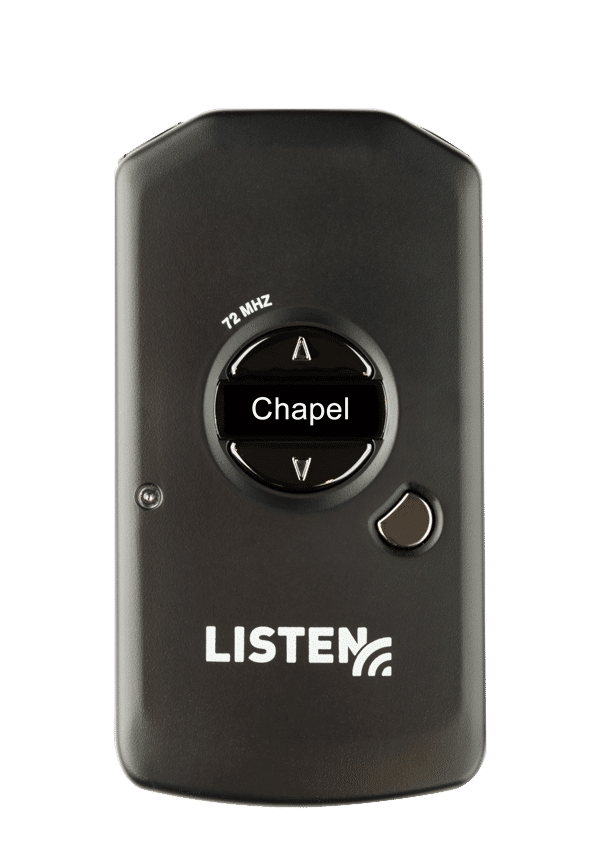

The LR-5200-072KR has an OLED display to program channel names, monitor battery status, channel status, and charge activation. Programmable channel select button allows user to cycle through active channels, seek to or lock to a channel. Connect the iDSP neck loop/lanyard or ear phones via two 3.5 mm output jacks (ear phones could be shared). The Micro USB connection is used with free iDSP software for charging, set up, programming, inventory management and firmware updates.

The result is an exceptional listening experience in places where it’s difficult to hear, like: theaters, lecture halls, concert venues, houses of worship, and more.

Includes

One (1) LR-5200-072KR Advanced Intelligent DSP RF Receiver (72 MHz)*



*The LR-5200-072KR comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • Advanced DSP SQTM noise reduction technology delivers 20 dB less noise and hiss than any other listening device
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
  • Limited Lifetime Warranty with hassle-free support
  • Can be worn around the neck, with the belt clip, or concealed in a pocket, making it the most discreet listening device on the market
  • Advanced green battery technology dramatically reduces costs of ownership and hassles while reducing the number of batteries in the landfill
  • Use for multi-channel applications where the users need the convenience of changing the channels themselves
Configurations & Architectural Specs

Configurations

LR-5200-072KR Advanced Intelligent DSP RF Receiver (72 MHz)

Architectural Specs

The RF receiver shall be capable of receiving on 21 wide and narrow band channels.  The device shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels.  The receiver shall have a signal-to-noise ratio of 70 dB or greater and shall have an audio frequency response of 50 Hz – 15 kHz (±3 dB). The device shall employ a unique DSP SQTM noise reduction technology. The unit shall have a programmable squelch circuit.  The unit shall incorporate a multi-functional display that indicates battery status, inventory number and channel. The device shall have the option of being lanyard or belt clip worn and the lanyard shall have the option of an integrated neck loop. The device shall have a USB connector used for inventory control, set up, charging and firmware upgrades. The device shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The device shall have additional charging contacts to allow multiply charging options.  The Listen LR-5200-072KR is specified.

CAD file(s)

Product Specifications
Specification LR-5200-072KR

Audio

Frequency Response 50 Hz - 15 kHz (±3 dB)
System Distortion < 2% total harmonic distortion (THD) at 80% deviation
Output/s Two (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
System Signal to Noise Ratio SQ enabled 70 dB, SQ disabled 50 dB

Controls

User Controls Power, up/down volume, Listen button for end user channel selection
Programming Via software and USB port
Set-up Controls Press and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

Indicators

LEDs Flashes when batteries are low or to indicate charging, solid when fully charged
Display Channel designation,battery level, unit number, charging status

RF

Frequency Range 72.650 - 74.750 MHz
Number of Channels 21 channels
Sensitivity .6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy ± .005% stability 32 to 122 ºF (0 to 50 ºC)
Squelch Programmable in 20 steps, automatic on loss of RF signal
Antenna Type Uses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

Power

Power Supply Micro USB connector, 5 V, 500 mA
Battery Type Lithium Ion 3.7 Vdc, 1200 mAh
Battery Life 8 Hours of continuous use
Battery Charging Time Fully charged in 2.5 Hours

Physical

Color Black
Unit Weight with Batteries 2.40 oz. (68 g)
Shipping Weight 3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum
Dimensions (H x W x D) 3.75 x 2.0 x 0.64 in. (9.6 x 5.0 x 1.7 cm)
Unit Weight 1.60 oz. (45 g)
Dimensions with Belt Clip 3.75 x 2.0 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

Environmental

Temperature - Operation 14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage (-)4 to 122 °F (-20 to 50 °C)
Relative Humidity 0 to 95% relative humidity, non-condensing

Compliance

Standards KCC
Requirements
Used With
Accessories
FAQ
Q What is the difference between the LR-4200 and the LR-5200?
A The main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
Q What is the purpose of Squelch?
A The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
Q How many LR-5200 receivers can I use in a system?
A As many as you need, the number is endless.
Q How long does it take to fully charge the LR-5200?
A It varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
Q What type of battery technology does the LR-5200 use?
A The LR-5200 uses a non-proprietary Lithium Ion battery.
Q What is the function of SQ?
A To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.
Q How long will the LR-5200 run on a fully charged battery?
A The LR-5200 will run continuously for 8 hours on a fully charged battery.
Q What is the warranty on the Lithium-ion battery?
A The Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty
