Overview

Complete with RF receiver, integrated neck loop/lanyard, and a universal ear speaker, the LR-5200-072-P1 package offers a quick and convenient way to order the equipment you need to expand your digital RF assistive listening system.

The LR-5200-072 iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity and reduced noise, as well as the advanced green battery technology that make it more convenient and affordable for businesses and venues.

The integrated neck loop/lanyard gives listeners with T-coil-equipped hearing aids an improved listening experience, while the included universal ear speaker allows anyone to take advantage of the clarity and signal range that the LR-5200-072 offers.

Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.

For an unmatched listening experience in small and mid-size spaces, including boardrooms, classrooms, houses of worship and more, the LR-5200-072-P1 receiver package offers the best way to start or expand your RF assistive listening system.

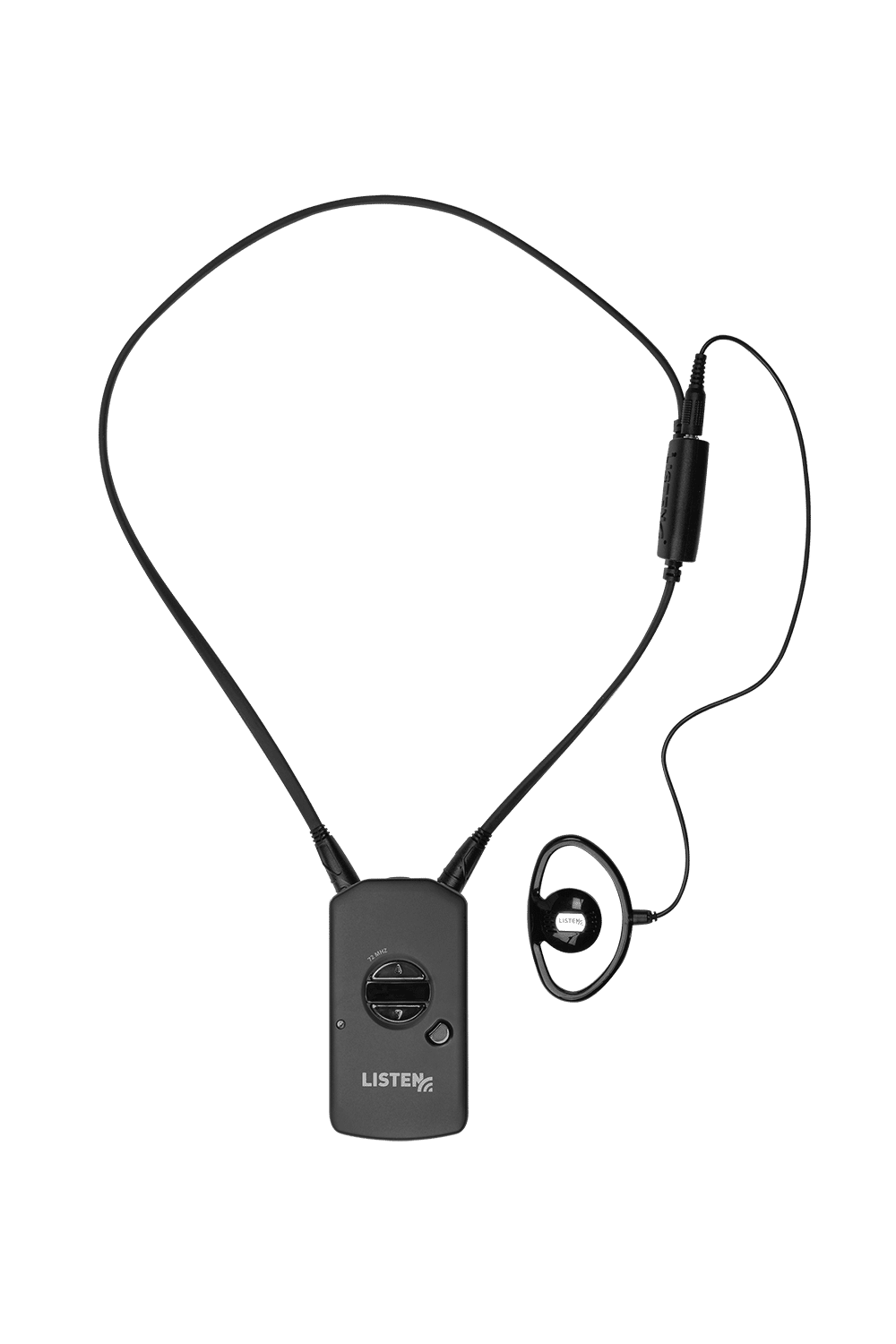

Includes

One (1) LR-5200-072 Advanced Intelligent DSP RF Receiver (72 MHz)*
One (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
One (1) LA-401 Universal Ear Speaker



*The LR-5200-072 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • Complete Intelligent DSP (iDSP) receiver package includes the equipment needed to begin or expand your 72 MHz RF assistive listening system quickly
  • High-performance ListenRF receiver provides the best signal pickup and least noise of any RF system on the market
  • Ideal for adding or expanding an existing RF assistive listening system
  • Includes one (1) LR-5200-072 receiver, integrated neck loop/lanyard, and a universal ear speaker
  • Can be worn around the neck or with the belt clip, making it the most discreet listening device on the market
  • Integrated neck loop / lanyard with DSP loop driver improves the listening experience for T-coil users
  • Ideal for multi-channel applications where users need the convenience of selecting channels themselves
  • Smallest device of its kind makes it easier to wear and for venues to dispense, store and maintain
  • Advanced green battery technology reduces costs of ownership and eliminates the hassle of purchasing, changing, and disposing of alkaline batteries
Configurations & Architectural Specs

Configurations

LR-5200-072-P1 Advanced Intelligent DSP RF Receiver Package 1 (72 MHz)

Architectural Specs

LR-5200-072-P1 Advanced Intelligent DSP RF Receiver Package 1 (72 MHz) shall include (1) LR-5200-072 Advanced Intelligent DSP RF Receiver (72 MHz), (1) LA-430 Intelligent Ear Phone/Neck Loop Lanyard and (1) LA-401 Intelligent Ear Speaker. The package shall be capable of receiving on 57 wide and narrow band channels.  The device shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels.  The receiver shall have a signal-to-noise ratio of 80 dB or greater and shall have an audio frequency response of 50 Hz – 15 kHz (±3 dB). The device shall employ a unique DSP SQTM noise reduction technology. The unit shall have a programmable squelch circuit.  The unit shall incorporate a multi-functional display that indicates battery status, inventory number and channel. The device shall have the option of being lanyard or belt clip worn and the lanyard shall have the option of an integrated neck loop. The device shall have a USB connector used for inventory control, set up, charging and firmware upgrades. The device shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The device shall have additional charging contacts to allow multiply charging options.  The device shall have an integrated ear phone and neck loop lanyard that uses an ear speaker with a cable length of no more than 13 inches (33cm).

The Listen LR-5200-072-P1 is specified.

CAD file(s)

Requirements
Used With
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QWhat is the function of SQ?
ATo reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.
QWhat is the warranty on the Lithium-ion battery?
AThe Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty
