$61.00 MSRP

This product is available through authorized resellers.

Request Quote
Overview

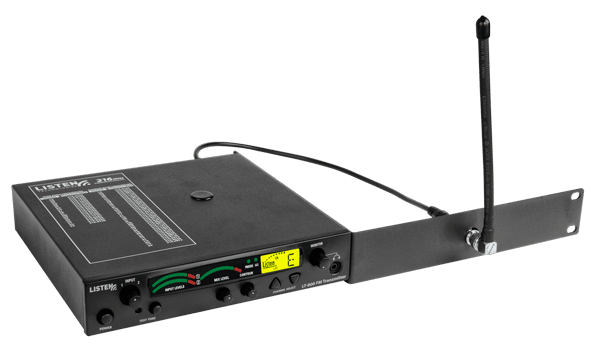

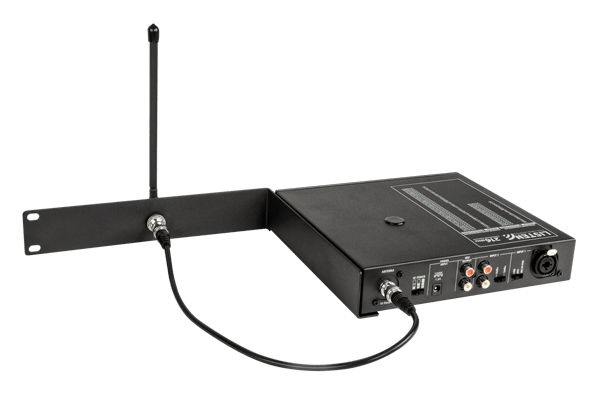

The LA-126 Antenna Kit for Rack Mount works in conjuntction with the LA-326 Rack Mount Kit to adapt it for use as an antenna mount. The kit includes a 90-degree helical antenna, and can be used to build your own antenna setup specific to your installation needs. The LA-126 is compatible with both the LT-800 Stationary Transmitter and the LR-100 Stationary Receiver, offering excellent coverage and range for either device.

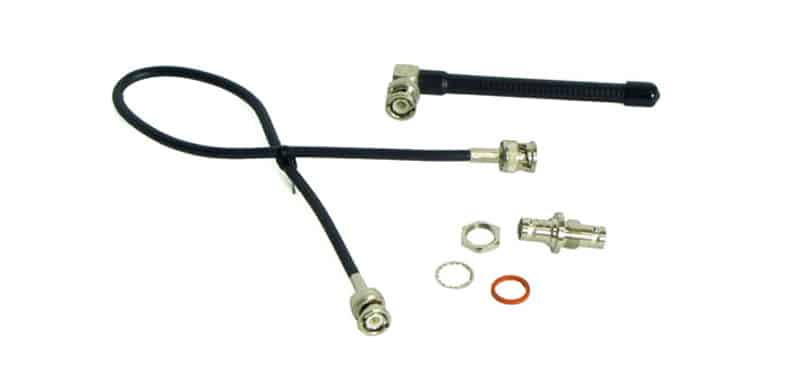

Includes

One (1) LA-124 90° Helical Antenna (216 MHz)
One (1) 18 in. BNC to BNC Cable
One (1) BNC feed-through Connector
One (1) Manual

Highlights

  • Combines with rack mount kit to create a customer antenna and mount
  • Easy to install
  • Ideal for stationary transmitter or stationary receiver use
  • Provides transmission range up to 198m (650 ft.)
Product Specifications
Specification LA-126

Interconnections

Connectors BNC

RF

Frequency Range 216.025 - 216.9875 MHz
Number of Channels 57 (19 wide, 38 narrow)

Physical

Color Dark Grey
Shipping Weight 1 lbs. (0.5 kg)
Diameter 0.44 in. (1.10 cm)
Cable Length 18 in. (46 cm)
Weight 3.7 oz. (105 g)
Used With
FAQ
Q What is the warranty on the LA-126?
A All accessories have a 90-day warranty.
