Sale!
This product is available while supply lasts.

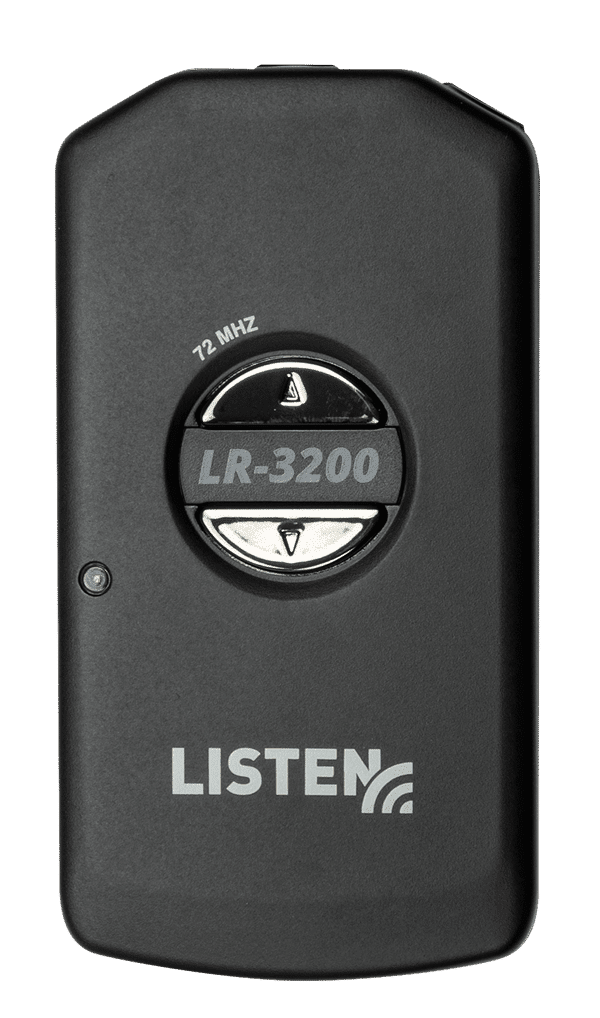

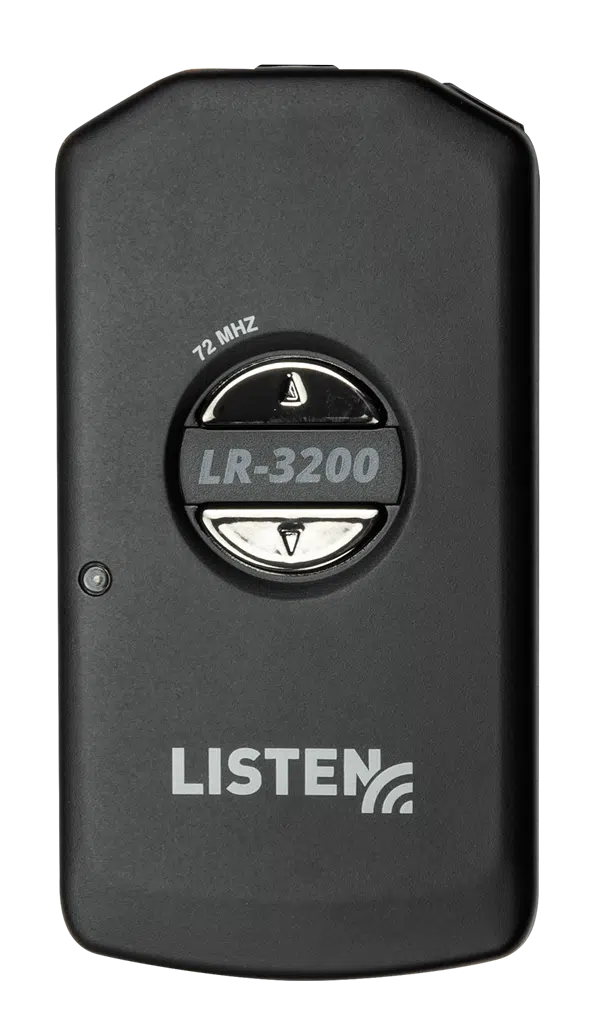

Basic DSP RF Receiver (72 MHz)

Item:LR-3200-072b Price: $104.00B-STOCK
Limited Quantities

The LR-3200-072 receiver from Listen Technologies offers outstanding audio clarity and quality with the best range and reception in its class.

Part of our Intelligent Digital Signal Processing (iDSP) line, the LR-3200-072 is the smallest device of its kind, resulting in a compact unit that won’t burden the end user. An integrated neck loop/lanyard makes each receiver easy to wear, and the DSP loop driver offers an improved listening experience for anyone with a T-coil-equipped hearing aid. Dual 3.5mm output jacks also allow receivers to be shared between users.

Each receiver is equipped with a micro USB connection which can be used with free iDSP software for charging, set up, programming, inventory management and firmware updates.

Extended speaking sessions, presentations and more can be challenging for other devices, but the LR-3200-072 incorporates advanced Lithium-ion rechargeable batteries that offer long life and reliable power.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LR-3200-072 Intelligent DSP RF Receiver (72 MHz)*



*The LR-3200-072 comes with a quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • RF receiver offering best-in-class sensitivity and sound
  • Integrated neck loop/lanyard with DSP loop driver for an enhanced T-coil listening experience
  • Smallest device of its kind makes it easier to wear and use and for venues to dispense, store and maintain
  • Limited lifetime warranty with hassle-free support
  • Lanyard and belt clip options offer convenient and discreet choices for the end-user
  • Advanced rechargeable battery technology eliminates the costs and hassles associated with frequent battery replacement
  • Designed for single-channel applications

Also Needed

Specs

+Audio

System Distortion< 1% total harmonic distortion (THD) at 80% deviation
Output/sTwo (2) 3.5 mm (0.14 in.) connectors, unbalanced, 0 dBu nominal output level, 50 mW maximum, impedance 32 ohm
System Frequency Response50 Hz - 15 kHz (±3 dB)
System Signal to Noise RatioSQ disabled 70 dB, SQ enabled 80 dB

+Controls

User ControlsPower, up/down volume
ProgrammingVia software and USB port
Set-up ControlsPress and hold up/down volume buttons for 5 seconds to enter channel adjust, use up/down to select channel

+Indicators

LEDsFlashes when batteries are low or to indicate charging, solid when fully charged

+RF

Frequency Range72.0250 - 75.9500 MHz
Number of ChannelsBasic Mode: 3 wide Band, Expand Mode: 17 wide band
Sensitivity.6uV typical, 1 uV maximum for 12 dB sinad
Frequency Accuracy± .005% stability 32 to 122 ºF (0 to 50 ºC)
SquelchFixed level, automatic on loss of RF signal
Antenna TypeUses ear phone/neck loop lanyard and short ear phone cable or standard earphone cable

+Power

Battery TypeLithium Ion 3.7 Vdc, 1200 mAh
Battery Life24 Hours of continuous use
Battery Charging TimeFully charged in 2.5 Hours
Power SupplyMicro USB connector, 5 V, 500 mA

+Physical

ColorBlack
Unit Weight1.60 oz. (45 g)
Unit Weight with Batteries2.40 oz. (68 g)
Shipping Weight3.20 oz. (91 g) with 1.0 lbs. (454 g) minimum
Dimensions (H x W x D)3.75 x 2.00 x 0.64 in. (9.6 x 5 x 1.7 cm)
Dimensions with Belt Clip3.75 x 2.00 x 0.80 in. (9.6 x 5.0 x 2.1 cm)

+Environmental

Temperature - Operation14 to 104 ºF (-10 to 40 ºC)
Temperature - Storage(-)4 to 122 °F (-20 to 50 °C)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC Part 15 Class B, Industry Canada ICES-3 (B), RoHS

Accessories

FAQs

+What is the purpose of Squelch?

The purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.

+What is the function of SQ?

To reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.

+What is the warranty on the Lithium-ion battery?

The Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty
