$170.00 MSRP

This product is available through authorized resellers.

Request Quote
Overview

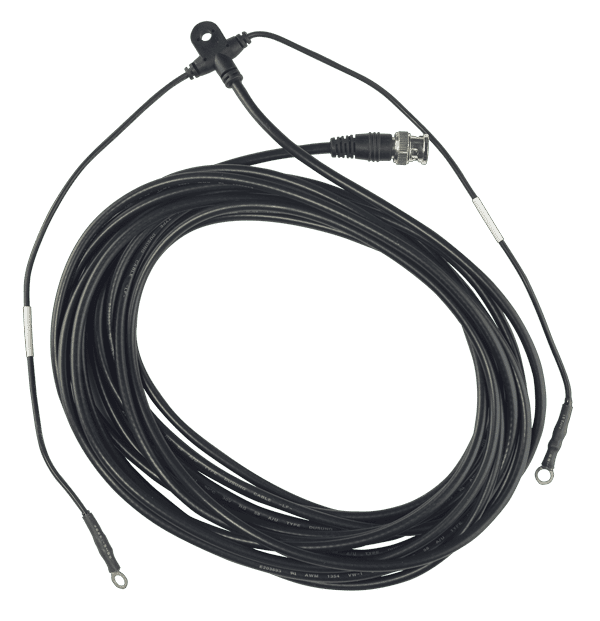

Made for permanent installations, the LA-117 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 216 MHz transmitters and receivers, the LA-117 is 68.6cm (27 in.) in length and flexible to fit any space or venue where it is needed.

Includes

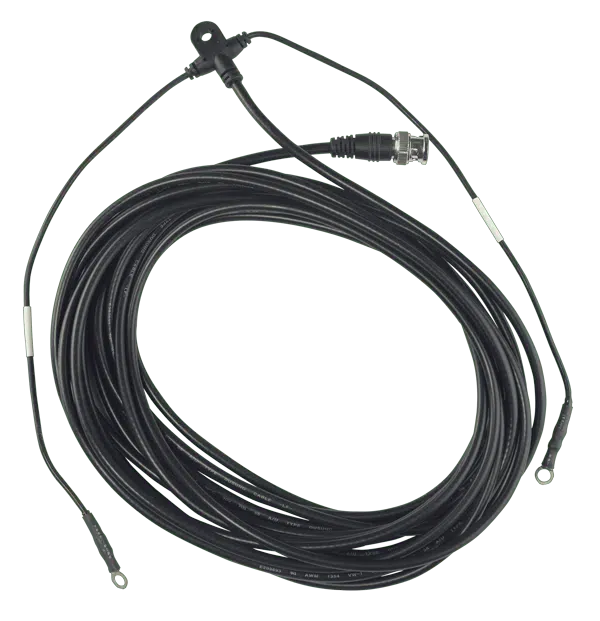

One (1) LA-117 Coaxial Dipole Remote Antenna (216 Mhz)

Highlights

  • Flexible design for multiple installation options including wall mounting, drop ceiling placement, and more
  • Compatible with Listen Technologies’ 216 MHz transmitters and receivers
  • Easy to install
Product Specifications
SpecificationLA-117

RF

Frequency Range216.0125 - 216.9875 MHz
Typical RangeRange up to 914 m / 3,000 ft.

Physical

Length27.00 in. (68.6 cm)
MaterialPolyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
Shipping Weight1.0 lb (0.5 kg)
Diameter0.19 in. (4.88 mm)
Cable Length25 ft. (7.62 m)
Cable TypeRG-58 50 Ohm Coaxial Cable
Weight13.40 oz. (0.38 kg)
Used With
Accessories
FAQ
QWhich antenna should I use if I'm concerned people may see it?
AThe LA-116 is the best option when you need good range but don't want the antenna to be seen. It's easily hidden in the ceiling or on a wall.
QWhat is the warranty on the LA-117?
AAll accessories have a 90-day warranty.
