Coaxial Dipole Remote Antenna (72 MHz)

Item:LA-116 Price:$170.00MSRP

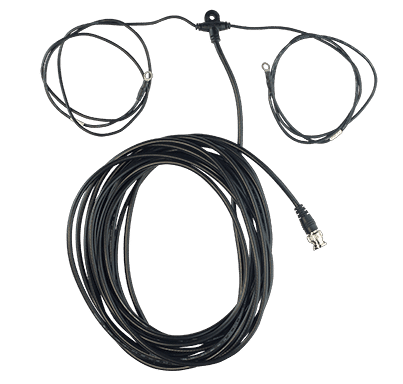

Made for permanent installations, the LA-116 flexible dipole antenna can be mounted on a wall, inside a drop ceiling, or anywhere that requires discreet placement and extended range. Configured for use with our 72 MHz transmitters and receivers, the LA-116 is 203 cm (80 in.) in length and flexible to fit any space or venue where it is needed.

This product is available through authorized resellers.

Request Quote

Includes

One (1) LA-116 Coaxial Dipole Remote Antenna (72 MHz)

Highlights

  • Flexible for many different applications
  • For use with 72 MHz products
  • Easy to install
  • Transmission range of up to 244 m (800 ft.)

Specs

+RF

Frequency Range72.0250 - 75.9500 MHz
Typical RangeRange up to 244 m / 800 ft.

+Physical

MaterialPolyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
Shipping Weight0.5 kg (1.0 lb)
Diameter4.88 mm (0.19 in.)
Cable Length7.62 m (25 ft.)
Cable TypeRG-58 50 Ohm Coaxial
Weight0.38 kg (13.40 oz.)

FAQs

+What is Listen Technologies product warranty?

+Which antenna should I use if I'm concerned people may see it?

The LA-116 is the best option when you need good range but don't want the antenna to be seen. It's easily hidden in the ceiling or on a wall.
