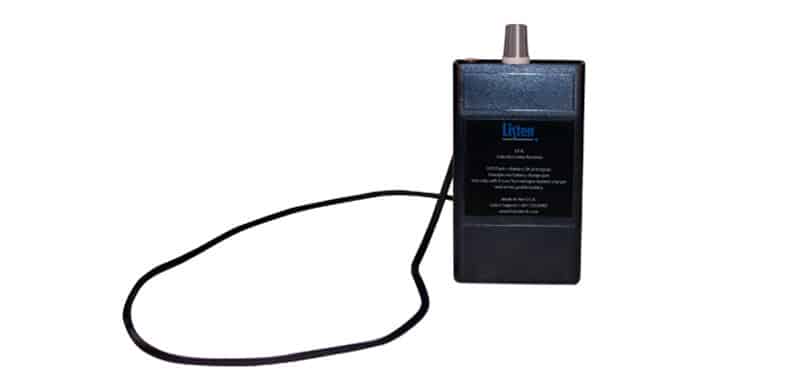

Hearing Loop Receiver with Lanyard

Item:LR-IL-1b

The LR-IL-1 is a high quality audio hearing loop receiver which allows a non-hearing aid user to listen to the audio that is being produced by the Hearing Loop system. The receiver also provides a visual as well as auditory confirmation allowing for facility managers and system installers to check system performance.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) Hearing Loop Receiver with Lanyard
One (1) LA-366 High Capacity 9V Alkaline Battery for LR-IL-1
One (1) LA-164 Ear Speaker
One (1) User’s Guide

Highlights

  • Allows the user without a hearing aid to listen to hearing loop system using a pair of headphones
  • Essential for installers, venue managers and even organizers to check the induction loop system is working

Also Needed

Specs

+Audio

Frequency Response85 Hz - 6 kHz ± 0.5 dB
Audio Output Power110 dBA SPL at 16 Ohm Load
Distortion< 0.5% THD @ 1 kHz

+Indicators

Battery StatusBattery Condition OK when LED Illuminated

+Power

Battery TypeAlkaline
Battery LifeApproximately 100 hrs.
Nominal Voltage9 VDC

+Physical

Width2.5 in. (63 mm)
Height4 in. (102 mm)
Depth.87 in. (22 mm)
Shipping Weight0.8 lbs. (0.4 kg)
Weight.31 lbs. (.14 kg)
Battery Size9V

Downloads

FAQs

+What is spill or overspill?

Overspill occurs when the magnetic field created by hearing loop can be heard outside of the looped area (such as a room). The field is “spilling” outside of the looped area and can affect other nearby loop systems.
