The CLS2 enclosure is designed for simple, permanent installation, with secure lid protecting connections and controls, while leaving operation indicators visible. The case is designed to make access simple, and to ensure the amplifier can be installed in the most constrained spaces.
Designed for vertical panel mounting using 4 screws (6 holes provided). Template for screw placements provided. The CLS2 is compact enough to fit on a 1U rack tray with feet removed.
Hinged lid, secured by 2 Phillips PH2 screws. Lid can be removed completely if required, for ease of access, or if there is no room to hinge the lid forwards.
Knock-outs (diameter 20mm) are provided for routing cables into the enclosure. 2 on the top edge, 4 on the rear face, 4 on the bottom edge, providing excellent installation flexibility.

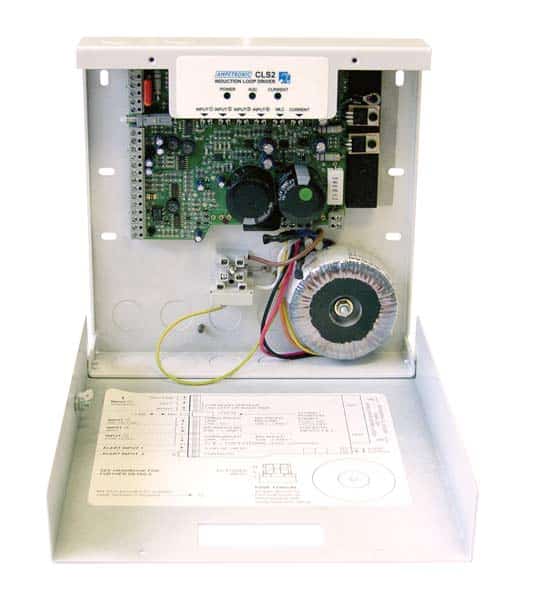

All input cable connections are made with screw terminals mounted on one side of the PCB. Mains power connections are made to a chassis mounted screw terminal block. Loop connection is made to a screw terminal pair mounted on the PCB. Cable connections are illustrated on a detailed label on the case interior.

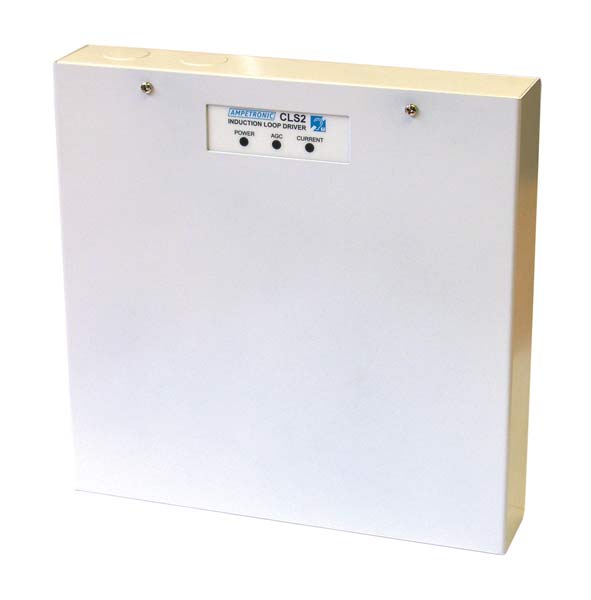

3 LED indicators are visible with the case open or closed:
- AGC Amber LED lit when input signal is activating the automatic gain control
- Current Green LED lit when current is running in the loop
- Power Green LED lit when the unit has power
Five controls are located to be accessed only with the lid open, all screwdriver adjustable.
- Level controls for inputs 1, 2, 3 and 4
- Metal loss correction
- Loop drive current
