Overview

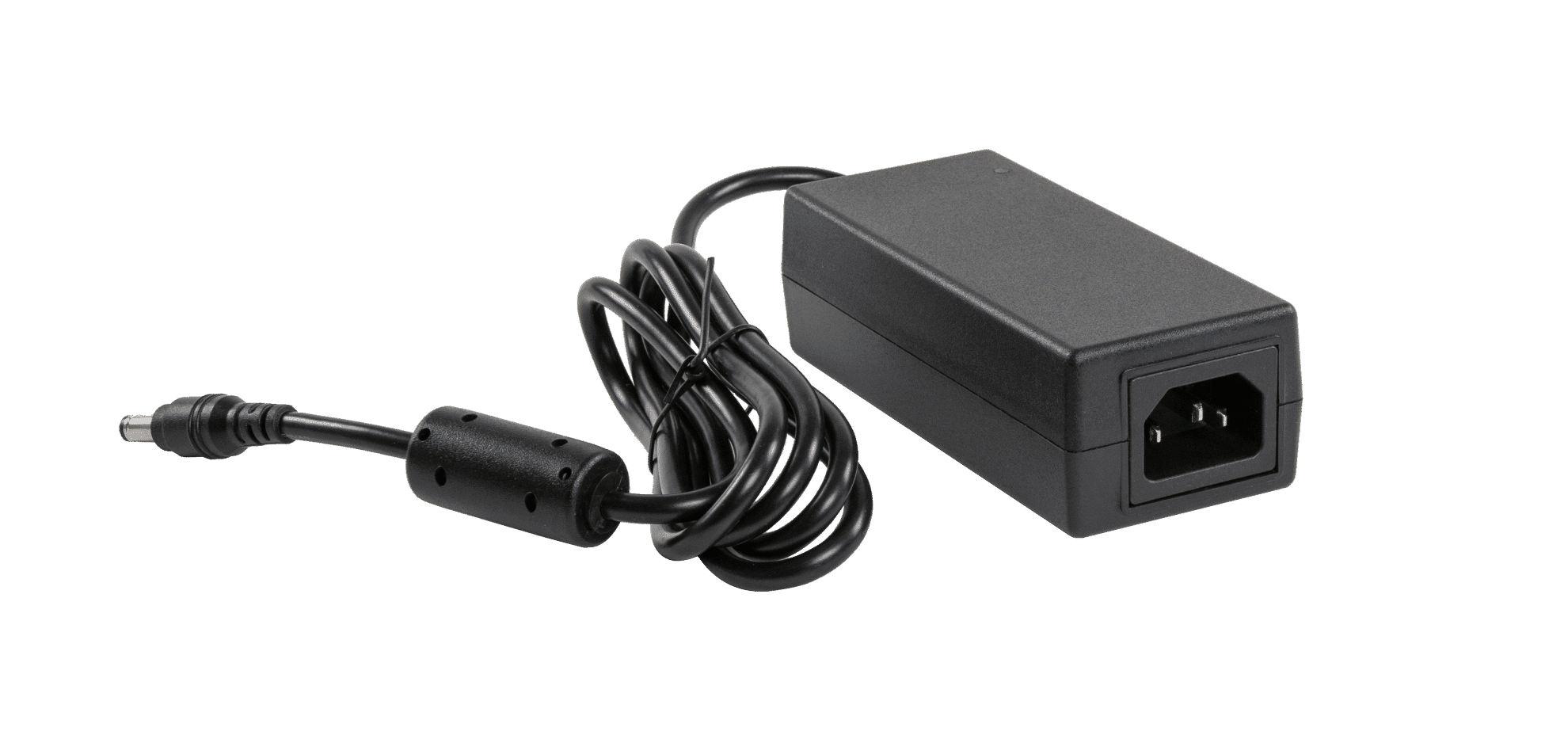

Compatible with our Listen Everywhere servers, the LA-504 replacement power supply has four different line cord configurations to allow for use in nearly any region of the world.

Includes

One (1) Listen Everywhere Replacement Power Supply
One (1) Line cord

Highlights

  • Safe, reliable 5 VDC power for Listen Everywhere servers
  • Available with four user-selectable line cord configurations for use in nearly any region
Configurations & Architectural Specs

Configurations

LA-504-01 Listen EVERYWHERE Replacement Power Supply (North America)*
LA-504-02 Listen EVERYWHERE Replacement Power Supply (Asia, UK)*
LA-504-03 Listen EVERYWHERE Replacement Power Supply (Euro)*
LA-504-04 Listen EVERYWHERE Replacement Power Supply (Australia)*
*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.
Product Specifications
Specification LA-504

Power

Power Supply Input 100-240V, 50-60 Hz, 2.0A
Power Supply Output 5 VDC, 6.0A 30W
Power Supply Connector .217 in (5.5mm) OD, .083 in (2.1 mm) ID, barrel type, center positive
Power Supply Type In Line

Physical

Color Black
Cable Length Power Supply Cable: 4.0 ft. (122 cm), IEC Line Cord: 6.0 ft. (183 cm)
Dimensions (H x W x D) 1.5 in. x 2.00 in. x 4.5 in. (38 mm x 51 mm x 115 mm)
Weight (-01) 12.8 oz. (300 g), (-02) 16 oz. (500 g), (-03) 16 oz. (500 g), (-04) 12.8 oz. (400 g)

Environmental

Temperature - Operation -10 °C (14 °F) to +40 (104 °F)
Temperature - Storage -20 °C (-4 °F) to +50 (122 °F)
Relative Humidity 0 to 95% relative humidity, non-condensing

Compliance

Power Supply Compliance CUL, UL, CE, CCC, RCM, CCC, EAC, PSE, FCC, RoHS
Used With
