Overview

The Listen Essentials Level 2 Stationary RF System expands on the capabilities of our most basic system by expanding the range to cover up to 457.2 m (1,500 ft.) affordably.

The included transmitter is Dante compatible through the use of the LA-465 Dante adapter and features universal inputs compatible with most audio sources, and the choice of three (3) broadcast frequencies makes it easier to set up and fine-tune. Digital tuning ensures that the included receivers won’t drift off-channel, guaranteeing a strong connection for a more enjoyable listening experience.

The LS-31 is available for the 72 MHz band only.

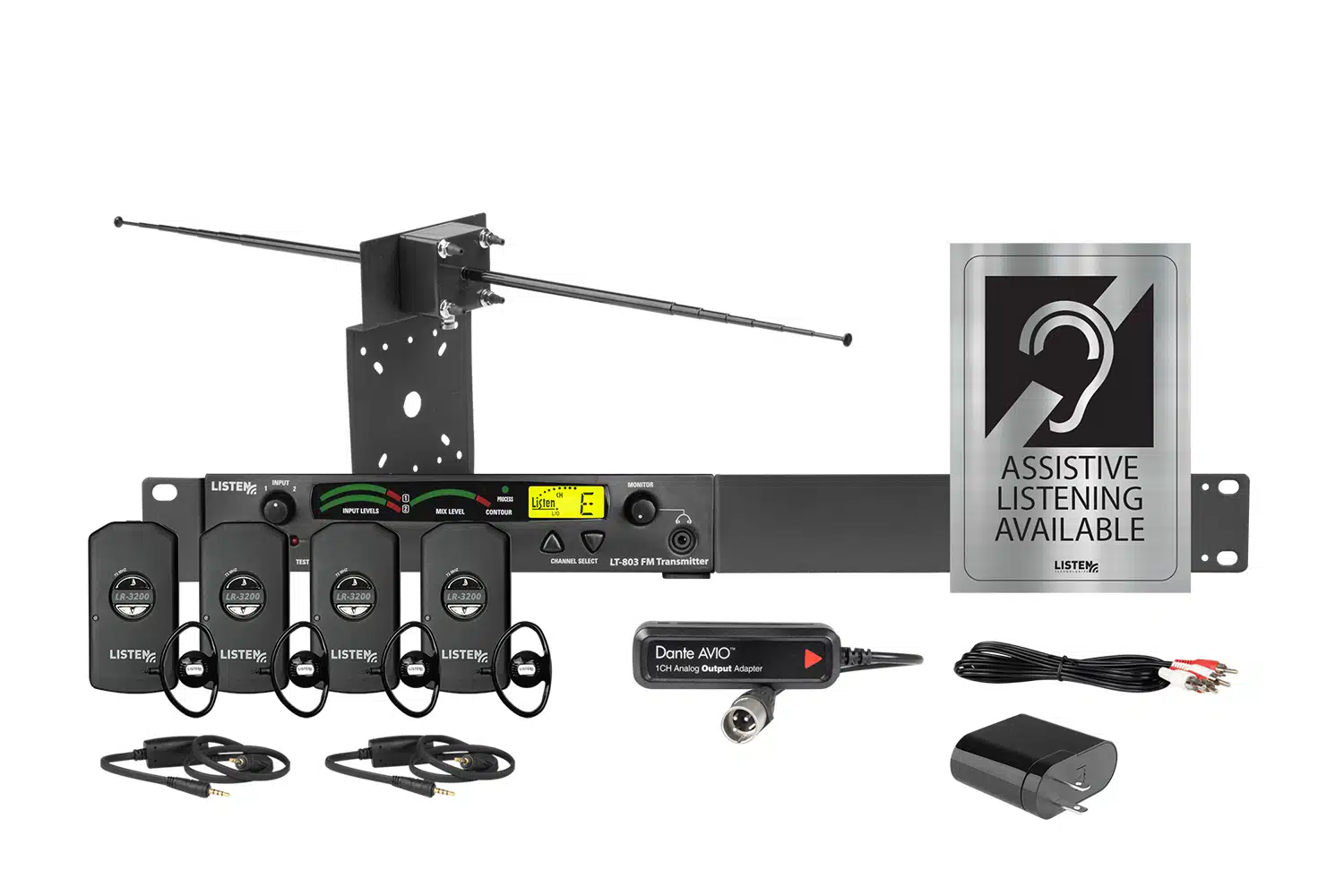

Includes

One (1) LT-803-072-01 3-Channel RF Transmitter (72 MHz)
One (1) LA-465 Dante 1 Channel Output XLR Adapter (POE required)
One (1) LA-122 Universal Antenna Kit (72 MHz and 216 MHz)
One (1) LA-326 Universal Rack Mounting Kit
Four (4) LR-3200-072 Intelligent DSP RF Receiver (72 MHz)
Four (4) LA-401 Universal Ear Speaker
Two (2) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)
One (1) LA-423-01 4-Port USB Charger
One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Low priced solution for meeting your installed assistive listening needs
  • Dante adapter enabled
  • Three (3) frequencies make it simple to install, manage and use
  • 100 % Digital – Listen receivers are digitally-tuned so the transmission won’t drift
  • Long transmission range ensures coverage for the entire venue
Configurations & Architectural Specs

Configurations

LS-31-072-D Listen IDSP Essentials Level 2 Stationary RF System (72 MHz) (Dante)

Architectural Specs

Furnish and install an RF wireless assistive listening system for use by the hearing-impaired. The assistive listening system (ALS) shall be capable of broadcasting on 3 wide band channels and be frequency agile. The system shall be Dante audio network compatible via the LA-456 Dante adapter. The ALS system shall have a remote mounted universal antenna kit allowing maximum coverage of the listening area.  The ALS system shall have 62 dB SNR or greater and have an audio frequency response of 50 Hz – 15 kHz (±3 dB), end-to-end. Receivers shall be frequency agile to 3 wide band frequencies set with a “channel select” mode. The receivers will incorporate a stereo headset jack that allows the user to plug in either a mono or stereo headphone and listen to audio normally. The receivers shall incorporate automatic battery charging circuitry for recharging of the Lithium Ion battery. The receiver shall fully charge in under 2.5 hours and have a battery run time of over 24 hours.  The Listen LS-31-072-D product is specified.

Furnish and install the following:
Listen Technologies LT-803-072-01 3-Channel RF Transmitter (72 MHz) (Qty: 1 ea.)
Listen Technologies LA-122 Universal Antenna Kit (72 MHz and 216 MHz) (Qty: 1 ea.)
Listen Technologies LA-326 Universal Rack Mounting Kit (Qty: 1 ea.)
Listen Technologies LR-3200-072 Intelligent DSP RF Receiver (72 MHz) (Qty: 4 ea.)
Listen Technologies LA-401 Universal Ear Speaker (Qty: 4 ea.)
Listen Technologies LA-430 Intelligent Earphone/Neck Loop Lanyard (Qty: 2 ea.)
Listen Technologies LA-423-01 4-Port USB Charger (Qty: 1 ea.)
Listen Technologies LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m) (Qty: 1 ea.)
Listen Technologies LA-304 Assistive Listening Notification Signage Kit. (Qty: 1 ea.)
Listen Technologies LA-465 Dante 1 Channel Output XLR Adapter (POE required) (Qty: 1 ea.)

Product Specifications
Specification LS-31-072-D

Physical

Shipping Weight 13.08 lbs. (5.94 kg)
