Overview

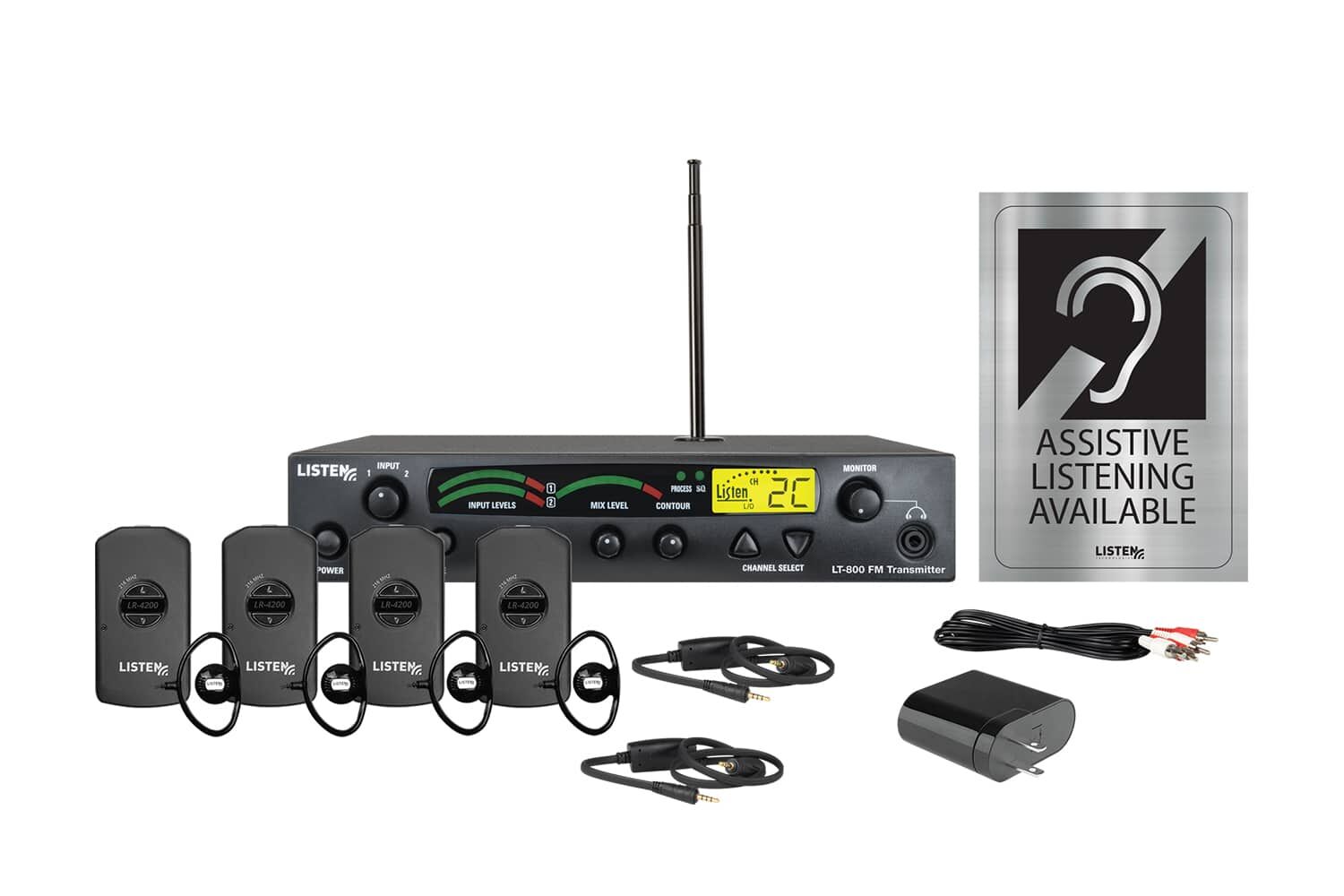

The LS-53 Stationary 216 MHz RF System from Listen Technologies is a complete package that makes it quick and easy to offer a single-channel assistive listening solution to clients, customers, visitors, and more.

The LS-53 includes our LT-800-216 216 MHz Stationary RF Transmitter and four (4) high-performance LR-4200-216 iDSP receivers, as well as all of the accessories needed to provide assistive listening right away. The included telescoping antenna provides excellent transmitter range, and the notification signage kit (LA-304) helps ensure compliance with ADA requirements.

The LS-53 also comes complete with universal ear speakers, intelligent earphone/neck loop lanyards, a four-port USB charger, and an RCA cable. The complete system is great for meeting the needs of small or medium-size venues with a capacity of up to 100 people.

Includes

  • One (1) LT-800-216-01 Stationary RF Transmitter (216 MHz)
  • One (1) LA-102 Telescoping Top Mounted Antenna (216 MHz)
  • Four (4) LR-4200-216 Intelligent DSP RF Receiver (216 MHz)
  • Four (4) LA-401 Universal Ear Speaker
  • Two (2) LA-430 Intelligent Earphone/Neck Loop Lanyard
  • One (1) LA-423 4-Port USB Charger
  • One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 m)
  • One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Complete system including transmitter and four receivers
  • Advanced iDSP receivers provide outstanding clarity and audio performance
  • LT-800-216 transmitter and telescoping antenna offer excellent range and coverage
  • Includes four universal ear speakers and two integrated neck loops/lanyards Four-port USB charger, compliance signage, and RCA cable also included for immediate set up
Configurations & Architectural Specs

Configurations

LS-53-216 Listen iDSP Prime Level I Stationary RF System (216 MHz)

Architectural Specs

Furnish and install an RF wireless assistive listening system for use by the hearing-impaired. The assistive listening system (ALS) shall be capable of broadcasting on 57 channels and be frequency agile. The RF receiver shall be capable of receiving on 57 wide and narrow band channels. The device shall tune to a single channel and user shall not be able to change the channel. The receiver shall have a signal-to-noise ratio of 70 dB or greater and shall have an audio frequency response of 50 Hz – 15 kHz (±3 dB). The device shall employ a unique DSP SQTM noise reduction technology. The unit shall have a programmable squelch circuit. The unit shall incorporate a multi-functional display that indicates battery status, inventory number and channel. The device shall have the option of being lanyard or belt clip worn and the lanyard shall have the option of an integrated DSP driven neck loop that automatically senses and sends optimized audio signals directly to hearing aids and cochlear implants equipped with telecoils. The neck loop shall have a field strength of 400 mA/m (+/- 3dB) and frequency response of 100Hz to 5kHz (+/- 3 dB ref 1kHz). The device shall have a USB connector used for inventory control, set up, charging and firmware upgrades. The device shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The device shall have additional charging contacts to allow multiple charging options. The ALS system shall have 70 dB SNR or greater, end-to-end. Listen Technologies Corporation products are specified.

Furnish and install the following:

Listen Technologies LT-800-216-01 Stationary RF Transmitter (216 MHz) (Qty: 1 ea.)

Listen Technologies LA-102 Telescoping Top Mounted Antenna (216 MHz) (Qty: 1 ea.)

Listen Technologies LR-4200-216 Intelligent DSP RF Receiver (216 MHz) (Qty: 4 ea.)

Listen Technologies LA-401 Universal Ear Speaker (Qty: 4 ea.)

Listen Technologies LA-430 Intelligent Earphone/Neck Loop Lanyard (Qty: 2 ea.)

Listen Technologies LA-423 4-Port USB Charger (Qty: 1 ea.)

Listen Technologies LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (Qty: 1 ea.)

Listen Technologies LA-304 Assistive Listening Notification Signage Kit. (Qty: 1 ea.)

Product Specifications
SpecificationLS-53-216

Physical

Shipping Weight10.0 lbs. (4.5 kg)
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QWhat is the function of SQ?
ATo reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.
QCan the LR-4200 be used with multiple transmitters?
AYes, but unlike the LR-5200, it cannot be programmed to lock out channels.
QWhat is the transmission range of the LS-53-216 system?
AUp to 750 ft. (213.4 m) with the included telescoping antenna (LA-102). For greater range up to 3,000 ft. (914.4 m) use the universal antenna kit options found in the Level II and III Prime systems.
QWhat is the warranty on the Lithium-ion battery?
AThe Lithium-ion battery has a 1 year warranty. All other accessories have a 90-day warranty. Listen Warranty
QWhat are the ADA changes related to assistive listening systems?
ASimply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm
QIs there a limit to the number of transmitters I can use in one room?
AYes. The 72 MHz LT-800-072 has a maximum of (8) eight.
QWhat type of battery technology does the LR-4200 use?
AThe LR-4200 uses a non-proprietary field replaceable Lithium Ion battery.
QHow long does it take to fully charge the LR-4200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QHow many LR-4200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long will the LR-4200 run on a fully charged battery?
AThe LR-4200 will run continuously for 8 hours on a fully charged battery
