Loopworks Measure Receiver

Item:LOOPWORKS-R1 Price:$395.00MSRP

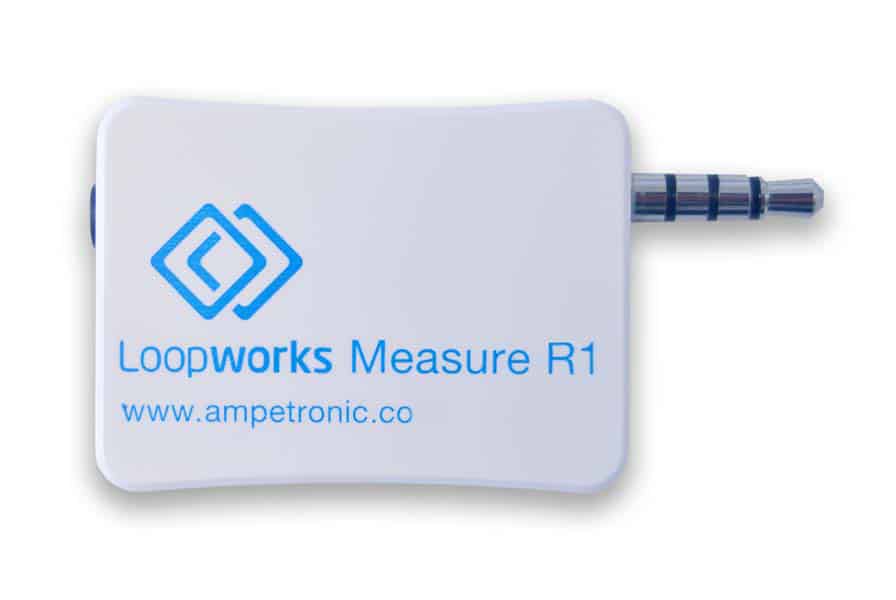

The R1 Receiver is a high quality audio induction loop receiver with a vertically mounted pick up coil. Designed to be used in conjunction with the Loopworks Measure iOS App the R1 Receiver and App together become the most accurate, dedicated field strength meter (FSM) available.

Ampetronic customers can now download their Measure App FREE from the iTunes store and order their Loopworks Measure R1 Receiver field strength meter. Please note that the Loopworks Measure iOS App is currently only available through iTunes store and will only run on an iOS device; that is an iPhone, iPod Touch or an iPad device running iOS 11 or higher.

Please Note: The app supports use of the R1 with Apple lightning to 3.5mm adapters but does not currently support USB-C devices. We are working on an update to bring USB-C support to Loopworks Measure as soon as possible.

This product is available through authorized resellers.

Request Quote

In stock


  • Simple meter mode when not signed into Loopworks tests field strength, frequency response and background noise


When signed in to Loopworks

  • Synchronises data with Loopworks online database using host device data connection
  • Commissioning test: evaluates the complete performance of a system against IEC 60118-4 for certification
  • Quick check test: designed as a basic evaluation of a pre-installed system against IEC 60118-4
  • Freestyle test: evaluates the functional performance of a system against IEC 60118-4
  • Site assessment test: evaluates a site using a simple test loop and capture results to determine the type installation required.
  • LoopLink to connect the app to C Series and D Series networkable drivers

Included Accessories

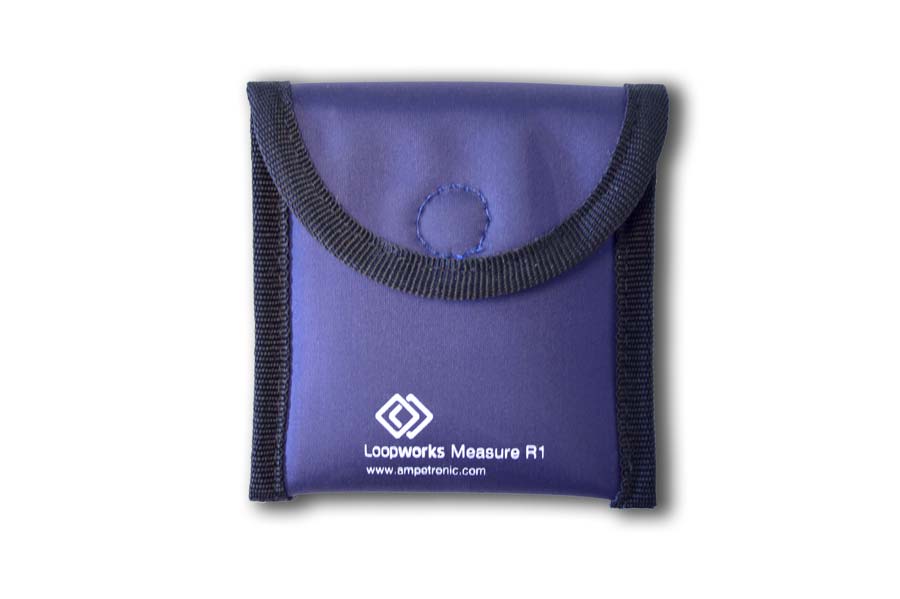

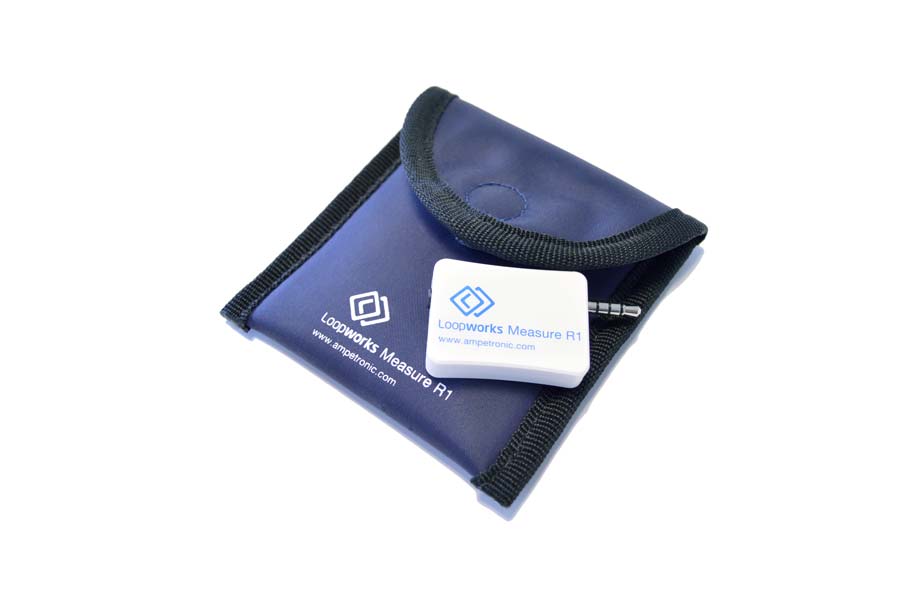

  • Soft carry pouch
  • User guide/handbook
  • Calibration certificate*

*Valid for 1 year from date of calibration. R1 units can be returned to Ampetronic or an approved repairer for re-calibration for a small fee. Please create a support ticket in Loopworks, contact [email protected] or call +44 (0) 1636 610062 for more information.

Also Needed



Frequency Response50 Hz to 8 kHz ± 0.25 dB, 40 Hz to 10 kHz ± 0.5 dB, 30 Hz to 15 kHz ± 0.3 dB
Gain StabilityBetter then ± 0.25 dB over all conditions


Audio Input/Output3.5 mm 4-pole Jack plug for connection to Apple iOS device, 3.5 mm 3-pole jack socket for monitoring with stereo headphones


Coil OrientationVertical when held upright
Reference Level400 mA/m (In field strength mode)


Shipping Weight2.3 oz. (65 g) with a 1 lbs. (0.45 kg) minimum
Dimensions (H x W x D)2.05 x 1.09 x 0.38 in. (52.0 x 27.5 x 9.5 mm)
Weight0.36 oz. (10 g)


Temperature - Operation14 to 113 ºF (-10 to 45 ºC)
Temperature - Storage-4 to 167 °F (-20 to 75 °C)
