$299.00 MSRP

This product is available through authorized resellers.

Request Quote
Overview

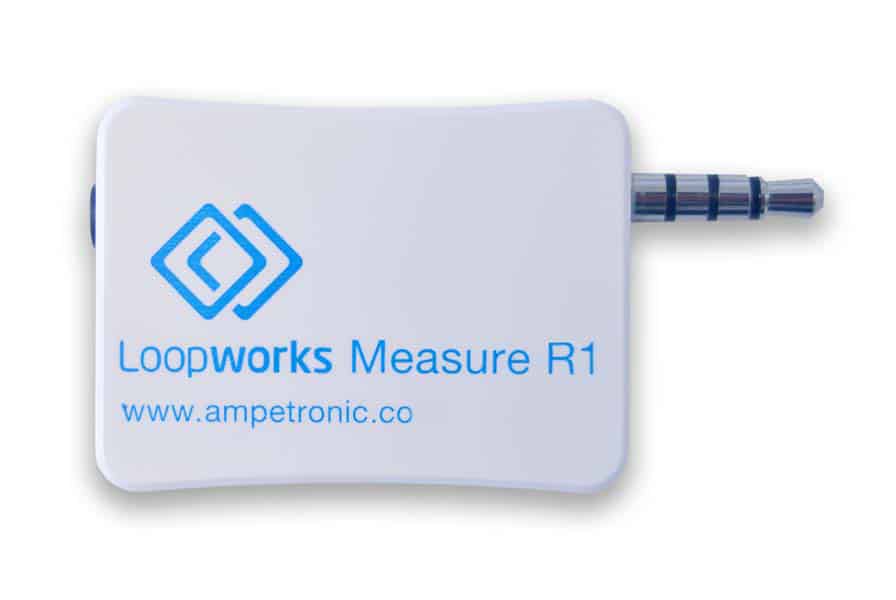

The R1 simply plugs into the headphone jack of the iOS device and along with the free downloadable App turns the iDevice into a Loopworks Measuring Receiver. The R1 has built-in circuits to eliminate the variation between iDevices and to set the correct levels. The R1 comes with a quick start guide, a soft pouch for storage, and includes free access to the Loopworks system database for 12 months. After this time there will be a recurring fee of $100.00 per year to access the premium features of the Loopworks system database.

Includes

One (1) R1 Loopworks Measure Receiver
One (1) Quick Start Guide
One (1) R1 Handbook

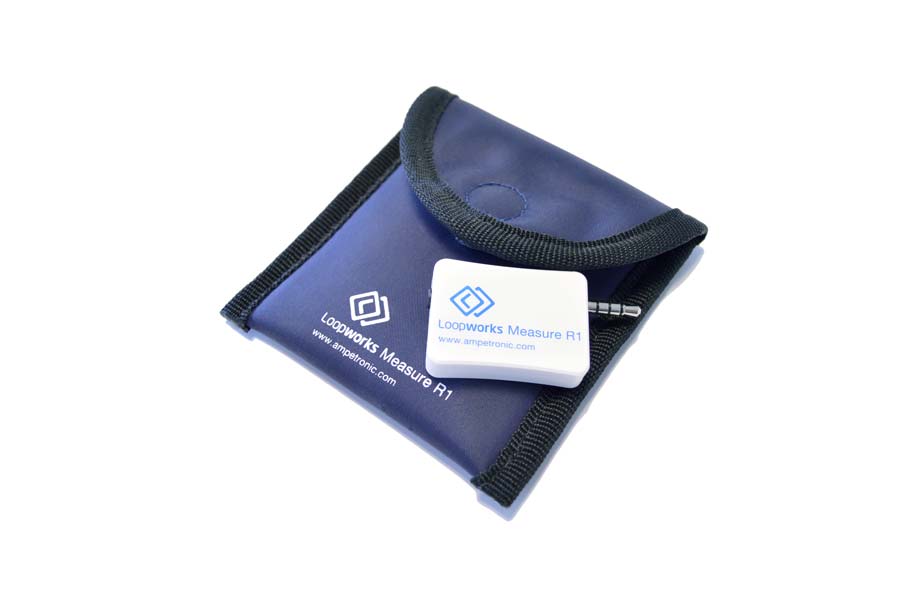

One (1) Soft Pouch



Initial set-up of the R1 is required

Must provide User Name and Email at time of purchase

Highlights

  • Simple to look at, but it’s deceptively smart
  • Capabilities of an FSM with the power of an iPhone
  • Calibrates itself against the device
  • Plug in headphone to listen to the signal you’re measuring

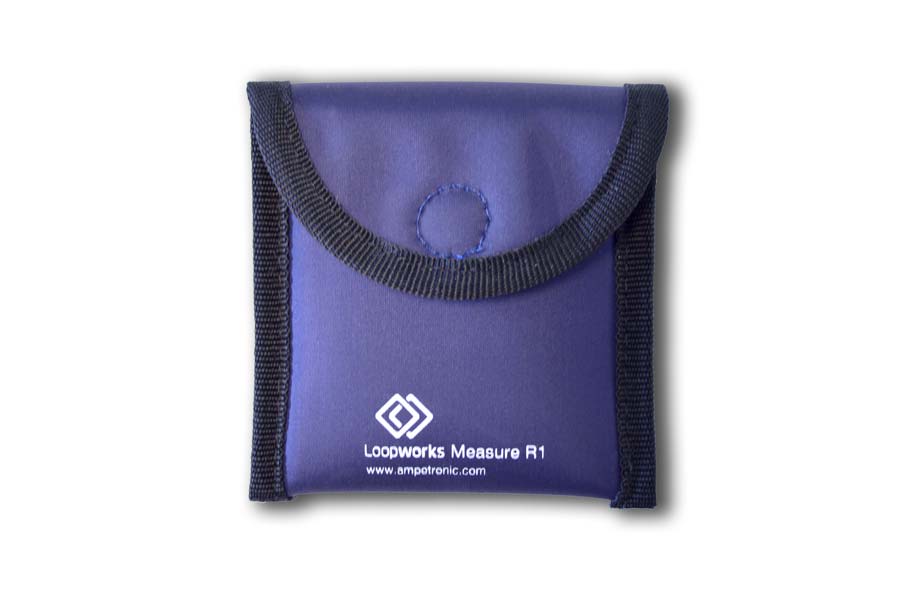

  • Soft pouch allows for safe storage
Configurations & Architectural Specs

Configurations

R1 Loopworks Measure Receiver

Architectural Specs

The Loopworks measure receiver shall measure the background noise by determining the level of background magnetic field present in the intended location for the loop system. It shall measure the field strength delivered by the system. The meter shall measure the performance of the frequency spectrum required by IEC60118:2006 standard. It shall have an audio output to allow to the signal to be heard through a headphone or earspeaker. The R1 Loopworks Measure Receiver is specified.

Product Specifications
Specification R1

Audio

Frequency Response 50 Hz to 8 kHz ± 0.25 dB, 40 Hz to 10 kHz ± 0.5 dB, 30 Hz to 15 kHz ± 0.3 dB
Gain Stability Better then ± 0.25 dB over all conditions

Interconnections

Audio Input/Output 3.5 mm 4-pole Jack plug for connection to Apple iOS device, 3.5 mm 3-pole jack socket for monitoring with stereo headphones

Loop

Coil Orientation Vertical when held upright
Reference Level 400 mA/m (In field strength mode)

Physical

Shipping Weight 2.3 oz. (65 g) with a 1 lbs. (0.45 kg) minimum
Dimensions (H x W x D) 2.05 x 1.09 x 0.38 in. (52.0 x 27.5 x 9.5 mm)
Weight 0.36 oz. (10 g)

Environmental

Temperature - Operation 14 to 113 ºF (-10 to 45 ºC)
Temperature - Storage -4 to 167 °F (-20 to 75 °C)
Used With
FAQ
Q What is Listen Technologies product warranty?
A Click for Listen's product warranty.
