Overview

Order this if you need a replacement or a back-up unit in case of failure.

Includes

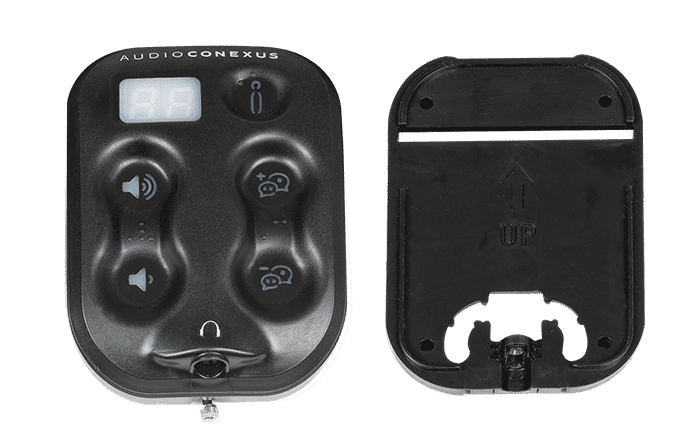

One (1) LN-100E-SBC Listen Navilution Seat Back Controller (SBC)
One (1) LNA-100E-SBCM Navilution Seatback Controller Mounting Plate
One (1) Quick Start Guide

Highlights

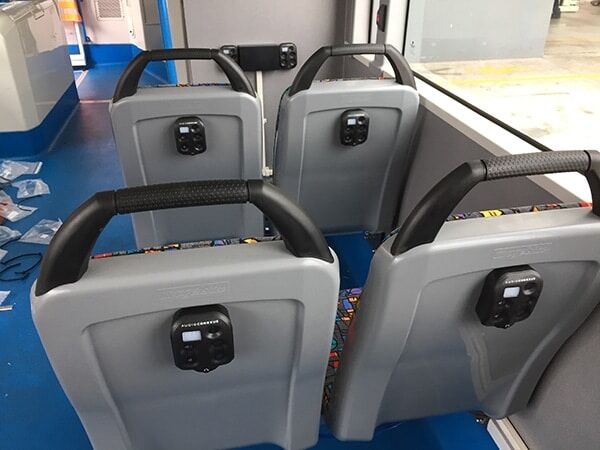

  • Passengers plug their headsets into the Seatback Controller and use it to select language, volume level, and More Info.
  • Rugged and reliable.
  • ERGO designed for passengers with sight challenges.
  • Simple installation using daisy chained CAT5 cables.
  • Includes mounting bracket.
Configurations & Architectural Specs

Configurations

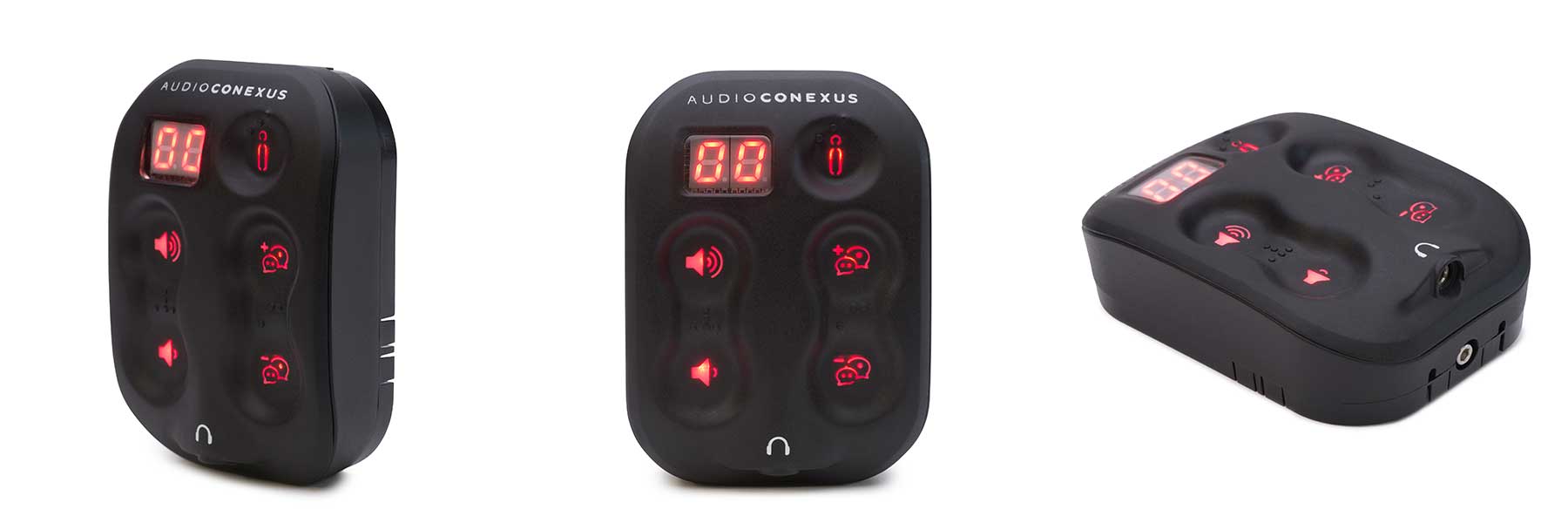

LN-100E-SBC Navilution EVO Seatback Controller

Product Specifications
Specification LN-100E-SBC

Physical

Dimensions (H x W x D) 104 mm (4.09 in.) x 75.76 mm (2.98 in.) x 30.41 mm (1.20 in.)
Unit Weight 0.09 kg (0.2 lbs)
Shipping Weight 0.45 kg (1.0 lbs.)
Mounting Hardware ABS black seat mount bracket (included).

Controls

User Controls Backlit (Red LED), capacitive touch switch: Volume Up, Volume Down, Channel Up, Channel Down, More Info.

Indicators

Channel Display Dual, 7 Segment LED display (Red).

Interconnections

SBC Loom Port(s) Dual RJ-45, Dedicated ports for (daisy chain) connection from Server to SBC and SBC to SBC.
Headphone Jack 3.5mm / 1/8in, TRS

Audio - Headphone Output

Speaker Load 16 - 32 ohm impedance
Max Output power 26 mW maximum, 32 ohm load.
Nominal Level -9.5dBu
Frequency Response +/-3dB from 200Hz to 15KHz
Noise Floor -78dBu
Signal-to-Noise Ratio 68dB
Total Harmonic Distortion 0.3%
Dynamic Range 76dB

Environmental

Temperature - Operating 0 C to +40 C (32 F to +104 F)
Temperature - Storage -20 C to +50 C (-4 F to +122 F)
Relative Humidity 76dB

Compliance

Standards FCC, IC, RoHS, TUV, CE
Used With
Accessories
