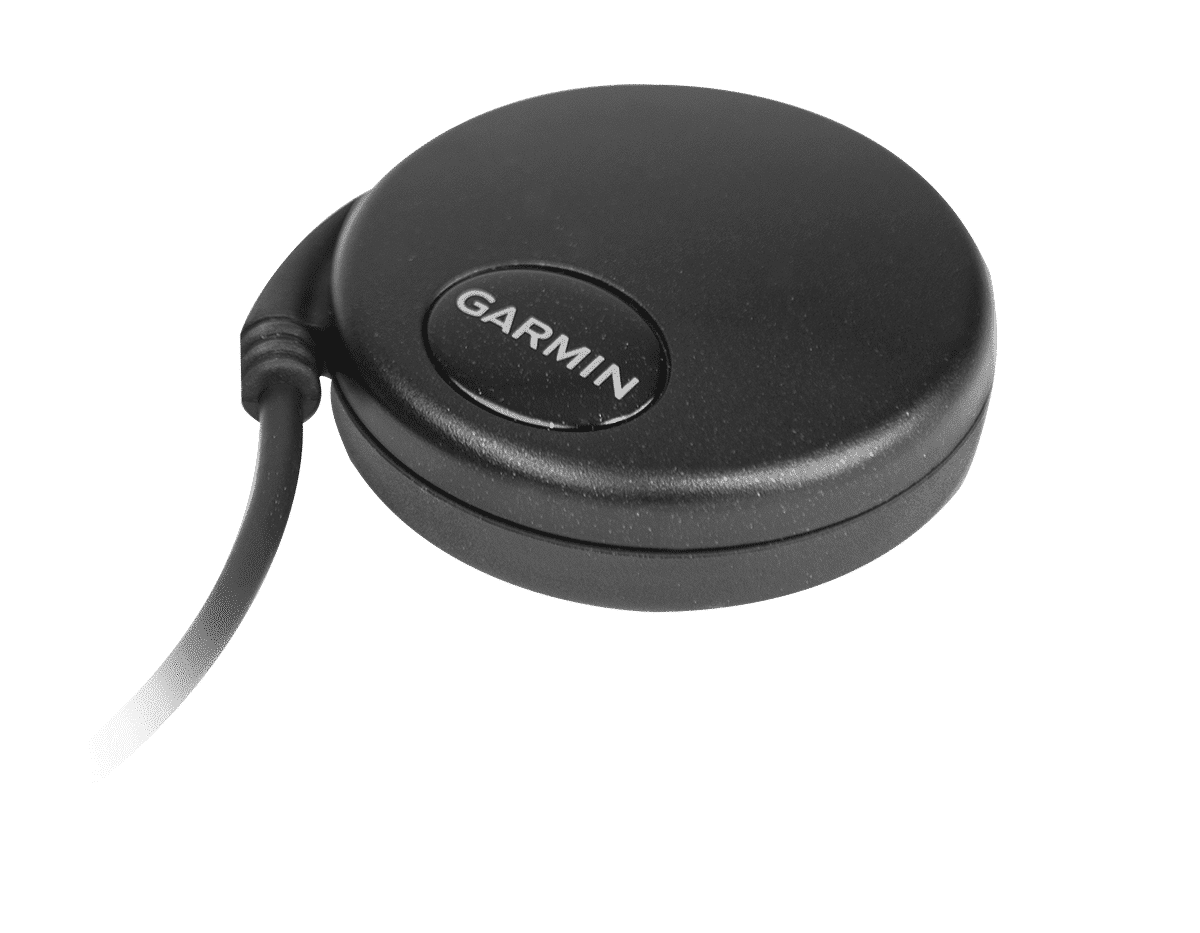

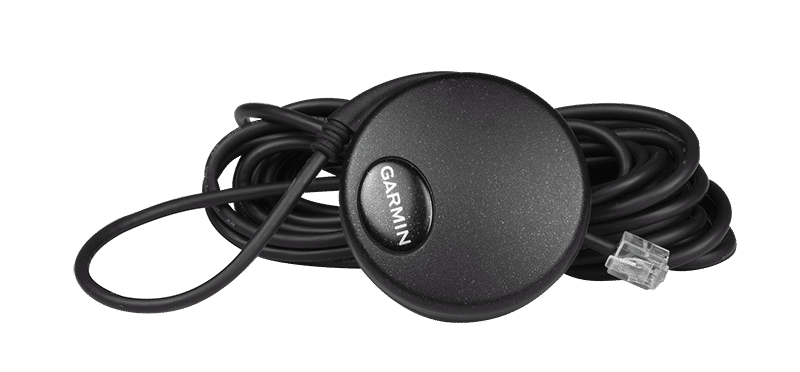

Navilution GPS Receiver

Item:LN-050-GPSR

Order this if you need to replacement or a back-up unit in case of failure.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) LN-050-GPSR Navilution GPS Receiver

Highlights

  • Replacement or back-up GPS Receiver.

Specs

+Physical

Dimensions (H x Dia)19.5mm (0.77 in.) x 61mm (2.4 in.)
Unit Weight0.09 kg (0.2 lbs.)
Shipping Weight0.45 kg (1.0 lbs.)
Enclosure MaterialPolycarbonate thermoplastic
Cable Length4.94m (16.21 ft.)
Mounting HardwareGarmin GPS18 Suction Cup Mount (Included)

+Interconnections

GPS ConnectorRJ11

+Receiver / Antenna

Receiver / AntennaDifferential DGPS capability using real-time WAAS correction yielding position accuracy of less than 3 meters.
Receiver Sensitivity -185 dBW minimum
Accuracy <3 Meter, 95% typical

+Environmental

Temperature - Operating-30C to +80C (-22F to +176F)
Temperature - Storage-40C to +90C (-40F to +194F)
Weather ResistanceWaterproof to IEC 60529 IPX7

+Compliance

StandardsFCC, CE
