- Replacement or back-up NEXT Server.

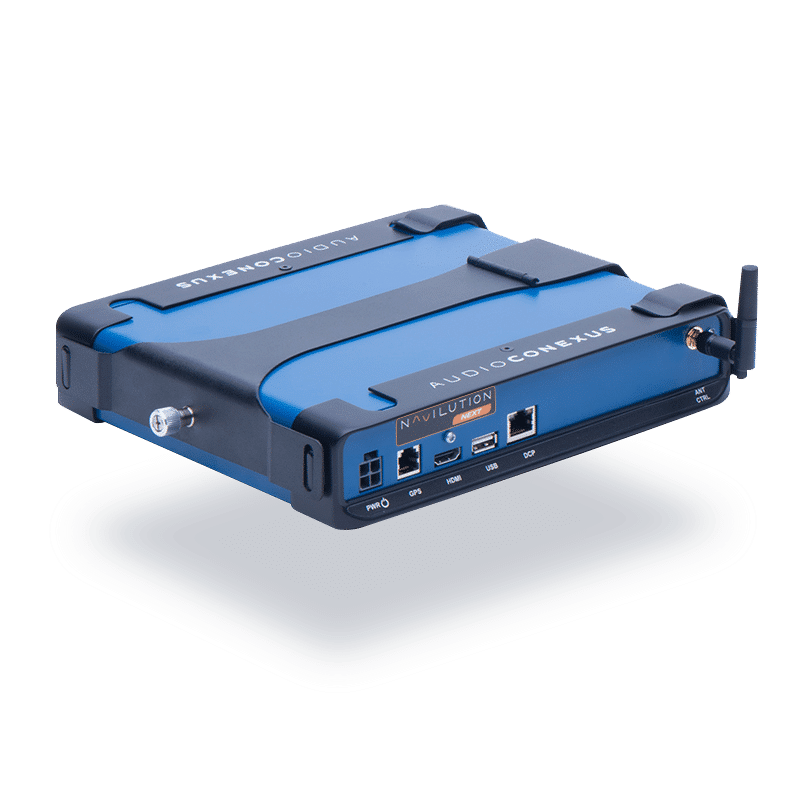

Navilution NEXT Server
Item:LN-200N
The Navilution NEXT Server is a replacement or back-up server for Navilution NEXT and Listen EVERYWHERE systems. Order this if you need to replace a server or you want a spare or back-up server in case of failure. It does not include the Display Control Panel or GPS Receiver.
Includes
One (1) LN-200N Navilution NEXT Server
One (1) LNA-041-WFA Listen Navilution WiFi Antenna SMA-Male
One (1) LNA-043-MB Navilution Server Mounting Bracket
One (1) LNA-052-USB Navilution USB xxGB Flash Drive
Also Needed
Specs
+Physical
| Dimensions (H x W x D) | 44.14 mm (1.74 in.) x 236.89 mm (9.33 in.) x 207.27 mm (8.16 in.) |
| Unit Weight | 1.54 kg (3.4 lbs.) |
| Shipping Weight | 2.27 kg (5 lbs.) |
+Controls

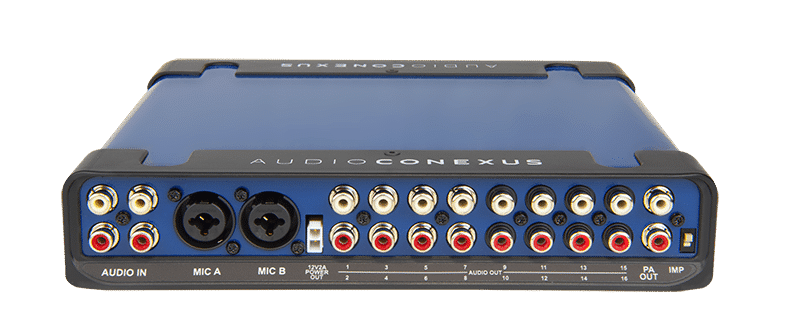

| IMP Switch | PA Out Mic/line switch. Up- Line, nominal -13dBu / Down-Mic, nominal -59dBu |
+Indicators
| Power / Status LED | Solid Green under normal operation. Flashes Green when uploading tours or firmware updates. |
| DCP Port Green LED | Solid Green, physical link established. Flashing Green, data transfer. |

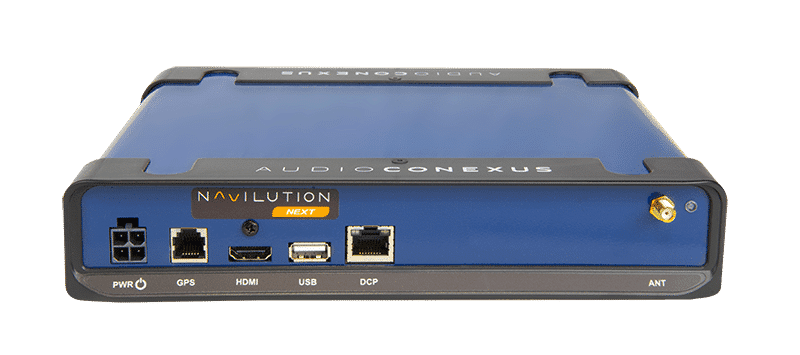

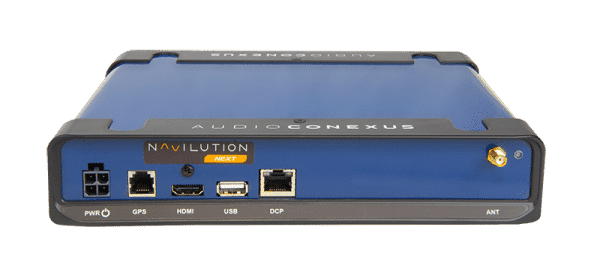

+Interconnections - Rear Panel
| Power | Molex CONN HEADER R/A 4POS 5.7MM |
| GPS | RJ-11, Dedicated connection to LN-050-GPSR GPS receiver. |
| HDMI | (High Definition Multimedia Interface) Connects to HDMI enabled monitor for displaying video segments. |
| USB | Type A 2.0 female |
| DCP | RJ-45, Dedicated port for LN-075-DCP Display Control Panel connection. |
| ANT | SMA Antenna, Female for Wi-Fi Control. |
+Audio - In
| Nominal Level | -10dBu |
| Max Level | +13dBu |
| Noise Floor | -75dBu |
| Dynamic Range | 88dB |
| Impedance | 3K Ohms |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Signal-to-Noise Ratio | 65dB |
| Total Harmonic Distortion | < 0.05 @ 1KHz |
+Audio - Mic A & B
| Nominal Level | -45dBu to -35dBu |
| Max Level | -19dBu |
| Impedance | 100K Ohms |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Total Harmonic Distortion | 0.04% @ 1KHz |
+Audio - PA Out
| Nominal Level | -22dBu |
| Max Level | -10dBu |
| Noise Floor | -69dBu |
| Dynamic Range | 59dB |
| Frequency Response | +/-4dB from 20Hz to 15KHz |
| Total Harmonic Distortion | < 0.2% @ 1KHz |
+Audio - Out
| Nominal Level | -15dBu |
| Max Level | -3dBu |
| Noise Floor | -75dBu |
| Dynamic Range | 72dB |
| Frequency Response | +/-1dB from 20Hz to 20KHz |
| Total Harmonic Distortion | < 0.1 % @ 1KHz |
+AC Power Supply (LA-211-0X)
| AC Power Supply Input | 120 - 240VAC, 50/60Hz, 2.5A |
| AC Power Supply Output | 24VDC, 10A |
| Connector | Molex CONN RCPT HSG 4POS 5.70MM |
| Fuse | 20A Blade Fuse, ATO (Regular). |
| Compliance | FCC, CE |
+DC Power Cable (LNA-040-PC)
| Connector | Molex CONN RCPT HSG 4POS 5.70MM |
| Fuse | 20A Blade Fuse, ATO (Regular). |
| Cable Length | 183cm (72 in.) |
+Environmental
| Temperature - Operating | 0 C to +40 C (32 F to +104 F) |
| Temperature - Storage | -20 C to +50 C (-4 F to +122 F) |
| Relative Humidity | 0 - 95%, Non condensing |
+Compliance
| Standards | FCC, IC, RoHS, TUV, CE |
+Server
| Programming | Via Cloud Software: Navilution Cortex software for route building and content management. |
| Max Channels | 16 |
| Audio Media File Format | mp3, 128kbps, mono |
| Audio Bit Depth | 16 Bit |
| Audio Sampling Rate | 44.1KHz |
| Video Media File Format | MP4 |
| Max Trigger points | 120 per route |
| Wi-Fi Control | 2.4Ghz HTTP |
| * Specifications subject to change without notice. |
Accessories
How-To's
FAQs
+Why should I choose the Navilution System from Listen?
For over 23 years, Listen has been a quality developer and manufacturer of reliable and mission-critical audio-visual equipment to the world. Rest assured, you know that Listen is constantly improving and supporting its products. And our worldwide audio-visual partners will be there to support you in the design, installation, and maintenance of your system today and as you expand to meet future demands.
+How do I get support for my Navilution system?
Call your local reseller you purchased it from and/or call Listen directly. We provide support in most countries worldwide.
+What are the options for power on a Navilution Server?
The Navilution Server can be powered from a vehicle DC power source that is 12VDC to 24VDC or it can be powered from an 100-240 VAC, 50-60Hz AC power supply.
+I need a single language system going to the PA system in my vehicle or vessel – which system should I purchase?
Any Navilution system can be used for your PA system. However, if you ever wanted to add seatback controllers, you would want to use a Navilution EVO system or if you ever wanted to upgrade to a Listen EVERYWHERE system for Wi-Fi commentary delivery to smart devices, you would want to use a Navilution NEXT system.
+How many channels does Navilution EVERYWHERE System have?
The Navilution EVERYWHERE System has 16 channels that can be expanded by duplicating systems.
+I already have my audio stories recorded. Can they be used on Navilution?
Yes. Simply import them into Cortex, Listen’s proprietary on-line tour development software.
+What format should the audio files be in?
Audio files need to be in .mp3 128kbps Mono 44.1khz format. Whatever format your audio files are in they can easily be converted to meet those parameters using free software on the internet. These files will have to follow a specific file naming protocol so that Cortex can recognize different language files.
+How do you get route information, GPS coordinates and tour audio onto the Navilution server?
Using the proprietary on-line software called Cortex, you do the tour development which includes routing planning and adding GPS trigger points on Google maps, and then uploading your audio stories to your media library. Once completed, you export the audio tour to a USB thumb drive and then simply plug the USB drive into the Navilution Server USB port. Your tour automatically updates the Navilution server.
+Is it possible to have both seatback controllers and a Listen EVERYWHERE on the same Navilution server?
No, not at this point. Stay tuned!
+What are my options for purchasing, installing and supporting my Navilution system in my country?
Listen has many audio-visual integrators throughout the world that are experts in designing, programming, installing, and supporting your system. Contact our Sales team at [email protected] to assist with finding an AV Integrator in your area.
+How do you control a Navilution System?
The most common way is to use the included Display Control Panel (DCP). You can also connect to the Navilution server using a smart phone or tablet.
+What does the Display Control Panel (DCP) do?
This is used by the operator to start and stop automated tours, manually start stories and other functions such as setting the default language for audio out to your PA’s systems speakers as well as notifying the operator which story is next in your playlist.
+How does the GPS work?
To ensure reliable operation of system, a Garmin GPS receiver and remote antenna comes standard with all Navilution systems. The antenna should be mounted outside of the vehicle or vessel to ensure it has a strong signal from GPS satellites.
+What happens if you go into a tunnel or a location where there is no GPS signal?
There are two ways of solving this: 1) Just before entering location of the GPS dead spot, you can GPS trigger an audio story to start with a predefined time delay and then trigger the audio story based on the time; or 2) audio stories can be manually started by the operator.
+Can I GPS trigger commentary when delayed by heavy traffic?
Yes, using Cortex you can set up audio stories for both low and high traffic scenarios, so your passengers remain entertained on routes where high traffic is a challenge.
+Can I GPS trigger audio stories if I go down a street in both directions?
Yes, your audio stories will trigger in both directions. You can assign a directional heading to a GPS trigger which means your audio story will only play based on the direction your vehicle or vessel is moving.
+Does GPS triggering work in highly remote areas?
Yes, we work with many operators around the globe, GPS triggering stories from remote mountain canyons, Norwegian Fjords to Middle Eastern deserts.
+Does the Navilution system support assistive listening?
Yes, and you can deliver GPS triggered ASL stories using video to external screens using HDMI out on the server. With Listen EVERYWHERE, users can stream audio to their hearing aids from their smart devices using Bluetooth.
+Can I play music between audio stories?
Yes, you can use music between audio stories, an option in the online tour development software.
+What is the purpose of the 16 RCA phono connectors?
Primary purpose is to connect to the Listen EVERYWHERE server, but you could connect this to a third-party RF transmitter that transmits audio to wireless RF receivers used by passengers.
