$15.20 MSRP

This product is available through authorized resellers.

Request Quote
Overview

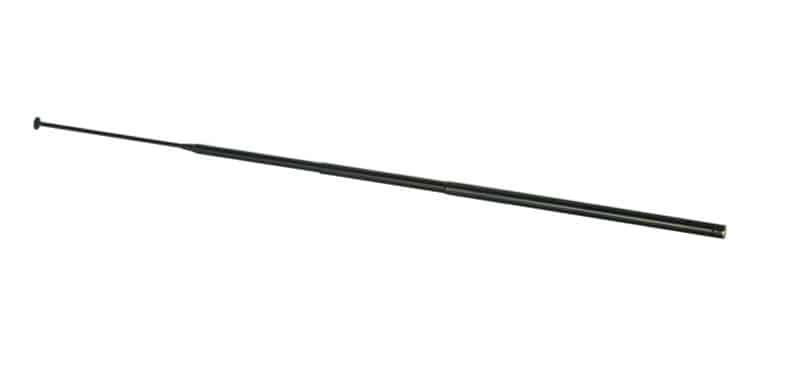

Offering extended coverage and easy installation, the LA-106 Telescoping Top Mounted Antenna quickly mounts to the LT-800-072 Stationary RF Transmitter (72 MHz). The telescoping design offers increased range compared to the LA-101 antenna, and is ideal for setups where space is available to extend the antenna fully.

Includes

One (1) LA-106 Telescoping Top Mounted Antenna (72 MHz)

Highlights

  • Extendable, telescoping antenna offers improved transmission range
  • Designed for use in installations with ample clearance for full extension
  • Compatible with the 72 MHz version of our LT-800 transmitter
Product Specifications
SpecificationLA-106

Interconnections

Thread Diameter10-32

RF

Frequency Range72.025 - 75.950 MHz
Number of Channels57 (17 wide, 40 narrow)
Typical RangeRange up to 198 m / 650 ft.

Physical

Length99 cm (39.00 in.)
ColorBlack
Shipping Weight0.5 kg (1 lb.)
Diameter1.30 cm (0.31 in.)
Weight31 g (1.10 oz.)
Used With
FAQ
QCan the LA-106 be used with other frequencies (216 or 863)?
AThe LA-106 is designed to be used with 72 MHz band only.
QWhat is Listen Technologies product warranty?
AClick for Listen's product warranty.
QWill the LA-106 work with the LA-326 Universal Rack Mount Kit?
ANo. The LA-326 kit is to be used with a BNC connector type antenna kit (LA-125 or LA-126 Antenna Kit for Rack Mount).
QWhat is the clearance of the LA-106?
A40 in.
QHow does the LA-106 connect to the LT-800?
ATop mounted onto a 10-32 screw
