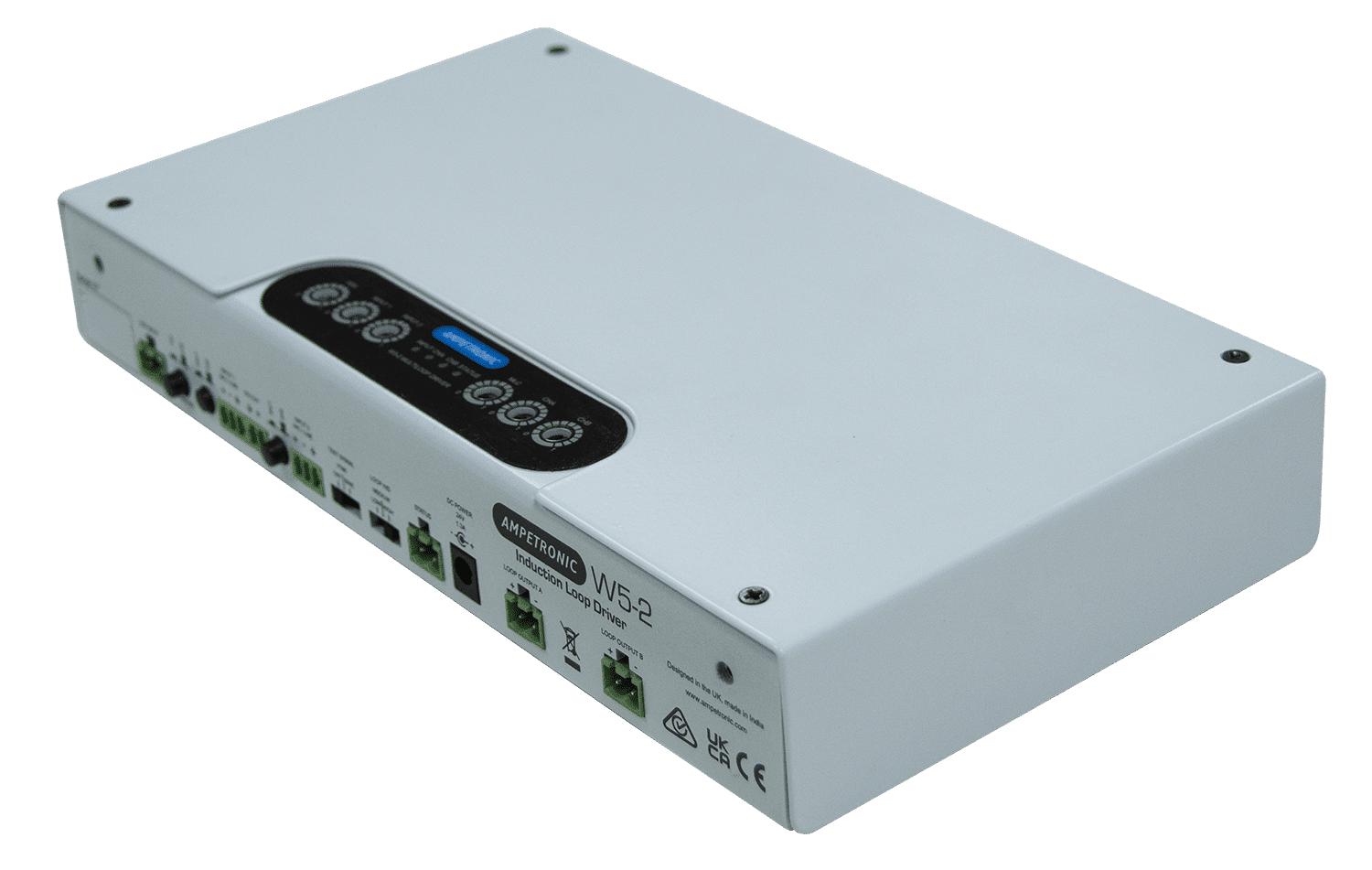

Wall Mount Multi-Loop Hearing Loop Driver

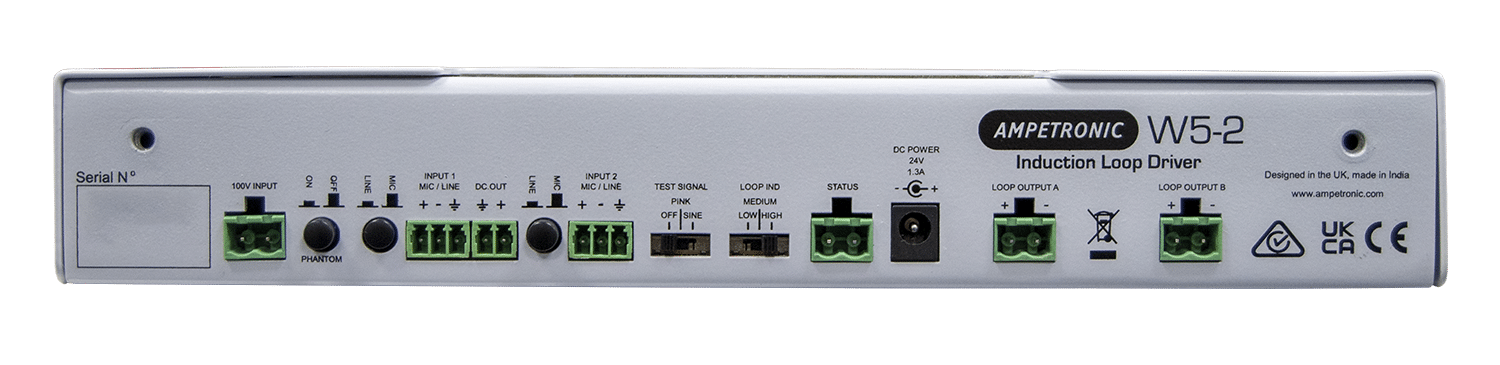

Wall Mount Multi-Loop Hearing Loop Driver - Image 2

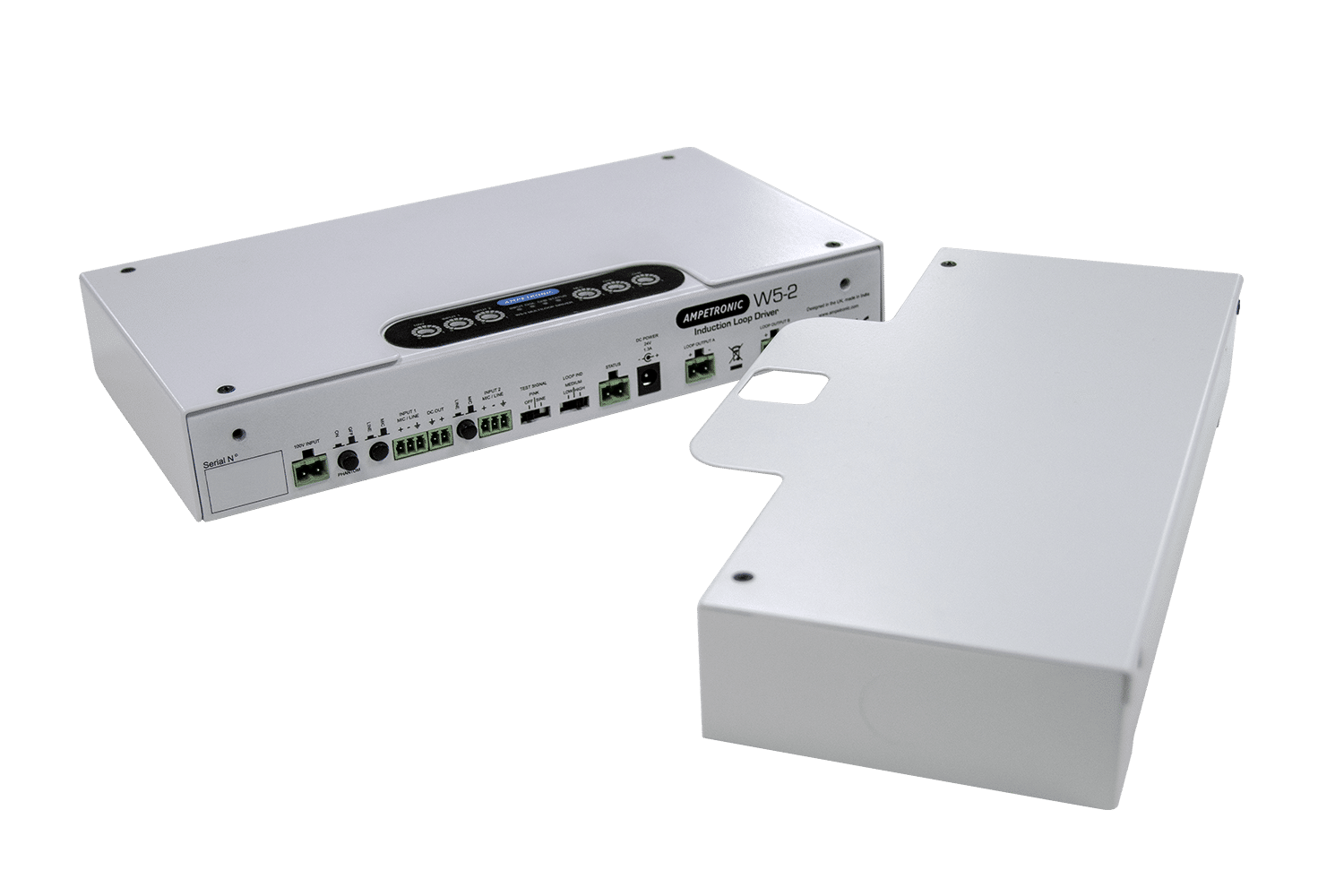

Wall Mount Multi-Loop Hearing Loop Driver - Image 3

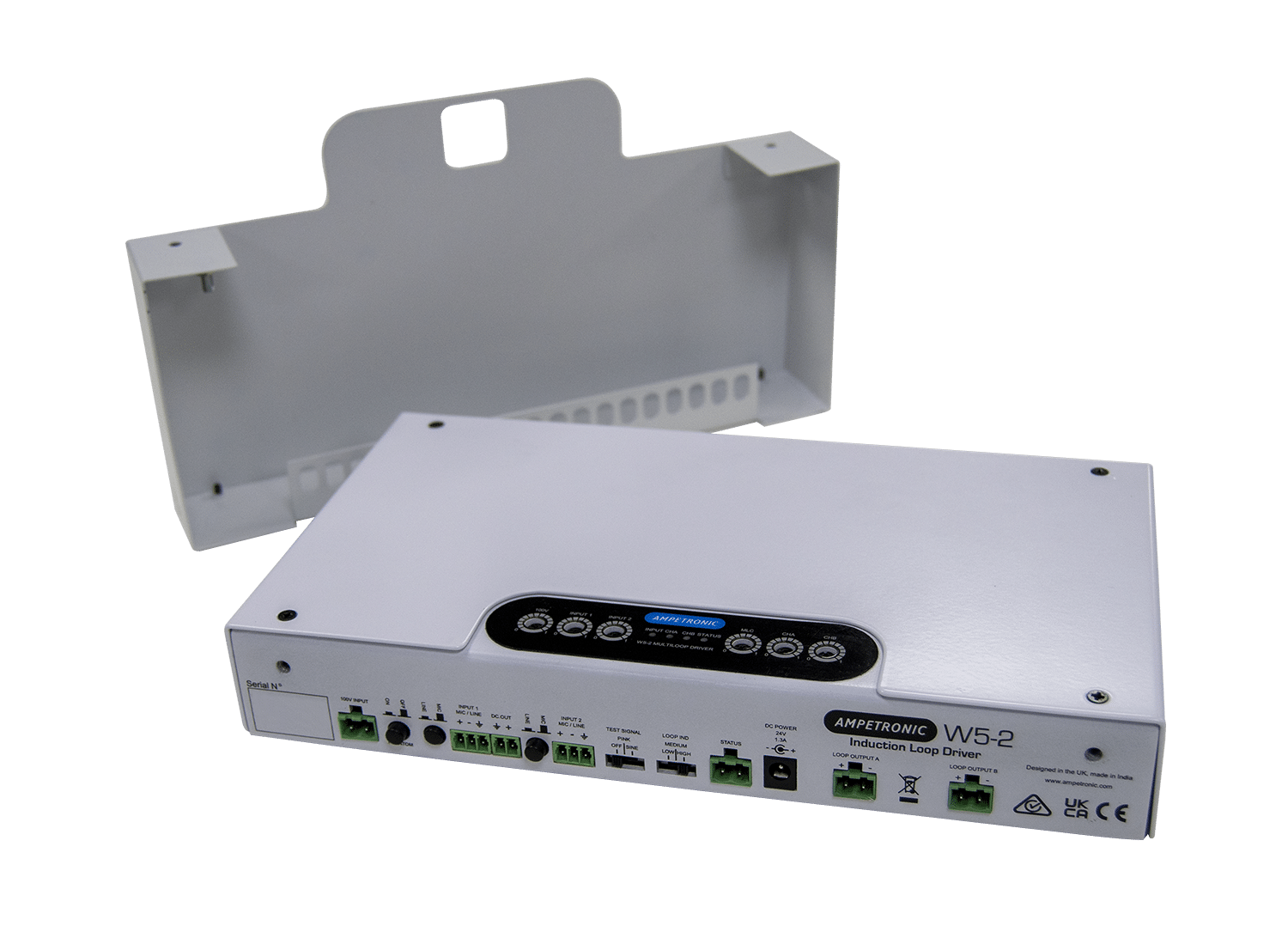

Wall Mount Multi-Loop Hearing Loop Driver - Image 4

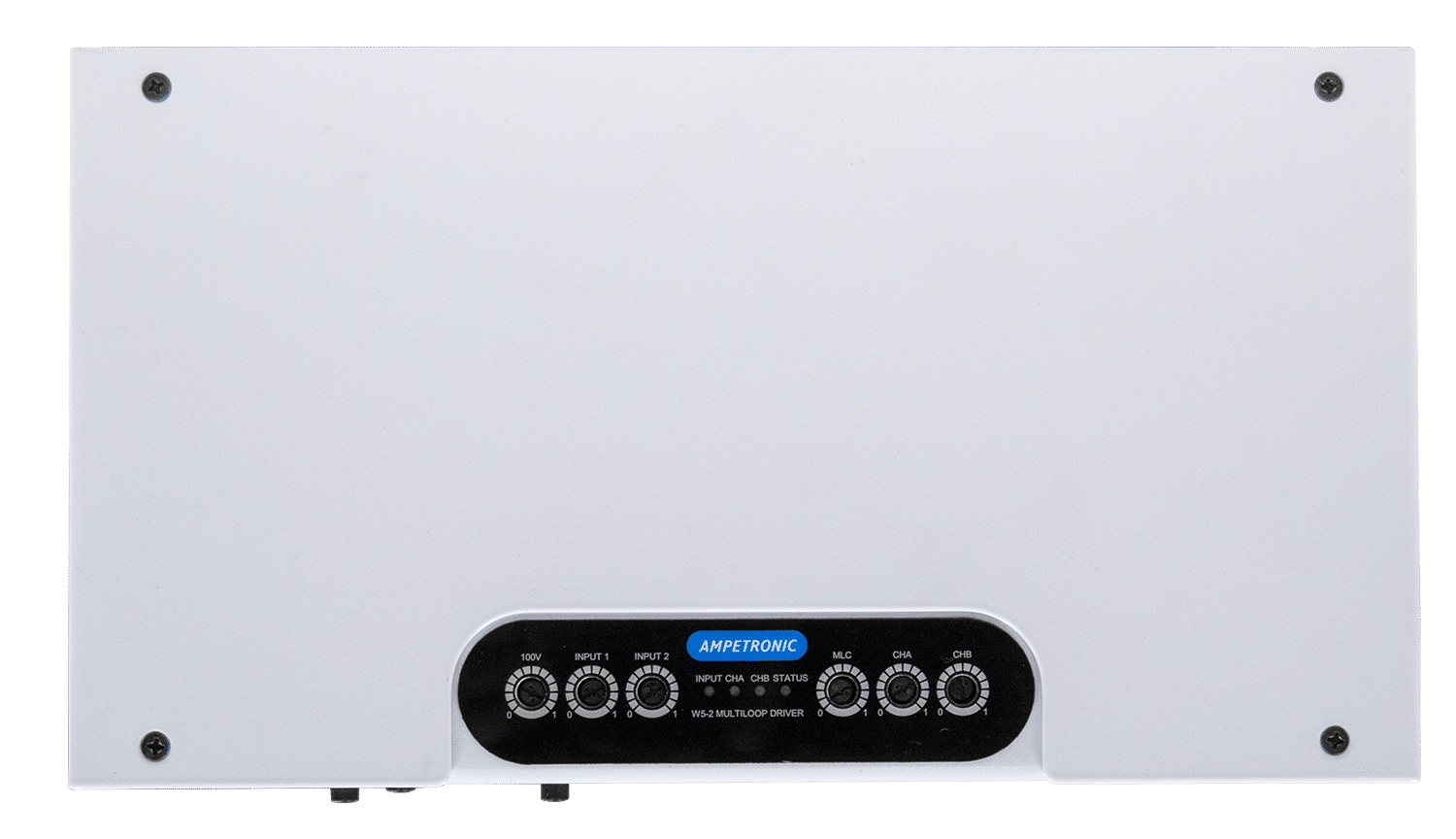

Wall Mount Multi-Loop Hearing Loop Driver - Image 5

Wall Mount Multi-Loop Hearing Loop Driver

Item:W5-2

The W5-2 is designed particularly for small rooms where there is no AV rack and no network monitoring requirements, but can still make use of Ampetronic’s industry leading spill control design.

Design templates for low spill in especially small rooms are available to download from the Loopworks portal here. These are optimised specifically for the W5-2, including two turn options with twin core flat copper tape for higher loss environments.

Note that a Loopworks account is needed to access design template downloads, it is free to register and grants access to the full suite of Loopworks tools and resources.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

  • One (1) W5-2 Wall Mount Hearing Loop Driver

Highlights

  • Input 1 & 2 – 3 way 3.5mm euroblock screw terminal input
  • Balanced mic/line selectable
  • 100V line input – 2 way 5mm euroblock screw terminal
  • Phantom Power – 24V (switchable on both channels)
  • Loop Output Drive Current – W5-2 – 5A RMS per channel
  • Loop Output Connectors – 2 way 5mm euroblock screw terminal per channel
  • Built-in Test Tones (1KHz sine, Pink noise)
  • Phase shift – 90° (always on)
  • Metal Loss Correction – 0 to 3dB per octave frequency correction (1KHz remains constant)
  • Three stage inductance compensation – to correct frequency response with different loop lengths
  • DC Out – 24V DC

Also Needed

Specs

+Inputs

DC Power24V DC, 1.3A, barrel connector, center positive
Input 1 & 2Mic/Line selectable, 3 way, 3.5mm terminal block, balanced, suitable for up to 600Ohm microphones or line level.
Input 1 & 2 - Mic LevelInput impedance 8,700Ω, Sensitivity -69dbu, Overload -33dBu
Input 1 & 2 - Line LevelInput impedance 8,700Ω, Sensitivity -45dbu, Overload -9dBu
100V Line2 way 5mm terminal block screw terminal

+Outputs

Loop Output A & B - Drive Voltage2x 2way, 5mm terminal block, Voltage 7.8 VRMS
Loop Output A & B - Drive Current5A RMS per channel, Continuous pink noise 2.5A RMS
Loop Output A & B - ResistanceMaximum loop resistance 0.6 Ω (at maximum current)
DC Output2 way, 3.5mm, terminal. Fuse protected output for ancillary devices. Voltage 24V, Current 0.1A

+Audio System

Frequency Response±3dB, 100 to 5000Hz
Distortion.5% THD +N (1kHz, sine, max output)
Automatic Gain ControlCompression of signal indicated by green INPUT LED when active and RED when overloaded. Input Range > 36 dB, output Range ± 1dB, attack time 3.5 ms, decay time 1.4 sec.
Metal Loss CorrectionSpecially designed adjustable filter to compensate for the effects of metal loss. Gain @ 1kHz remains constant. Min Slope = 0 dB/oct., Max Slope = 3dB/oct.
Phase Shift90° (always on)

+Additional Functions

Status2 way, 5mm terminal block, Volt free relay contacts indicating fault condition when open. Contact rating (resistive load): 12A,125VAC; 10A, 250VAC; 10A, 30VDC

+Protection Features

Thermal ProtectionsIf the PA amplifier reaches a pre-determined level the output current will be gradually attenuated followed by shutdown.
Output attenuationMax -4dB @ 90ºC
Unit shutdown (Requires power cycle to recover)PA chip junction temp>155 °C
DC input over-currentOutput Attenutation Max 4dB >5A dc input
Output over-currentUnit shutdown (Requires power cycle to recover), >10A loop current

+Physical

SizeWidth: 270mm, Height: 152mm, Depth: 42mm
Mounting OptionsFreestanding 1U 19″ rack mount (brackets fitted as standard), Wall mounted brackets available separately
Weight1.1 kg
EnvironmentIP30; -10 to 40ºC

+Compliance

Marks and ApprovalsThis product is CE and RCM marked to all relevant safety and EMC standards, and is MET Labs approved for sale in North America.
Marks and ApprovalsThese products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.
* Specifications subject to change without notice.
