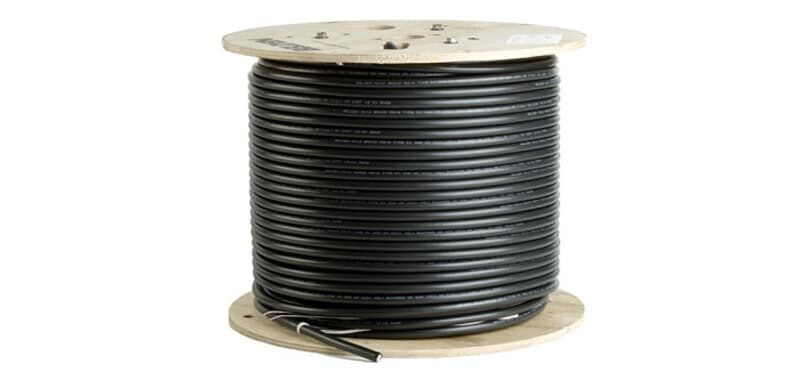

RG-8 50 Ohm Preassembled Coaxial Cable wrapped up
RG-8 50 Ohm Preassembled Coaxial Cable (Per ft./.3 m)

RG-8 50 Ohm Preassembled Coaxial Cable

Item:LA-390 Price: Price range: $1,313.00 through $2,405.00

Order a length of cable needed for your pre-designed RF or IR assistive listening system with the LA-390 preassembled cable. Each order comes with both BNC connectors attached to our RG-8 cable.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

One (1) RG-8 50 Ohm Preassembled Coaxial Cable in three length options.

Highlights

  • RG-8 cable and BNC connectors made for use with RF and IR system installations
  • Longest runs with lowest signal loss



WARNING: This product can expose you to chemicals including DIDP, which is known to the State of California to cause cancer. For more information, go to www.P65Warning.ca.gov

Specs

+RF

Attenuation1 dB per 50 ft. on 72 MHz, 2 dB per 50 ft. on 216 MHz

+Physical

Cable TypeRG-8/U Low Loss 50 Ohm
MaterialFoam Polyethylene Insulation, PVC Jacket, bare copper conductor, bare copper braided shield
DiameterOuter: .403 in. (10.24 mm), Inner: .285 in. (7.24 mm)
Unit Weight14.2 lbs. (6.5 kg) per 100 ft.
Shipping Weight15.0 lbs. (6.8 kg) per 100 ft.
