$170.00 MSRP

This product is available through authorized resellers.

Request Quote
Overview

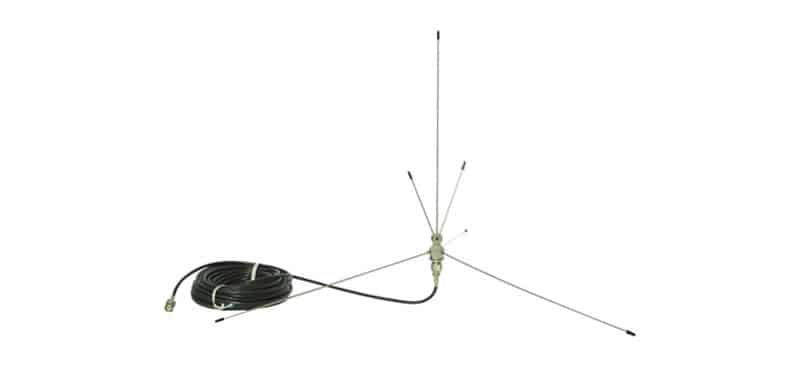

Thanks to its durable construction and design, the LA-107 Ground Plane Remote Antenna (216 MHz) is a great choice for use in high-wind environments or other difficult conditions. The LA-107 includes a U-bolt bracket for mounting to a conduit or pole, and it can be placed upright without the use of an external bracket.

Includes

One (1) LA-107 Ground Plane Remote Antenna (216 MHz)
15.2 m (50 ft.) RG58, 50 ohm coaxial cable (PL-259 and BNC connectors)
Mounting hardware

Highlights

  • Durable ground-plane antenna designed for outdoor use
  • Provides excellent coverage, even in adverse weather
  • Included U-bolt bracket for mast, conduit, or pole mounting
Product Specifications
Specification LA-107

Interconnections

Connector/s 50 ohm BNC to the transmitter, PL-259 connector to the antenna

RF

Frequency Range 216.0125 - 216.9875 MHz
Number of Channels 57 (19 wide band, 38 narrow band)
Antenna Type 1/4 Wave Length
Unity Gain 0 dB
Beam Width 360º
Typical Range Range of up to 914 m / 3,000 ft.

Physical

Height 17.5 in. (68.6 cm)
Material Metal
Shipping Weight 1 lb. (0.5 kg)
Diameter 30.00 in. (76.0 cm)
Ground Radials Length 13.50 (34.0 cm)
Base Length 13.50 (34.0 cm)
Cable Length 50 ft. (15.24 m)
Weight 7.5 oz. (212 g)
Used With
Accessories
FAQ
Q When should I use the LA-107 antenna?
A The LA-107 is a great antenna when doing an installation outdoors. It's the only weather proof antenna Listen offers and comes only in the 216MHz frequency.
Q What is the warranty on the LA-107?
A All accessories have a 90-day warranty.
