Overview

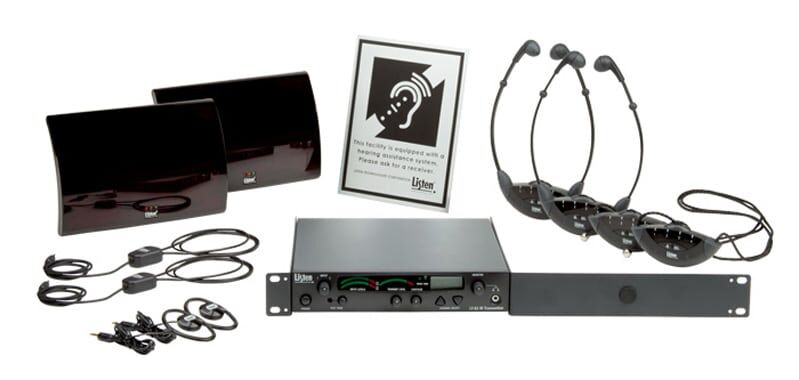

Designed for applications that are looking for a secure solution to meet the requirements of the International Building Code (IBC) standards for accessible design. In addition to ensuring that public facilities are compliant; the system helps solve frustrating but common sound problems caused by distance, background noise, or poor room acoustics. This system includes both types of receiver, Neckloop, earphone, transmitter, rack mount kit, and Assistive Listening Notification Signage Kit, and can be easily customized to meet the needs of any public assembly area. The system contains all of the items to be fully integrated with your existing sound system. Great solution to enrich your customers’ listening experience in courtrooms, classrooms, public hearing rooms, legislative chambers, centers for the performing arts, or convention centers. Radiators available in grey or white.

Includes

One (1) LT-82 Stationary IR Transmitter

One (1) LA-326 Universal Rack Mounting Kit
Two (2) LA-140 Stationary IR Radiator (Grey or White)
Two (2) LR-42 IR Stethoscope 4-Channel Receiver
Two (2) LR-44 IR Lanyard 4-Channel Receiver
Two (2) LA-166 Neck Loop
Two (2) LA-164 Ear Speaker
Four (4) LA-363 High Capacity AAA Alkaline Batteries (2)

One (1) LA-304 Assistive Listening Notification Signage Kit

Highlights

  • Meet the requirements of the new 2010 ADA standards and deliver an enriched listening experience
  • Secure wireless communication – ideal for applications where isolation of the signal is important
  • Accommodates up to four (4) listeners -system can be designed to meet the needs for any venue
  • Outstanding coverage – 10,000 ft² (929 m²) per radiator
  • Easy to specify, install and use
  • Outstanding performance ensures crystal clear sound for listeners
  • Try before you buy – free no obligation 30-day demo
Configurations & Architectural Specs

Configurations

LS-86-01-GY ADA Standard Stationary IR System -Grey (North America)*
LS-86-01-WH ADA Standard Stationary IR System -White (North America)*



*01 designation refers to international plug type (type B) for the power supply.

Architectural Specs

Furnish and install an IR wireless assistive listening system for use by the hearing-impaired. The assistive listening system (ALS) shall be capable of broadcasting on 4 separate channels and be frequency agile. The ALS system shall have 60 dB SNR (mono) or greater, end-to-end. Receivers shall be frequency agile to 4 channels set with a “SEL” switch. The LR-44 receivers will incorporate a stereo headset jack that allows the user to plug in either a mono or stereo headset and listen to audio normally. The receivers shall incorporate automatic battery charging circuitry for recharging of Ni-MH batteries. The receivers and transmitters shall offer a limited lifetime warranty. Listen Technologies Corporation LS-86 products are specified.

Product Specifications
Specification LS-86-01-GY

Physical

Shipping Weight 27.0 lbs. (2.3 kg)
FAQ
Q How long will the NiMH batteries last until they need to be recharged?
A You should receive 15 hours of use from each charge of the batteries.
Q Can the LT-82 be operated on 230 VAC?
A Yes, the LT-82 has a universal power supply that can be used anywhere in the world.
Q Is there any performance degradation in stereo mode?
A Yes, stereo operation raises the noise floor slightly.
Q Can I operate some channels in mono and others in stereo?
A Yes.
Q How do you replace the batteries in the receiver?
A For non-rechargeable batteries (AAA alkaline), remove the battery compartment and replace the batteries with fresh AAA alkaline batteries. For rechargeable NiMH batteries, simply replace the sealed battery pack with a freshly charged pack.
Q How do I recharge the NiMH batteries?
A Use the Listen LA-350 8-Unit Charging/Storage unit. This unit will charge batteries that are in receivers or out of receivers.
Q How many carriers does the LT-82 Stationary IR Transmitter produce?
A One.
Q How many carriers can be produced simultaneously in a room?
A Four. You will need one LT-82 Stationary IR Transmitter per carrier.
Q How are radiators connected to the LT-82?
A The carrier (signal) is connected using coax cable; power is connected using standard CAT-5 cabling.
Q How is power delivered to the radiator?
A Power is delivered with CAT-5 cables (connected between the radiator and either the LT-82 transmitter or the LA-205 power supply).
Q How many radiators can be powered from the LT-82 or LA-205 power supply?
A Two.
Q How much coverage is provided with the LA-140 radiator?
A 40,000 ft² (3716 m²) single channel with LR-4200-IR/LR-5200-IR receivers or 10,000 ft² (929 m²) single channel with LR-42/LR-44 receivers
Q Does the number of carriers affect the coverage?
A Yes, for two sources (carriers), the total coverage is half. For four carriers, the coverage per carrier is one-fourth.
Q What is the purpose of the delay compensation switch?
A This switch allows you to set up delay timing in a multi-radiator system so that each radiator receives the carrier at exactly the same time. This prevents signal dropouts that can be caused by out-of-phase signals (multi-path). With Listen’s delay compensation switch, it is not necessary to cut all of your coaxial cables to the same length - your shorter runs can use shorter cables, keeping your installation clean (and cost-effective).
Q What are the ADA changes related to assistive listening systems?
A Simply put, any public assembly area where audible communication is integral to the use of the space, an assistive listening system shall be provided. The assistive listening receivers need to comply with the following table below. For full details visit: http://www.ada.gov/2010ADAstandards_index.htm
