Overview

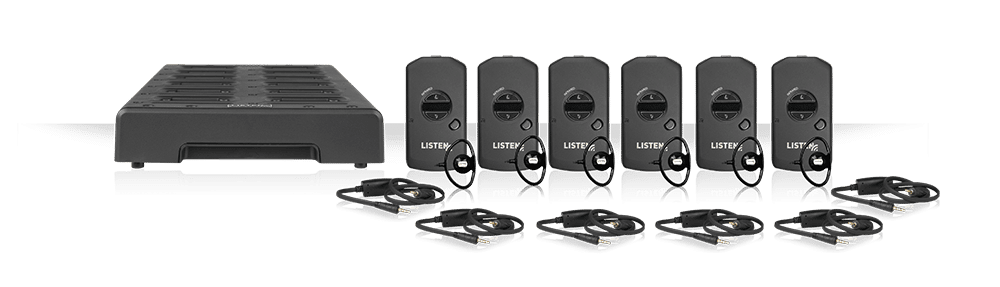

The LP-50-IR receiver pack gives you a convenient way to purchase all of the equipment needed to begin offering IR assistive listening or expand your existing system to accommodate more clients and customers. Each pack includes six LR-5200-IR iDSP receivers and one LA-381 Intelligent 12-unit charging tray.

The LR-5200-IR iDSP receiver is the smallest device of its kind, giving users a lightweight and convenient way to utilize your assistive listening technology. Each high-performance receiver offers unmatched sensitivity, range, and clarity, and the advanced green battery technology makes it more convenient and affordable for businesses and venues.

Each receiver features an OLED display for clearly communicating the channel name and status, battery charge level, and volume level. A programmable channel select button lets users cycle through the available/active channels, and the micro USB connection allows for easy setup, programming, and firmware updates.

The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store, dispense, and collect ListenIR receivers. The tray accommodates up to twelve (12) receivers, providing plenty of storage and charging capacity for the six included receivers and allowing you to expand your systems easily as your needs grow.

The complete package includes receivers, neck loops/lanyards, universal ear speakers, and the charging tray, providing you with everything you need to offer industry-leading IR assistive listening to your customers, clients, visitors, and more.

Includes

Six (6) LR-5200-IR-P1 Advanced Intelligent DSP IR Receiver Package 1*
One (1) LA-381 Intelligent 12-Unit Charging Tray



*The LR-5200-IR-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • Complete package including six (6) LR-5200-IR receivers, neck loops/lanyards, charging tray, universal ear speakers, and more
  • High-performance receivers offer best-in-class range, clarity, and sensitivity
  • Ideal for starting or expanding an IR assistive listening system in your business or venue
  • Integrated neck loops/lanyards with DSP loop driver improve the listening experience for T-coil users
  • Drop-in tray charges and stores up to twelve (12) ListenIR iDSP personal listening receivers
  • Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
  • Tension locking charge slots ensure a secure fit and effective charging
Configurations & Architectural Specs

Configurations

LP-50-IR-01 Advanced Intelligent DSP IR Receiver 6-Pack (North America)*
LP-50-IR-02 Advanced Intelligent DSP IR Receiver 6-Pack (Asia, UK)*
LP-50-IR-03 Advanced Intelligent DSP IR Receiver 6-Pack (Euro)*
LP-50-IR-04 Advanced Intelligent DSP IR Receiver 6-Pack (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, E, and I) for the power supply.

CAD file(s)

Used With
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat is the warranty on the Lithium Ion battery?
AAll accessories have a 90-day warranty.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QHow long will the LR-5200 run on a fully charged battery?
AThe LR-5200 will run continuously for 8 hours on a fully charged battery.
