Assistive Listening DSP Value Package (72 MHz)

Item:LP-4VP-072-01b
Limited Quantities

Start your assistive listening setup affordably with the LP-4VP-072 Assistive Listening DSP Value Package. Meeting basic assistive listening needs for houses of worship or private gathering spaces, the LP-4VP-072 includes our LT-803 stationary transmitter, four LR-3200-072 receivers, a 90-degree helical antenna, earbuds, and a signage kit.

Simply add two neck loops to meet ADA compliance for a room with capacity of up to 100 people.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

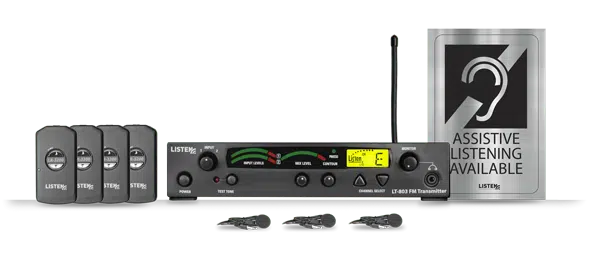

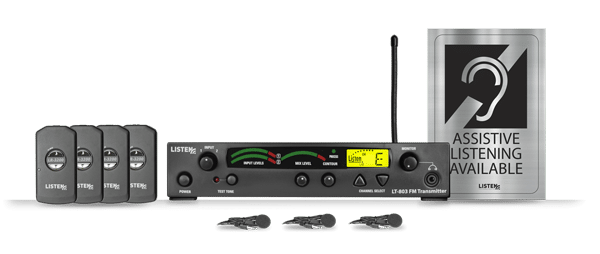

Includes

One (1) LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz)
One (1) LA-123 90° Helical Antenna (72 MHz)
Four (4) LR-3200-072 RF Receiver (72 MHz)
Four (4) LA-161 Single Ear Bud
One (1) LA-304 Assistive Listening Notification Signage Kit
One (1) LA-423 4-Port USB Charger

Highlights

  • Economical price – backed by Listen’s exceptional service and support
  • Three channels – makes it simple to install, manage and use
  • Reliable clear sound quality – 62 dB SNR
  • 30-day no-obligation demonstrations available

Also Needed

Specs

+Audio

Frequency Response50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio62 dB (A Weighted)
Distortion1% total harmonic distortion (THD) at 80% deviation

+RF

Number of ChannelsThree (3) Wide Band - (A) 72.100, (E) 72.900, (H) 75.900
Transmission Range600 ft. (182.88 m) (with LA-123 antenna)

+Physical

Shipping Weight5.8 lbs. (2.6 kg)
Dimensions (H x W x D)Box Dimensions: 18 x 12.25 x 3 in. (45.72 x 31.12 x 7.62 cm)

+Environmental

Temperature - Operation-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC Part 15 Class B, Industry Canada ICES-3 (B), RoHS

Accessories

FAQs

+Is there a limit to the number of transmitters I can use in one room?

Yes. The 72 MHz LT-800-072 has a maximum of (8) eight.
