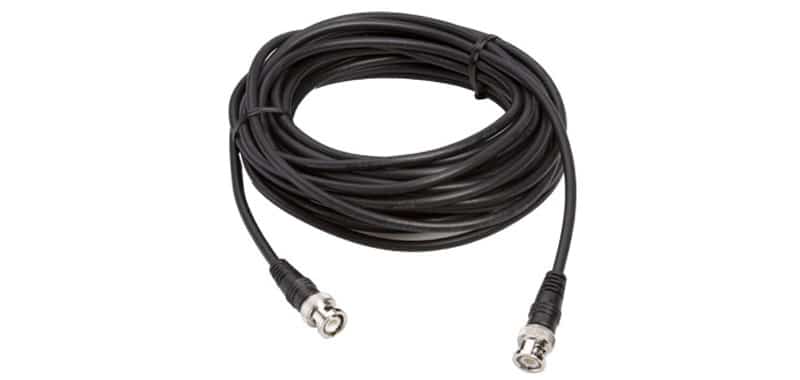

Rolled up coaxial cable

RG-58 50 Ohm Preassembled Coaxial Cable

Item:LA-391 Price:$250.00 – $650.00

Available in three lengths, the LA-391 allows you to order RG-58 cable complete with both BNC connectors pre-assembled and ready to use.

Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

RG-58 50 Ohm Preassembled Coaxial Cable

Highlights

  • RG-58 cable complete with RG-58 connectors installed
  • In 50′, 100′, or 150′ options.



WARNING: This product can expose you to chemicals including DIDP, which is known to the State of California to cause cancer. For more information, go to www.P65Warning.ca.gov

Specs

+Physical

MaterialPolyethylene Insulation, PVC Jacket, tinned copper conductor, tinned copper braided shield
DiameterOuter: .192 in. (4.88 mm), Inner: .116 in. (2.95 mm)
Cable TypeRG-58/U 50 Ohm
Shipping Weight4 lbs. (1.81 kg) per 100 ft.
Unit Weight3.5 lbs. (1.6 0 kg) per 100 ft.

+RF

Attenuation2 dB per 50 ft. on 72 MHz, 4 dB per 50 ft. on 216 MHz
