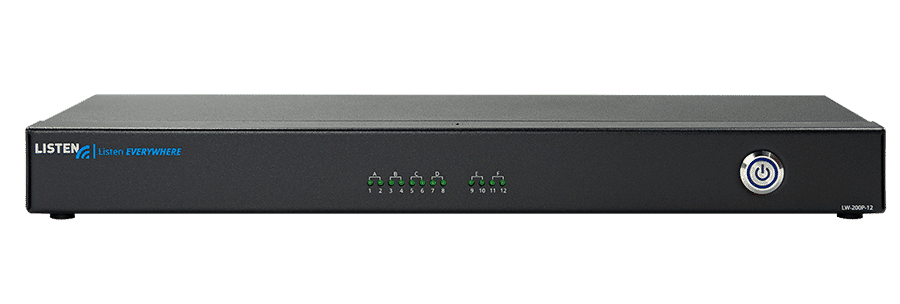

Listen EVERYWHERE 12 Channel Server

Item:LW-200P-12

The LW-200P-12 has 12 input channels and can service up to 1000 users via a free app for smartphones. Multi-screen and assistive listening environments—including conference centers, and sports bars, plus houses of worship, interpretation and hospitality—benefit from the flexibility to provide a wide range of streaming audio options with strong, clear, and reliable performance.

*Custom solutions available upon request to accommodate more channels/users, email [email protected] for information.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

Includes

One (1) LW-200P-12 Listen Everywhere 12 Channel Server w/Power Supply
One (1) Set of Rack Mount Brackets
One (1) 1.83M (6 ft.) RCA Cable
One (1) 1.83M (6 ft.) CAT6 Cable

Highlights

  • Up to 1000 Users
  • 12 Channels
  • Low Latency
  • Uses Existing Wireless Network

Also Needed

Specs

+Interconnections

Audio InputsTerminal Block: Two analog inputs, rear panel, one terminal block connector per input, balanced, +4 dBu (line) nominal input level, +16 dBu maximum input level, impedance 100k ohm
Audio Inputs*Each stereo channel requires the use of two inputs
EthernetRJ-45 supports 10/100/1000 Mbps speed. Green LED flashes at 100 Mbps, Yellow LED flashes at 1000 Mbps.

+Power Supply

ConnectorDC Barrel Connector
Input Voltage100-240 VAC, 50-60Hz
Output Voltage5 VDC
Current6.0 A
Power30 W
CountriesNorth America, UK, EU, AUS

+Servers

IP AddressDHCP, Static, Reserved
PrioritizationQoS/ToS
Users1000 (per server)
Max Channels12 mono (6 stereo)
WAP Support802.11n or better w/WMM enabled
Supported WAP Frequencies2.4 GHz & 5 GHz
Bandwidth Use125 kbps per user
Frequency Response20Hz – 20kHz ±1dB
Dynamic Range86 dB
Signal to Noise Ratio (SNR)74 dB typical (at nominal input levels)
Bit depth16 bits
Sampling Rate48 kHz
Channel SecurityAES-256-CBC, 128 bit encryption key
System Latency40 - 80 mS (60 mS average). This can vary per network and mobile device.
Total Harmonic Distortion (THD)<1%
App SupportiOS/Android
Cloud ServiceYes
RegulatoryUL, FCC, CE, KCC, RoHS
Warranty2 years
Multiple servers may be used to increase the number of channels.

+Physical

Dimensions (H x W x D)45mm x 483mm x 117mm (1.77in x 19.02in x 4.6in)
Weight2.2 kg (4.85 lbs)
Rack Space1RU

+Environmental

Temperature - Operation-10 ºC (14 ºF) to +40 ºC (104 ºF)
Temperature - Storage-20 ºC (-4 ºF) to +50 ºC (122 ºF)
Relative Humidity0 to 95% relative humidity, non condensing
Listen Everywhere servers are cloud managed with customizable in-app functions which support welcome messages, videos, sliding banners, pdf documents, offers and supports portable smart iOS and Android devices.
