Overview

The LW-200P-16 has 16 input channels and can service up to 1000 users via a free app for smartphones. Multi-screen and assistive listening environments—including conference centers, and sports bars, plus houses of worship, interpretation and hospitality—benefit from the flexibility to provide a wide range of streaming audio options with strong, clear, and reliable performance.

*Custom solutions available upon request to accommodate more channels/users, email [email protected] for information.

Includes

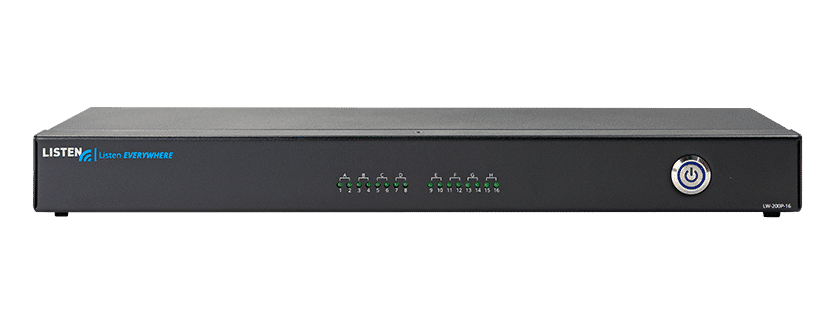

One (1) LW-200P-16 Listen Everywhere 16 Channel Server

Highlights

  • Up to 1000 users
  • 16 Channels
  • Ultra-Low Latency
  • Uses Existing Wireless Network



Configurations & Architectural Specs

Architectural Specs

The audio over Wi-Fi servers shall be capable of broadcasting multiple audio sources over Ethernet to a WLAN access point.  Smart phones and tablets shall be able to receive the audio broadcast through a proprietary app.  The app shall be made available for download to smart devices through the Apple and Android app stores or other web locations at no charge.

Audio over Wi-Fi servers shall be available in two models; one with two audio inputs and the other with 4 to 16 audio inputs.  Each server shall be rack mountable in 1 RU 19” rack space and capable of receiving line level audio inputs.  There shall be audio input indication through LED’s shown on the front panel of the server.  There shall be no user control interface on the server to prevent tampering and facilitate easy setup and operation.

Each server shall have an external power supply for use in multiple countries with the appropriate line cord and have compliance for the countries specified.

The proprietary app shall have the ability to play venue intro videos or video ads.  It shall be capable of showing sliding ad banners, URL hyperlinks, and PDF documents, which are customer supplied and supported.  It shall be capable of timing ads based upon the time of day and day of the week.   The user venue shall be able to customize the app with their own colors, logos and channel names.  Channel selections shall allow customization with channel logos, images and colors.

All app features shall be managed through a web application cloud service as well as have the capability to push updates to each server remotely.  Each server shall be accessible through a LAN manager web application to locally manage server network configurations.

Servers with 2 analog audio inputs shall be Listen Technologies Listen Everywhere LW-100P-02

Servers with 4 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-04

Servers with 8 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-08

Servers with 12 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-12

Servers with 16 analog audio inputs shall be Listen Technologies Listen Everywhere LW-200P-16

Product Specifications
Specification LW-200P-16

Interconnections

Audio Inputs Rear panel, sixteen (16) terminal block -14 dBu (line) nominal input level, -2 dBu maximum input level, impedance 10k ohm
Ethernet RJ45: 100 BaseT or 1000 BaseT (gigabit)
Analog Terminal Block

Power Supply

Connector DC Barrel Connector
Input Voltage 100-240 VAC, 50-60Hz
Output Voltage 5 VDC
Current 1.2 A
Power 6W
Countries North American, UK, EU, AUS

Servers

IP Address DHCP, Static, Reserved
Prioritization QoS/ToS
C Users 1000 (per server)
Max Channels 16 mono
WAP Support 802.11n or better w/WMM enabled
Supported WAP Frequencies 2.4 GHz & 5 GHz
Bandwidth Use Approx. 140 kbps per user
App Support iOS/Android
Cloud Service Yes
Regulatory FCC, CE, RoHS
Warranty 2 years
Multiple servers may be used to increase the number of channels.

Physical

Dimensions (H x W x D) 45mm x 483mm x 155mm (1.77in x 19.02in x 6.1in)
Weight 2.2 kg (4.85 lbs)
Rack Space 1RU

Audio Everywhere from Listen servers are cloud managed with customizable in-app functions which support welcome messages, videos, sliding banners, pdf documents, offers and supports portable smart iOS and Android devices.
