Overview

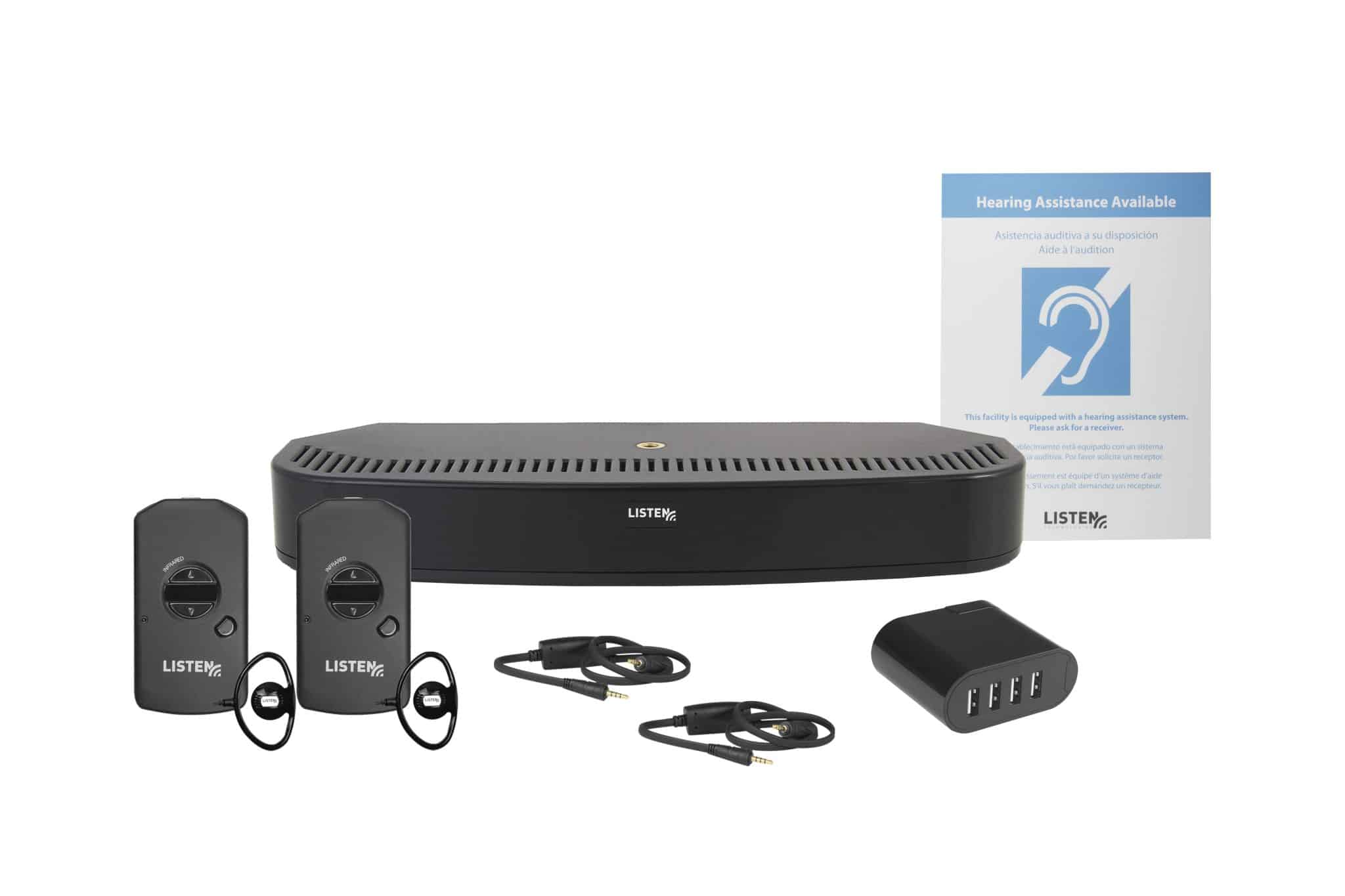

The LS-93 Advanced iDSP Level I system comes with everything needed for immediate compliance in venues with up to 50 seats.

In addition to our LT-84 Radiator/Transmitter Combo, the LS-93 system includes two (2) LR-5200-IR Advanced iDSP Receivers for unmatched audio quality and reliability. The complete setup also includes the LA-423 4-port USB Charger to ensure that receivers are ready whenever needed. Universal ear speakers and Listen disinfecting wipes are also included.

Includes

One (1) LT-84-01 ListenIR Transmitter/Radiator Combo
Two (2) LR-5200-IR Advanced Intelligent DSP IR Receiver
Two (2) LA-430 Intelligent Ear Phone/Neck Loop Lanyard
Two (2) LA-401 Universal Ear Speaker
One (1) LA-423 4-Port USB Charger
One (1) LA-901 Listen Disinfecting Wipes (Cylinder 75 Count)

Highlights

  • Advanced iDSP IR assistive listening system with our LR-5200-IR receivers included
  • Pre-configured system designed for simple and immediate installation
  • Ideal for small- to mid-size venues with up to 50 seats
  • Provides outstanding coverage up to 2,787 m2 (30,000 ft2)
  • Designed for multi-channel applications where users need the ability to select audio source/channel themselves
Configurations & Architectural Specs

Configurations

LS-93-01 ListenIR Advanced iDSP Level I System (North America)

Architectural Specs

Furnish and install an IR wireless assistive listening system for use by the hearing-impaired. The assistive listening system (ALS) shall be capable of broadcasting up to two (2) audio channels with the choice of four (4) mono carrier frequencies; 2.3, 2.8, 3.3 and 3.8 MHz.  The system coverage area shall be up to 30,000 ft² (2787 m²) with single channel transmission.  The system shall have a SNR of 60 dB or better and THD of less than 2%. The system shall have an audio frequency response of 63 Hz to 15 kHz, +/- 3db.  The system shall have two (2) independent mixing audio inputs, one for each transmission channel. Each mixing input shall consist of one (1) 3.5 mm Microphone input, one (1) balanced Phoenix type input and one (1) unbalanced RCA input. The system shall have independent channel audio processing with Limiting, Compression and Noise Gate as well as transmit level control and level indication via an LED.  The system shall provide Power and RF signal for up to Four (4) Expansion Radiators over CAT-5 cable for additional coverage.

The system receivers shall be capable of receiving on four (4) wide band channels (carriers), Channel 1 (2.3 MHz), Channel 2 (2.8 MHz), Channel 3 (3.3 MHz) and Channel 4 (3.8 MHz).  The receivers shall have a programmable multi-function Listen button that can be tuned for the venues desired channels and electronically lock out any unused channels. The receivers shall have the option of being lanyard or belt clip worn and the lanyard shall incorporate an integrated neck loop for compatibility with T-coil hearing aids. The receivers shall be intelligent and provide customized audio to either earphones or the integrated neck loop based upon which is connected. The receivers shall have two (2) 3.5 mm (TRRS) connectors to drive the integrated neck loop lanyard or up to two (2) mono or stereo earphones. The receivers shall incorporate a multi-functional display (OLED) that indicates battery status, inventory number, volume level and a customizable channel name. The receivers shall employ a unique iDSPTM noise reduction technology. The receiver shall be fully programmable via PC software.  The receivers shall have a micro USB connector used for programming/setup, inventory control, charging and firmware upgrades. The receiver shall incorporate automatic battery charging circuitry and use a non-proprietary lithium ion battery. The receivers shall automatically turn on when removed from the charging device and automatically turn off when returned to the charging device.  The receivers shall have additional charging contacts to allow for multiply charging options. The receivers shall be covered by a hassle free limited lifetime warranty.

The Listen Technologies products are specified.

Furnish and install the following:

Listen Technologies LT-84 ListenIR Transmitter/Radiator Combo (Qty: 1 ea.) Includes: LA-210 power supply, LA-344 universal mounting hardware, and LA-303 multi-lingaul assistive listening notification sign (English, Spanish, French)
Listen Technologies LR-5200-IR Advanced Intelligent iDSP IR Receiver (Qty: 2 ea.)
Listen Technologies LA-430 Intelligent Ear phone/Neck Loop Lanyard (Qty: 2 ea.)
Listen Technologies LA-401 Universal Ear Speaker (Qty: 2 ea.)
Listen Technologies LA-423 4-Port USB Charger (Qty: 1 ea.)
Listen Technologies LA-901 Listen Disinfecting Wipes (Cylinder 75 CT) (Qty: 1 ea.)

Accessories
FAQ
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QHow long will the LR-5200 run on a fully charged battery?
AThe LR-5200 will run continuously for 8 hours on a fully charged battery.
QHow many channels (carriers) can the LT-84 produce?
ATwo (2) channels.
QHow many channels (carriers) can be produced simultaneously in a room?
AFour (4) channels. You will need two (2) LT-84 (2 carriers per LT-84).
QWhat is the coverage area provided by the LT-84?
A30,000 ft² (2787 m²) single channel with LR-4200-IR/LR-5200-IR receivers or 7,500 ft² (697 m²) single channel with LR-42/LR-44 receivers
QDoes the number of channels (carriers) affect the coverage area?
AYes, for one (1) channel (carrier), the line-of-sight coverage area is 30,000 ft² (2787 m²) and for two (2) channels (carriers), the line-of-sight coverage area is 15,000 ft² (1394 m²) with LR-4200-IR/LR-5200-IR receivers.
QHow many Expansion Radiators (LA-141) can you use on a system?
AYes, for one (1) channel (carrier), the line-of-sight coverage area is 30,000 ft² (2787 m²) and for two (2) channels (carriers), the line-of-sight coverage area is 15,000 ft² (1394 m²) with LR-4200-IR/LR-5200-IR receivers.
QHow do I connect multiple Expansion Radiators (LA-141)?
AA maximum of two (2) LA-141s can be connected to each Expansion Link output RJ-45 on the LT-84 with a maximum daisy chained CAT-5e cable length of 100 ft. (30.5 m). CAT-5e cable must be at least 24 AWG!
QWhat is the warranty of the LT-84?
AThe LT-84 has a 3-year warranty. Listen Warranty
