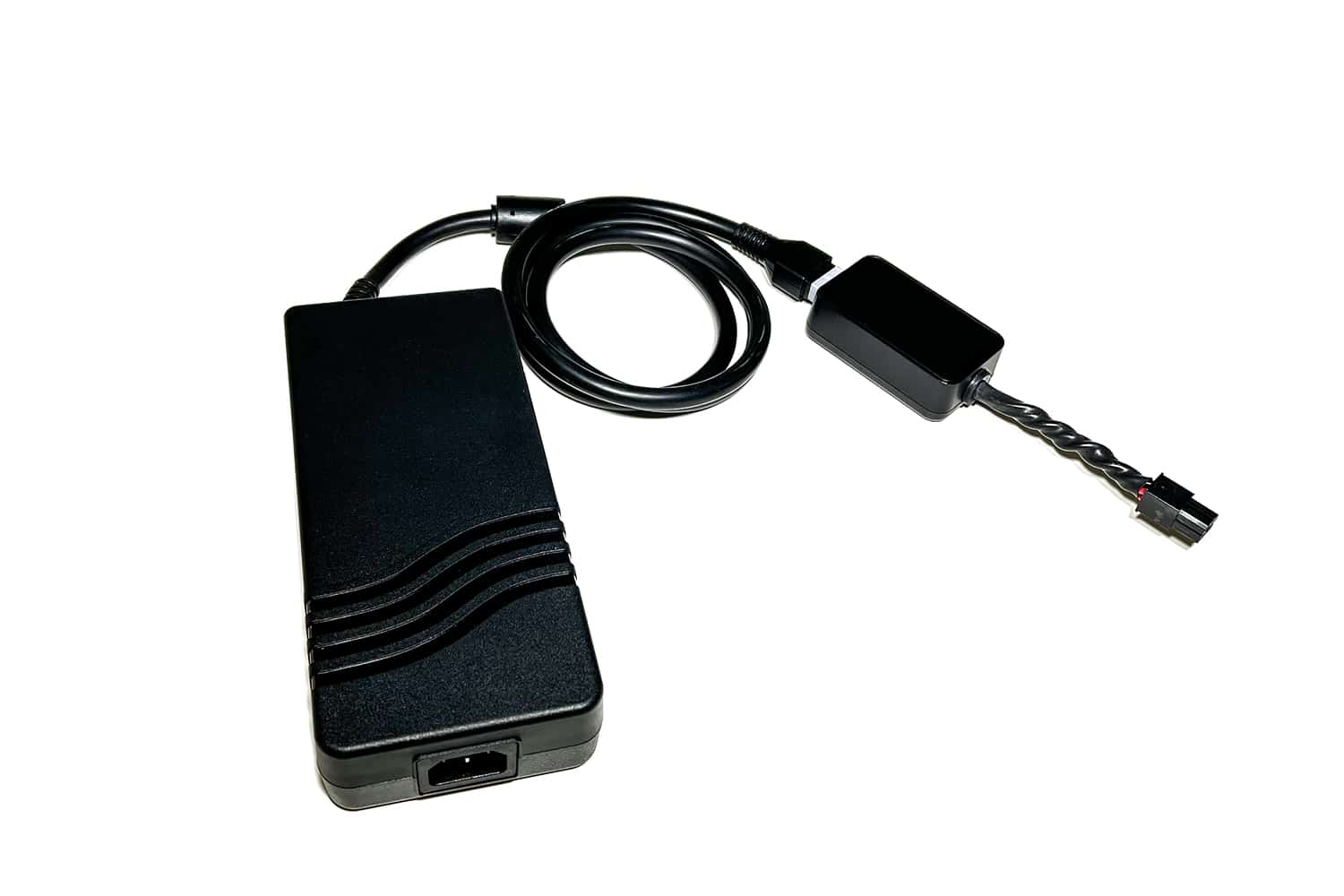

Navilution Server AC Power Supply (110/220VAC)

Item:LA-211 Price:$119.00

Order this if you need a replacement or a back-up.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote


One (1) LA-211 Navilution AC Power Supply (110/220VAC).


  • Replacement or back-up Navilution Server AC Power Supply (110/220VAC)



Power Supply Input100-240 VAC, 50-60 Hz, 4.5 A
Power Supply Output24 VDC, 10.63 A, 255.0 W
Power Supply TypeIn-line switching mode power supply, Listen part number LA-211
Power Supply Line CordIEC line cord, North America Type B (LA-211-01), Asia and UK Type G (LA-211-02), Euro Type F (LA-211-03), Australia Type I (LA-211-04)


Cable LengthPower Supply Output Cable: 55 in. (139.7 cm), IEC Line Cord: 72 in. (183 cm)
Dimensions (H x W x D)1.58 x 3.55 x 7.72 in. (4.0 x 9.0 x 19.6 cm)
Weight2.5 lbs. (1.2 kg)
Shipping Weight3.5 lbs. (1.6 kg)


Temperature - Operation-10 °C (14 °F) to +40 (104 °F)
Temperature - Storage-20 °C (-4 °F) to +50 (122 °F)
Relative Humidity0 to 95% relative humidity, non-condensing


Power Supply ComplianceCUL, UL, CE, CCC, RCM, GS, FCC, RoHS
