Replacement Mounting Hardware (For LT-84, LA-141 only)

Item:LA-344 Price:$61.00MSRP

Easily mount and adjust your LT-84 ListenIR Transmitter/Radiator Combo and LA-141 ListenIR Expansion Radiator for any space or any installation with the LA-344 Replacement Mounting Hardware kit. The modular system allows the unit to be tilted 190° and rotated up to 360° with a locking ring to hold the desired position, and the included set screw adjusting options for a tamper-resistance setup. The length can also be adjusted to 2 in. (5.08 cm), 4 in. (10.16 cm), or 6 in. (15.24 cm) depending on the needs of your setup.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

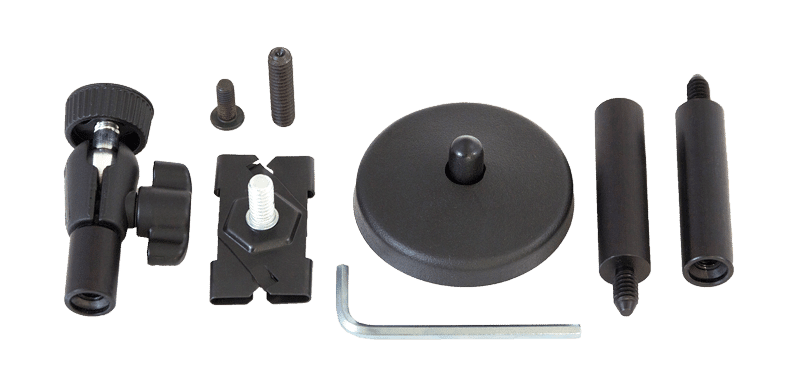

Includes

One (1) Wall Base
One (1) Ceiling T-Bar Base
One (1) Black Vinyl Base Cover
Two (2) Shafts
One (1) Adjustable Head with Locking Ring
One (1) Alan Head Tamper Resistant Set Screw
One (1) Alan Wrench
One (1) 1/4 x 20 all-thread

Highlights

  • Flexible, versatile mounting system for wall, ceiling, or table use
  • 190° tilt adjustement and up to 360° rotation for any setup or installation
  • 5.08 cm (2 in.), 10.16 cm (4 in.), or 15.24 cm (6 in.) length adjustment options

Specs

+Physical

Shipping Weight1.0 lbs (0.5 kg)
Base 2T-Bar Clip for drop ceiling rails, 1/4-20 stud
Base 12" (50.8 mm) round base with four 0.188" (4.8mm) holes on1.6" (40.6mm) bolt circle for solid surface mounting, 1/4-20 stud
Base CoverMatching black vinyl cover adds a finished look to either base
ShaftsTwo aluminum shafts, 0.5" (12.7mm) diameter, 2" (50.8mm) long, black, 1/4-20 stud
Adjustable HeadFully adjustable with locking ring, 190° Tilt, 360° Turn and 360° Rotation)
Finished Lengths2" (50.8mm), 4" (101.6mm) or 6" (152.4mm) long mount
Unit Weight0.3 lbs (166.5g)
Maximum Load Weight3 lbs (1.36 kg)
