Overview

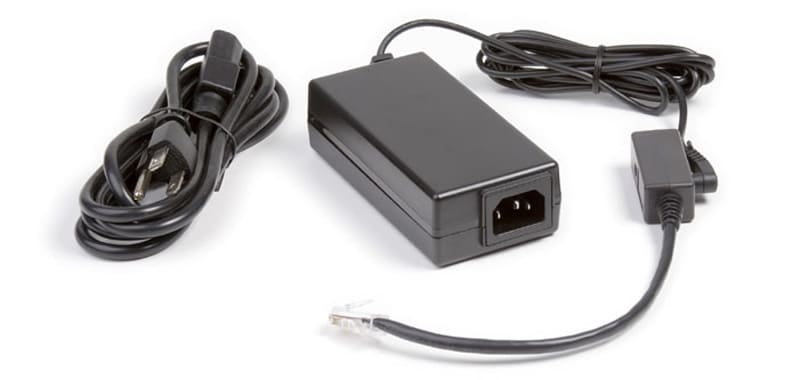

Built to provide clean, reliable power for the LA-140 or the LT-82, this power supply can also be utilized with up to two (2) additional stationary IR radiators. The LA-205 power supply from Listen Technologies connects to the transmitter or radiators using CAT-5 cabling for quick, easy setup, and it can be specified for North American, European or UK applications.

Includes

One (1) LA-205 30 VDC Extension/Replacement Power Supply for LA-140/LT-82

Highlights

  • Powers up to two (2) additional stationary IR radiators
  • Compatible with the LT-82 and the LA-140
  • CAT-5 cable connection for simple setup
  • Available for North American, European, and UK applications
Configurations & Architectural Specs

Configurations

LA-205-01 30 VDC Extension/Replacement Power Supply for LA-140/LT-82 (North America)*
LA-205-02 30 VDC Extension/Replacement Power Supply for LA-140/LT-82 (Asia, UK)*
LA-205-03 30 VDC Extension/Replacement Power Supply for LA-140/LT-82 (Euro)*
LA-205-03 31 VDC Extension/Replacement Power Supply for LA-140/LT-82 (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.

Product Specifications
Specification LA-205

Power

Power Supply Input 100-240 VAC, 50-60 Hz, 1.5 A
Type In-line switching mode power supply
Power Supply Connector 5.0mm x 2.1mm Barrel
Power Output 30 VDC, 1.5 A, 45 W

Physical

Width 2.25 in. (6 cm)
Height 1.25 in. (3 cm)
Depth 4.75 in. (12 cm)
Color Dark Grey
Shipping Weight 2.0 lbs (1.1 kg)
Weight 1.1 lbs. (0.5 kg)
Cord Length 85 in. (216 cm)
Line Cord Length 39 in. (99 cm)

Environmental

Temperature - Operation -10 °C (14 °F) to +40 (104 °F)
Temperature - Storage -20 °C (-4 °F) to +50 (122 °F)
Relative Humidity 0 to 95% relative humidity, non-condensing

Compliance

Safety FCC, Industry Canada, CE, RoHS
Used With
FAQ
Q What is Listen Technologies product warranty?
A Click for Listen's product warranty.
Q Can I power multiple transmitters with one power supply?
A Yes, two transmitters or radiators can be powered from one power supply. The power output connectors on the transmitters or radiators are used for this purpose. It is important not to exceed more than two transmitters or radiators from one power supply using the power output connector on the rear of the transmitter or radiator.
