Overview

This system combines Wi-Fi and RF technology products to provide compliant audio coverage PLUS expanded coverage to everyone with a Smartphone or tablet.

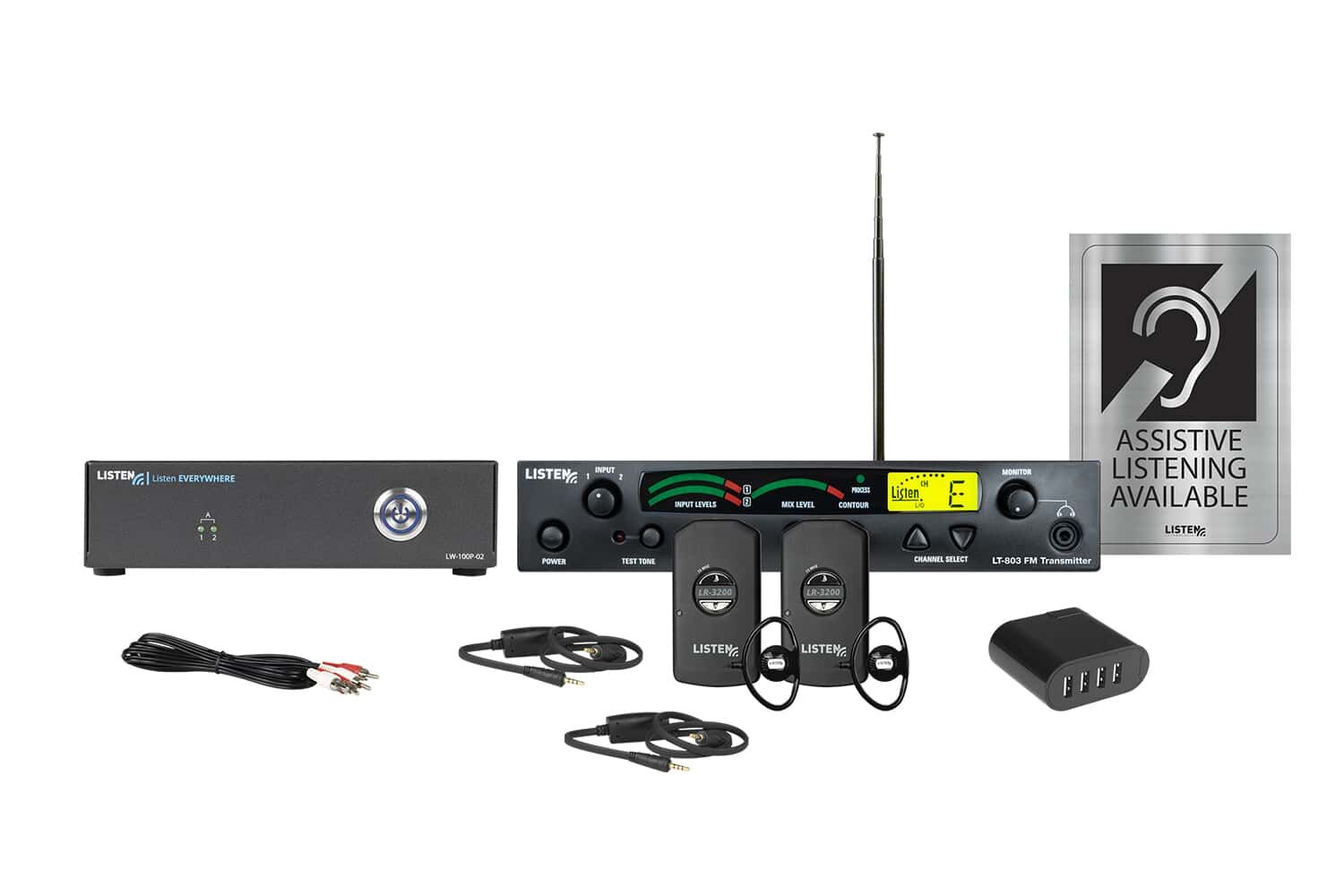

Includes

One (1) LW-100P-02 LE 2 Channel (mono) Wi-Fi Server
One (1) LW-202 LE Venue Awareness Kit
One (1) LT-803-072-P1 Stationary 3-Channel Transmitter Package (72 MHz)
One (1) LPT-A107-B Dual RCA to Dual RCA Cable 6.6 ft. (2 M)
Two (2) LR-200-072 Standard 3-Channel Receiver (72 MHz)
Two (2) LA-164 Ear Speaker
Two (2) LA-166 Neck Loop

Highlights

  • Extended Audio Reach
  • Easy and Convenient
  • Free Smartphone App
Configurations & Architectural Specs

Configurations

LCS-120-01 Wi-Fi/RF Base System

Architectural Specs

Base COMBO Wi-Fi/RF ASSISTIVE LISTENING SYSTEM



The assistive listening system shall be capable of broadcasting audio over both the 72 MHz frequency and 2.4/5.0 GHz Wi-Fi frequencies, allowing users to receive the audio through a receiving device with ear speaker/headphones or directly to Bluetooth enabled hearing aids. The 72 MHz frequency shall be transmitted to a receiving device as defined below. The 2.4/5.0 GHz frequency shall be transmitted to personal smart devices such as cellular phones and tablets through a free application as defined below.

The LT-803-072-P1 Stationary 3-Channel RF Transmitter Package 1 (72 MHz) shall include (1) LT-803-072 Stationary 3-Channel RF Transmitter (72 MHz), (1) LA-106 Telescoping Top Mounted Antenna (72 MHz), and (1) LA-304 Assistive Listening Notification Signage Kit. The stationary RF transmitter shall be capable of broadcasting on one of any three channels – A (72.100 MHz), E (72.900 MHz) or H (75.900 MHz). The transmitter shall have a SNR of 62 dB or greater. The output power shall be adjustable to quarter, half or full. Channel tuning shall be capable of being locked. The device shall have an audio frequency response of 50 Hz to 15k Hz, ‘± 3 dB at 72 MHz. It shall have two (2) mixing audio inputs. The device shall have the following audio controls: input level, mix level and an adjustable low pass filter (contour). The device shall have an audio processor that is capable of automatic gain control and limiting. The Listen LT-803-072-P1 is specified.

The stationary audio over Wi-Fi server shall be capable of delivering 1 mono / 2 stereo audio channels in 1 RU space and shall be capable of connecting to and residing on the venues existing local area network (LAN) via a single RJ45 Ethernet connection. Venue content and channel listings shall be administered through a cloud managed service. The audio over Wi-Fi server shall be compatible with the latest Wi-Fi IEEE 802.11 standards and capable of handling up to 1,000 simultaneous users. The Listen Technologies Audio Everywhere MX5-1 is specified.

The RF receiver shall be capable of receiving on three wide band channels. The receiver shall have an SNR of 62 dB or greater. The device shall have an audio frequency response of 50 Hz to 15 KHz, ± 3 dB at 72 MHz. The device shall incorporate a stereo headset jack that allows the user to plug in either a mono or stereo earphone(s). The unit shall operate with (2) AA batteries. The receiver shall incorporate automatic battery charging circuitry for recharging of NiMH batteries. The device shall have a switchable option for the use of (2) alkaline or (2) NiMH batteries. The Listen LR-200-072 is specified.

The Wi-Fi receiver shall be personal smart devices such as cellular phones and tablets as provided by the users. The audio over Wi-Fi shall be delivered to the personal smart device via a free application downloaded onto the personal device. When the free application is launched, the personal smart device will automatically connect to the audio over Wi-Fi server. The application will list the available channels and play the audio when selected by the user. The free application shall also be capable of containing user documentation and instructions in addition to ads, promotional banners and videos. The app shall be customizable, allowing the venue to load in its color pallet and logos. The Listen Technologies Audio Everywhere App is specified.

Furnish and install a COMBO Wi-Fi/RF assistive listening system+:

  1. Listen Technologies LT-803-072-P1 Stationary 3-Channel RF Transmitter Package, Includes: LA-106 Telescoping Top Mounted Antenna (72 MHz), LA-304 Assistive Listening Notification Signage Kit (Qty: 1 ea.)
  2. Listen Technologies MX5-01 Audio Everywhere Server (Qty: 1 ea.)
  3. Listen Technologies LPT-A107-B Dual RCA to Dual RCA Cable (Qty: 1ea.)
  4. Listen Technologies LW-100 Venue Awareness Kit (Qty: 1ea.)
  5. Listen Technologies LR-200-072 Standard 3-Channel RF Receiver (072 MHz) (Qty: 2 each or as needed, see calculator*)
  6. Listen Technologies LA-164 Ear Speaker (Qty: 2 ea. or as needed)
  7. Listen Technologies LA-166 Neck Loop (Qty: 2 each or as needed, see calculator*)

+The Americans with Disabilities Act (ADA) 2010 ADA Standards requires public facilities to provide auditory assistance devices. http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf

*Calculator http://www.listentech.com/support/ada-info/ada-tools-kits/
