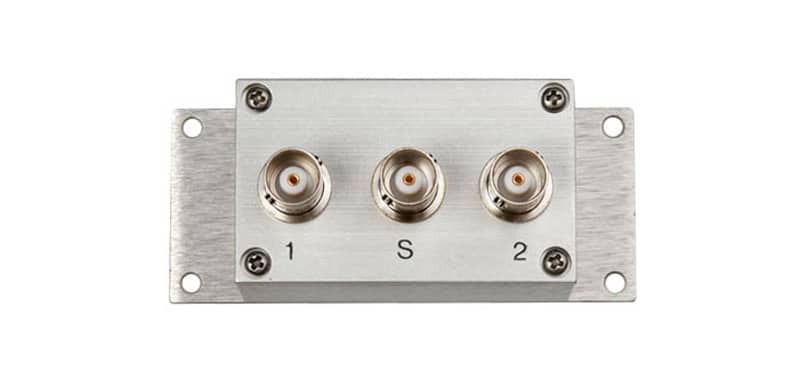

2-Way RF Antenna Combiner

Item:LA-80 Price:$226.00MSRP
The LA-80 is a passive device (no power supply needed) that takes two (2) incoming RF signals and combines them into one (1) outgoing antenna source. The combiner is used in applications where up to two (2) different antenna sources are required and only one (1) antenna output is available or desired. The LA-80 can also be used as a splitter, if needed.
Download Product Data Sheet

This product is available through authorized resellers.

Request Quote

Includes

One (1) LA-80 2-Way RF Antenna Combiner

One (1) Instruction sheet

Highlights

  • Combines two (2) incoming RF signals and combines them into one (1) outgoing antenna source
  • Passive (no power supply needed)
  • Works with 72, 216 or 863 MHz
  • Light weight
  • Mountable
  • Labeled for ease of use

Specs

+Interconnections

Connector/sBNC

+RF

Frequency Range10 to 1000 MHz
Input/s2
Output/s1
Impedance50 Ohm
Power Loss3 dB for every two (2) combined signals
Phase0°
Input RF Power Rating1 W

+Power

Power Supply TypePassive

+Physical

Shipping Weight1 lb. (0.5 kg)
Dimensions (H x W x D)3.25 in. (82 mm) x 1.25 in. (32 mm) x 2.75 in. (69 mm)
Weight4.0 oz. (0.1 kg)

+Environmental

Temperature - Operation-10 °C (14 °F) to +40 °C (104 °F)
Temperature - Storage-55 °C (-67 °F) to +100 °C (212 °F)

+Compliance

SafetyRoHS
