This product is available through authorized resellers.

Request Quote
Overview

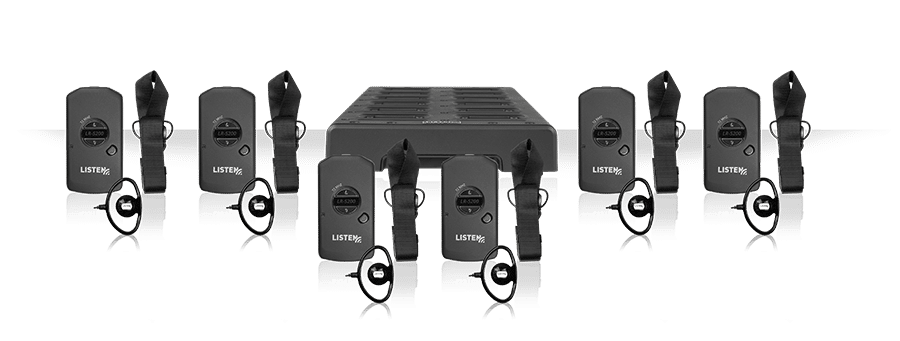

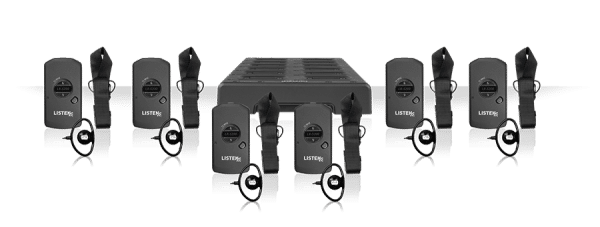

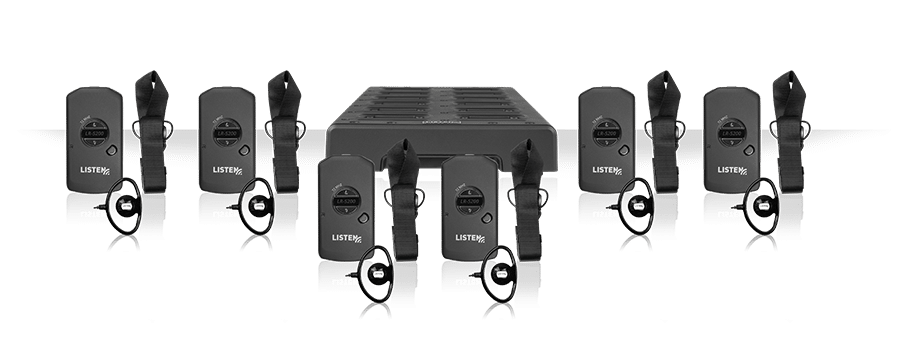

Perfect for any system where multiple channels are needed, our LP-50-072-01 Advanced Intelligent DSP RF Receiver 6-Pack makes it easy to quickly increase your venue’s assistive listening availability.

The LP-50-072-01 includes six (6) of our LR-5200-072 RF receivers, which give your assistive listening users an option for high-performance audio in a compact device with best-in-class pickup and reduced noise. The built-in rechargeable battery technology makes the LR-5200-072 an economical and environmentally friendly choice, reducing the costs of operation and ownership while offering extended use. Each unit features a micro-USB connection which, in addition to being used for quick and convenient battery charging, also allows for fast and simple firmware updates, with free iDSP software setup, and programming.

The integrated neck loop and lanyard with DSP loop driver makes the LR-5200-072 easy to wear and convenient for listeners with T-coil equipped hearing aids. Additionally, the OLED display built in to each receiver provides at-a-glance information including channel status, battery level, and more.

Ensure that everyone can take advantage of your assistive listening system with the LP-50-072-01 Advanced Intelligent DSP RF Receiver 6-Pack.

Includes

Six (6) LR-5200-072-P1 Intelligent DSP RF Receiver Package 1 (72 MHz)*
One (1) LA-381-01 Intelligent 12-Unit Charging Tray (North America)



*The LR-5200-072-P1 comes with an ear phone/neck loop lanyard, universal ear speaker, quick start guide and a non-proprietary field replaceable Lithium-ion battery.

Highlights

  • Includes six (6) high-performance, ultra-sensitive LR-5200-072 receivers, six integrated neck loop/lanyards, six universal ear speakers, and a 12-unit charging tray
  • Compact receiver design—the smallest of its kind—makes it easier to wear, dispense, store, and maintain
  • Advanced rechargeable battery technology reduces costs and provides long-lasting charge for extended use
  • Integrated neck loop and lanyard with DSP loop driver provides an ideal listening experience for users with T-coil-equipped hearing aids
  • OLED display offers at-a-glance information including channel status, battery level, volume, and more
Configurations & Architectural Specs

Configurations

LP-50-072-01 Advanced Intelligent DSP RF Receiver 6-Pack (72 MHz)

CAD file(s)

Used With
Accessories
FAQ
QWhat is the difference between the LR-4200 and the LR-5200?
AThe main difference is that the LR-5200 is programmable with a multi-function Listen button. It gives the user an opportunity to program only the desired channels and lockout the unused channels. This makes it simple to operate for end users that need to select between multiple active channels. The Listen Button can also be used to search for an active channel and lock the receiver on a specific channel.
QWhat is the purpose of Squelch?
AThe purpose of squelch is to mute the audio output of your receiver when the signal from the transmitter is turned off or is too weak to be received. Without squelch you would hear radio noise in your earphone. The squelch function can be programmed to the desired setting.
QHow many LR-5200 receivers can I use in a system?
AAs many as you need, the number is endless.
QHow long does it take to fully charge the LR-5200?
AIt varies dependent on the depletion of the battery. A fully depleted battery will charge in 2.5 hours or less.
QWhat type of battery technology does the LR-5200 use?
AThe LR-5200 uses a non-proprietary Lithium Ion battery.
QWhat is the function of SQ?
ATo reduce noise of the systems, Listen offers a noise reduction technology called ListenSQ™. Both the transmitter and receiver must have SQ on to achieve the desired results. If you are planning to use this product with older Listen systems or equipment not manufactured by Listen, you should disable SQ.
QHow long will the LR-5200 run on a fully charged battery?
AThe LR-5200 will run continuously for 8 hours on a fully charged battery.
Related Products

Product Videos

My overall impression is very positive. The sound is clear and connects well with my telecoils. It is lightweight and comfortable on my neck. I like that I can open the loop to put it on and off my neck so I don't attract attention and I don't mess up my hair (vanity is so important! LOL).

Kathy Evans
