Overview

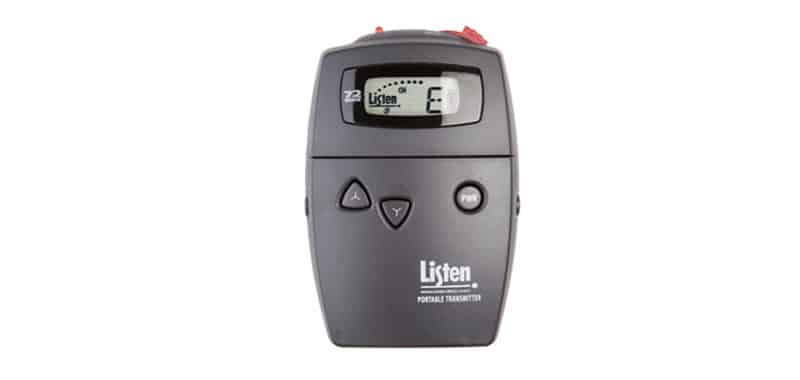

Designed for a variety of portable assistive listening applications, the LT-700 Portable Display RF Transmitter delivers the highest level of performance for all needs. Whether transmitting voice or music, the LT-700 offers a clear, reliable signal for use in environments without an installed assistive listening system. Wireless audio is easily and clearly picked up by any of our Listen Portable receivers, allowing you to meet your needs easily and effectively. From outdoor events to classrooms, factory tours to training spaces and more, the LT-700 is the ideal portable transmitter for nearly any setting.

This product is approved by the FCC for use in the US. Please note that they cannot be used in all countries. Check with your local government or specific regulation with regard to broadcast frequency in your specific country. Note: FCC rules limit the use of this product to assistive listening.

Includes

One (1) LT-700 Portable Display RF Transmitter
One (1) Owner’s manual (72 MHz)

Highlights

  • Transmits up to six (6) channels of audio simultaneously on the 72 MHz band
  • Offers a choice between 57 different channels for flexibility and ease of setup
  • 80 dB signal-to-noise ratio provides superior audio quality
  • 100% digital signal output ensures a reliable connection to any and all receivers in use
  • Compatible with standard AA alkaline and NiMh rechargeable batteries
  • Easy-to-read Look & Listen (TM) LCD display with battery level, selected channel, and programming information
  • Built-in SmartCharge (TM) prevents batteries from overcharging Mic and/or line-level inputs
  • Mute switch
  • Limited lifetime warranty with Listen Technologies’ hassle-free support
Configurations & Architectural Specs

Configurations

LT-700-072 Portable Display RF Transmitter (72 MHz)
LT-700-216 Portable Display RF Transmitter (216 MHz)
LT-700-863 Portable Display RF Transmitter (863 MHz)





Architectural Specs

The portable RF display transmitter shall be capable of broadcasting on 57 channels. The unit shall incorporate a microphone sensitivity switch. The device shall broadcast on both wide and narrow band channels with a SNR of 80 dB or greater. The device shall have an audio frequency response of 50 Hz to 15 KHz, ‘±3 dB at 72 MHz, or of 50 Hz to 10 kHz, ‘±3 dB at 216 MHz. The device will incorporate a mute switch. The battery door shall be capable of being mechanically locked. The device shall incorporate an LCD display that indicates channel, battery level, low battery, battery charging, and RF signal strength. The portable transmitter shall incorporate automatic battery charging circuitry for recharging of NiMH batteries, with the ability to charge via a wall transformer or drop in charging case. The Listen LT-700-072 or LT-700-216 is specified.

Product Specifications
Specification LT-700-072

Audio

Frequency Response 50 Hz - 15 kHz (±3 dB)
Signal-to-Noise Ratio SQ enabled: 80dB; SQ disabled 60dB
Distortion < 2% total harmonic distortion (THD) at 80% deviation
Microphone Input Unbalanced, tip of 3.5 mm connector, -45 dBu nominal input level, -30 dBu maximum, impedance 20k Ohms
Microphone Sensitivity Three position switch: high, middle, and low; 6db increments
Microphone Power 5VDC Bias
Line Input Unbalanced, ring of 3.5mm connector, -10 dbu nominal input level, -3 dbu maximum, impedance 10K ohms

Controls

User Controls Power, mute, channel UP/DOWN, Mic sensitivity, NiMH/alkaline battery, SQ enable/disable
Programming Channel Lock out,Channel lock

Indicators

LCD Channel Designation, lock status, signal strength indication, battery life, RF Power
LEDs Red, illuminated when unit is on. Flashes when batteries are low, or to indicate charging. Flashes when muted

RF

Frequency Range 72.025 - 75.950 MHz
Number of Channels 17 wide band, 40 narrow band
Frequency Accuracy ± .005% stability 32 to 122º (0 to 50ºC)
Antenna Type Microphone cable
Transmitter Stability 50 PPM
Transmission Range From 0 to 150 ft. (45.7 m)
Antenna Connector 3.5 mm connector
Output Power Less than 10mW
Number of Simultaneous Transmitters 6

Power

Power Supply I/P 120VAC; O/P 7.5VDC 250 mA; Drop in contact points for use with charging cases. Power supply not included (LA-208)
Power Supply Connector 2.3mm OD by 0.7mm ID, barrel type connector 7.5 VDC, center positive < 250mA. Drop in contact points for use with Listen charging cases
Battery Type Two AA batteries, alkaline or NiMH
Battery Life 15 hours alkaline (LA-361), 15 hours NiMH rechargeable (LA-362)
Battery Charging Time Fully automatic, 13 hours
Compliance RoHS, WEEE, UL, PSE, CE, CUL, TUV, CB compliant

Physical

Width 3.00 in. (7.6 cm)
Height 5.00 in. (13.0 cm)
Depth 1.00 in. (2.5 cm)
Color Dark Grey with white silk screening
Unit Weight with Batteries 5.8 oz. (164 g)
Shipping Weight 1.0 lbs. (0.5 kg)
Weight 3.9 oz. (111 g)
Door Manually lockable, controls accessible through doors

Environmental

Temperature - Operation 14 to 104º F (-10 to 40º C)
Temperature - Storage -4 to 122° F (-20 to 50° C)
Relative Humidity 0 to 95% relative humidity, non-condensing

Compliance

RF FCC Part 15, Industry Canada
Requirements
Used With
Accessories
FAQ
Q Does the LT-700 provide phantom power?
A Yes, 3VDC
Q Will the LT-700 portable transmitter work for two-way communication?
A No. However, Listen does not recommend a two-way system for tour group applications. A two-way system means that everyone hears every sniffle, cough, comment etc. The tour guide loses control of the tour and the tour becomes unproductive.
Q What is the range of the LT-700 portable transmitter?
A Line of site up to 150 ft. (45.7 m) for 216 MHz.
Q Can I use a line source with the portable transmitter?
A Yes. Listen offers the LA-263, a mic/line input cable for this use.
Q How long do the batteries last on the portable transmitter?
A Alkaline batteries last 15 hours; NiMH rechargeable batteries last 15 hours (72 MHz & 216 MHz).
Q Can I have multiple LPT-T216 transmitters operating in one facility?
A Yes. Multiple Channels and power settings enable multiple LPT-T216 transmitters to operate within the same facility even in adjacent rooms. However, when multiple transmitters are being used, they will need to transmit on different channels or have adequate distance between the transmitters so they do not interfere with each other. For further information, please refer to the quick setup guide.
