Overview

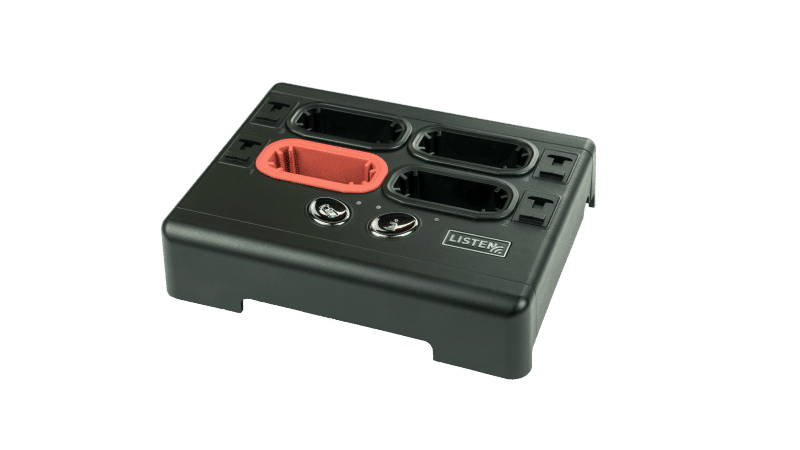

The LA-482 Docking Station gives you a simple and convenient way to charge, store, and program ListenTALK transceivers and receivers. Designed specifically for ListenTALK devices, the LA-482 Docking Station can accommodate up to four (4) individual transceivers and/or receivers. Each charging slot features a tension lock that ensures secure charging connectivity, and each slot can be used to store ID cards or other items that are exchanged for and returned when the receiver is not in use. The LA-482 can be mounted in a variety of ways as well depending on your system requirements. The station can be securely mounted to a wall, in a drawer, on a rack, or attached to a tabletop.

Includes

One (1) LA-482 ListenTALK Docking Station 4
One (1) LA-210 Power Supply
One (1) LPT-A110 USB Computer Interface Cable

Highlights

  • Charges, stores, and programs up to 4 ListenTALK transceivers and/or receivers
  • Each charging slot securely locks and holds units for a reliable connection each time
  • Easily downloaded: mounted in a variety of ways depending on your installation and needs
Configurations & Architectural Specs

Configurations

LA-482-01 Docking Station 4 (North America)*

LA-482-02 Docking Station 4 (UK)*

LA-482-03 Docking Station 4 (Europe)*

LA-482-04 Docking Station 4 (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.

Architectural Specs

The Docking Station 4 shall be capable of charging, programming and storing up to 4 ListenTALK products. The unit’s power supply shall accept an input voltage of 100 to 240AC, 50/60 H and shall deliver 12 VDC, 5 A at 60 watts to the case. The unit shall have a USB type B connection allowing programming via ListenTALK Software Suite. The unit shall have a pairing button allowing easy pairing and group formation. The unit shall have a status button allowing docked device status to be checked while remaining in the docking station pockets. The unit shall have equivalent compliance with UL, CE, RCM, RoHS and WEEE.

The LA-482 Docking Station 4 is specified.

Product Specifications
Specification LA-482

Physical

Tray Color Black, Chrome Buttons, Red Leader Pocket
Dimensions (H x W x D) 50 x 192 x 150 mm (1.97 x 7.56 x 5.89 in.)
Unit Capacity 4 Units
Unit Weight .66 kg (1.45 lbs.)
Shipping Weight 1.52 kg (3.4 lbs.)

Power

Power Supply Input 100 - 240VAC, 50-60 Hz
Power Supply Output 12 VDC, 4.0 A, 48 W
Power Supply Connector 5.5 mm (.22 in.) OD x 2.3 mm (.09 in.) ID, barrel type
Power Cord 182.9 cm (72 in.) Input Power Cord, 109.3 cm (43 in.) Output Cord

Interconnections

Connection/s USB type B
Connection/s Power

Compliance

Standards UL, CE, RCM, RoHS, WEEE

* Specifications subject to change without notice.
