Overview

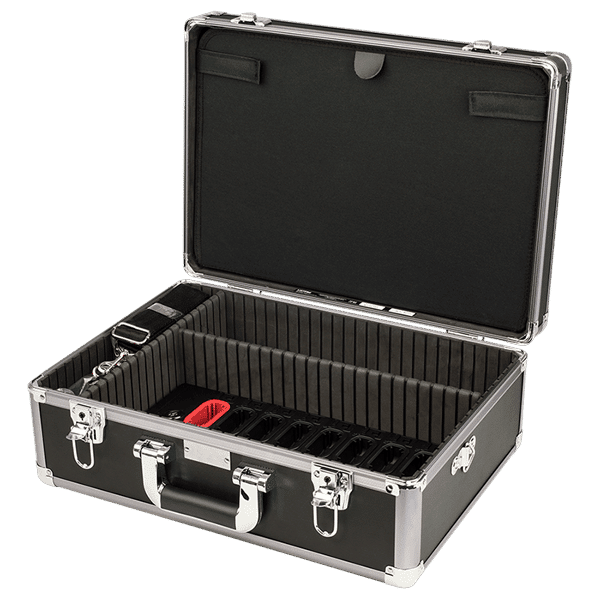

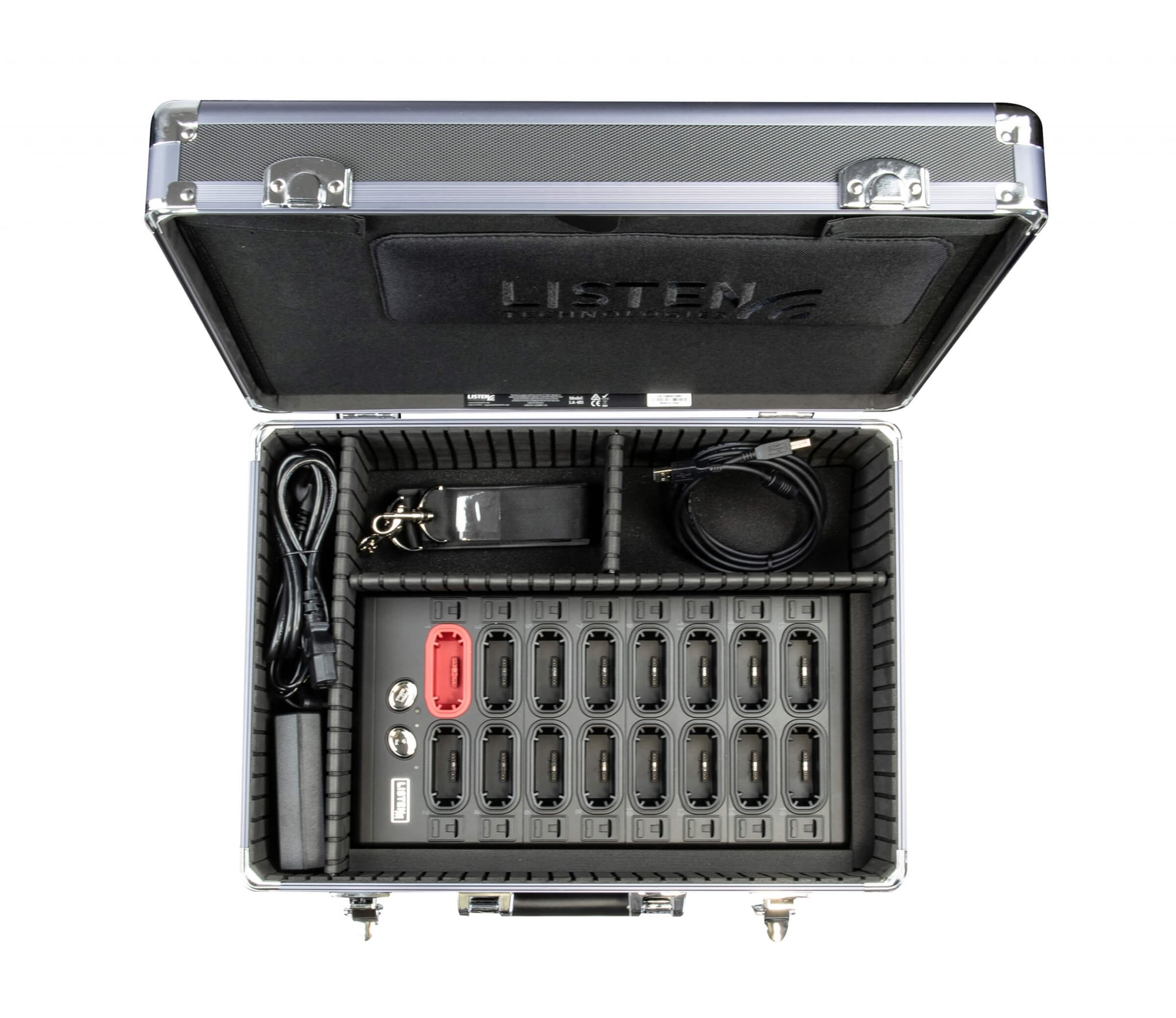

The LA-481 docking station case from Listen Technologies offers the charging, storage, and programming capabilities of the LA-480 with the added convenience and portability of a secure carrying case. Designed specifically for ListenTALK devices, the LA-481 Docking Station case can accommodate as many as sixteen (16) individual transceivers, ideal for large-scale systems or for allowing your system to grow to meet the needs of your venue. Each charging slot features a tension lock that ensures secure charging connectivity, and each slot can be used to store ID cards or other items that are exchanged for and returned when the receiver is not in use. In addition to slots for each unit, the case also features two large pockets to store earphones (prevents tangling) and other items, as well as durable latches and an included shoulder strap for convenient transport. (NOTE: Case not suitable as a shipping container)

Visit ListenTALK.com to learn more!

Includes

One (1) LA-481 Docking Station Case 16

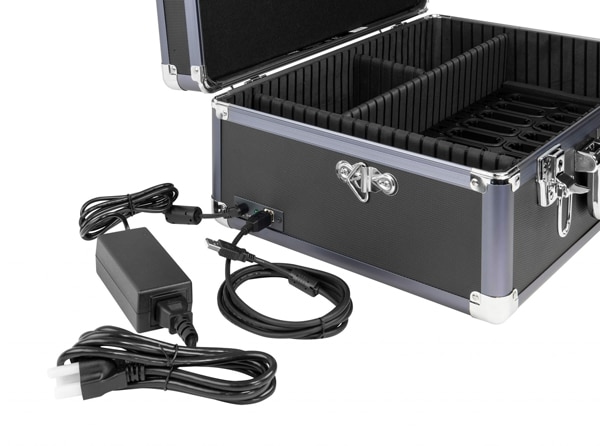

One (1) LA-210 Power Supply
One (1) LPT-A110 USB Computer Interface Cable

Highlights

  • Specifically designed for ListenTALK units
  • Charges, stores, programs, and transports up to 16 transceivers
  • Secure charging slots ensure a direct connection
Configurations & Architectural Specs

Configurations

LA-481-01 Docking Station Case 16 (North America)*

LA-481-02 Docking Station Case (UK)*

LA-481-03 Docking Station Case 16 (Europe)*

LA-481-04 Docking Station Case 16 (Australia)*

*01, 02, 03, and 04 designation refers to international plug type (type B, G, C, and I) for the power supply.

Architectural Specs

The Docking Station Case 16 shall be capable of transporting, charging, programming and storing up to 16 ListenTALK products. The unit’s power supply shall accept an input voltage of 100 to 240AC, 50/60 H and shall deliver 12 VDC, 5 A at 60 watts to the case. The unit shall have a USB type B connection allowing programming via ListenTALK Software Suite. The unit shall have a pairing button allowing easy pairing and group formation. The unit shall have a status button allowing docked device status to be checked while remaining in the docking station pockets. The unit shall be capable of being locked. The unit shall have equivalent compliance with UL, CE, RCM and RoHS.

The LA-481 Docking Station Case 16 is specified.

Product Specifications
Specification LA-481

Physical

Case Color Gray & Chrome
Tray Color Black, Chrome Buttons, Red Leader Pocket
Dimensions (H x W x D) 190 x 350 x 465 mm (7.48 x 13.78 x 18.31 in.)
Unit Capacity 16 Units
Unit Weight 5.13 kg (11.3 lbs.)
Shipping Weight 5.95 kg (13.1 lbs.)

Power

Power Supply Input 100-240VAC, 50-60 Hz
Power Supply Output 12 VDC, 4.0 A, 48 W
Power Supply Connector 5.5 mm (.22 in.) OD x 2.3 mm (.09 in.) ID, barrel type
Power Cord 182.9 cm (72 in.) Input Power Cord, 109.3 cm (43 in.) Output Cord

Interconnections

Connection/s USB type B
Connection/s Power

Compliance

Standards UL, CE, RCM, RoHS

* Specifications subject to change without notice.
