Sale!

ListenTALK Receiver Pro

Item:LKR-11-A0b Price: $214.40B-STOCK

The LKR-11 ListenTALK Receiver Pro is a one-way device designed for those participants that only need to listen to ListenTALK group conversations.  The LKR -11 is equipped with Listen Technologies’ ergonomic design, near field communications, encryption technology for added security, easy to use volume control and quick visible status via the OLED display.  ListenTALK Receiver Pro is the simplest option for one-way communication among groups of two or more people in any environment. In addition to the included Listen Ear Speaker, ListenTALK can be used with standard smartphone earbuds or Listen Technologies headphones.

See Architectural & Engineering Specs

This product is available through authorized resellers.

Request Quote

In stock

Includes

One (1) LKR-11 ListenTALK Receiver Pro
One (1) LA-365 Rechargeable Li-ion Battery
One (1) LA-401 Universal Ear Speaker

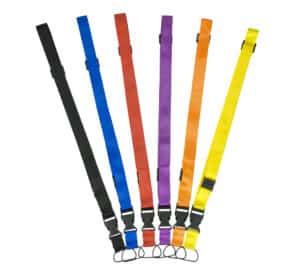

One (1) LA-445-BK Breakaway Lanyard

Highlights

  • Fast and simple one-way communication
  • Simple up and down volume control
  • Encryption technology for added security
  • Compatible with standard earbuds and Listen Technologies headphones
  • Long-lasting lithium-ion rechargeable batteries
  • Optional Alkaline Battery Compartment

Specs

+Physical

Dimensions (H x W x D) with Belt Clip10 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.)
Unit Dimensions (H x W x D)10 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.)
Unit Weight79 g (2.79 oz.)
Shipping Weight206 g (7.20 oz) with 454 g (1.0 lbs.) minimum
Enclosure materialPC ABS Plastic
ColorBlack, Chrome Buttons
IndicatorsDisplay- 64 x 128 OLED, Variable brightness
LED- RED/White multifunction (Mute, Charge Status)
User ControlsVolume up, Volume Down, Power/Status
ProgrammingVia software and USB port on unit or via software and USB port on Docking Station
ConnectionsHeadset- 3.5mm TRRS, CTIA complaint
USB- Micro USB, Control and Charging
Charger- 4 Contact, Control and Charging

+Audio

Headphone OutputSpeaker Load- 16 - 32 ohm load
Max Output Power- 67 mW, 16 ohm load, Threshold of Clipping
SystemFrequency Response- 40 Hz to 15 kHz +/- 3dB, 22kHz low pass filter
SNR- 70 dB, A- weighted, Threshold of Clipping
THD- 0.5% @ 1kHz, 22kHz low pass enabled

+Radio

Operating Frequency1920 to 1930 MHz - North America
1880 to 1900 MHz - Europe, Australia
Typical RangeIndoor 100 m, Outdoor 200 m, depending upon conditions - North America
Indoor 150 m, Outdoor 300 m, depending upon conditions - Europe, Australia
ModulationGFSK - FHSS
TDD/TDMA/DCA
SecuritySubscription- 40 bit (Pin Free)
Authentication- 32 bit
Encryption- 64 bit
NFC Frequency (Near Field Communications)13.56 MHz

+Power and Battery Management

Battery TypeLithium – ion, rechargeable non-proprietary removable, 1200 mAh
Optional- 3 AAA Battery Compartment
Typical Operating TimeLi-ion - 12 Hours
AAA – 7 Hours
Typical Charge time4 Hours
Power Save ModesPower down on loss of signal
Power down on disconnection of headphone (1 min)
Power down on charging

+Environmental

TemperatureOperation- -10 °C (14 °F) to 40 °C (+104 °F)
Storage- -20 °C (-4 °F) to 50 °C (+122 °F)
Relative Humidity0 to 95% relative humidity, non-condensing

+Compliance

StandardsFCC part 15, ICS-03, CE, RCM, RoHS, WEEE
* Specifications subject to change without notice.

Accessories

FAQs

+What is the range of ListenTALK units?

ListenTALK (North America Mode) units have a range of up to 200 m depending upon conditions, (Europe/Australia Mode) units have a range of up to 300 m depending upon conditions. These are "line of sight" specifications.

+ListenTALK can have up to 20 groups in "one area". What does "one area" consist of?

One area consists of the typical range, which is 100 m indoors and 200 m outdoors depending on conditions (North America) and 150 m indoors and 300 m outdoors depending on conditions. (Europe version)
